66

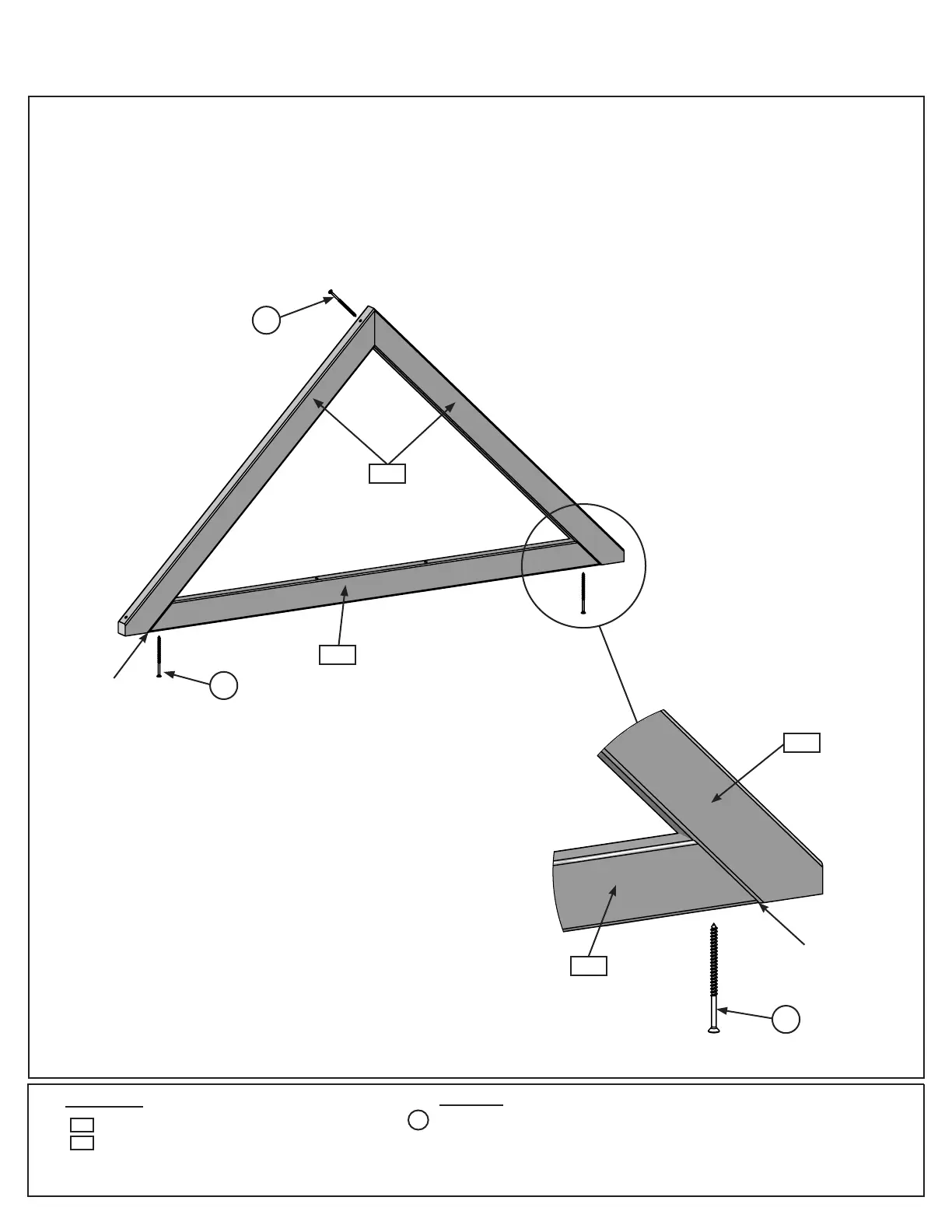

Step 26: Gable End Assembly
Part 1
2X Roof End
Roof Support
3X #8 x 3" Wood Screw
Build 4 Gable End assemblies
Flush
Flush
S3
S3
S3
Hardware
S3
12 x #8 x 2-1/2” Wood Screw
Wood Parts
Fig. 26.1
Fig. 26.2
2852
2852
2853
2853
8 x Roof End 1 x 2 x 29-3/4”
4 x Roof Support 1 x 2 x 37-1/4”
2852
2853
A: Attach one (2852) Roof End to a second (2852) Roof End at peak using 1 (S3) #8 x 2-1/2” Wood Screw.
(g. 26.1)
B: Place 1 (2853) Roof Support between the Roof Ends so the bottom of the Roof Support is ush with the
bottoms of each Roof End. Attach using 2 (S3) #8 x 2-1/2” Wood Screws. (g. 26.1 and 26.2)
C: Repeat step A and B to make 4 assemblies.
