Components
Issue: 08/2012
X
Z In this chapter you will get an overview of the drive components.
Z All work on drives should be carried out by experts.

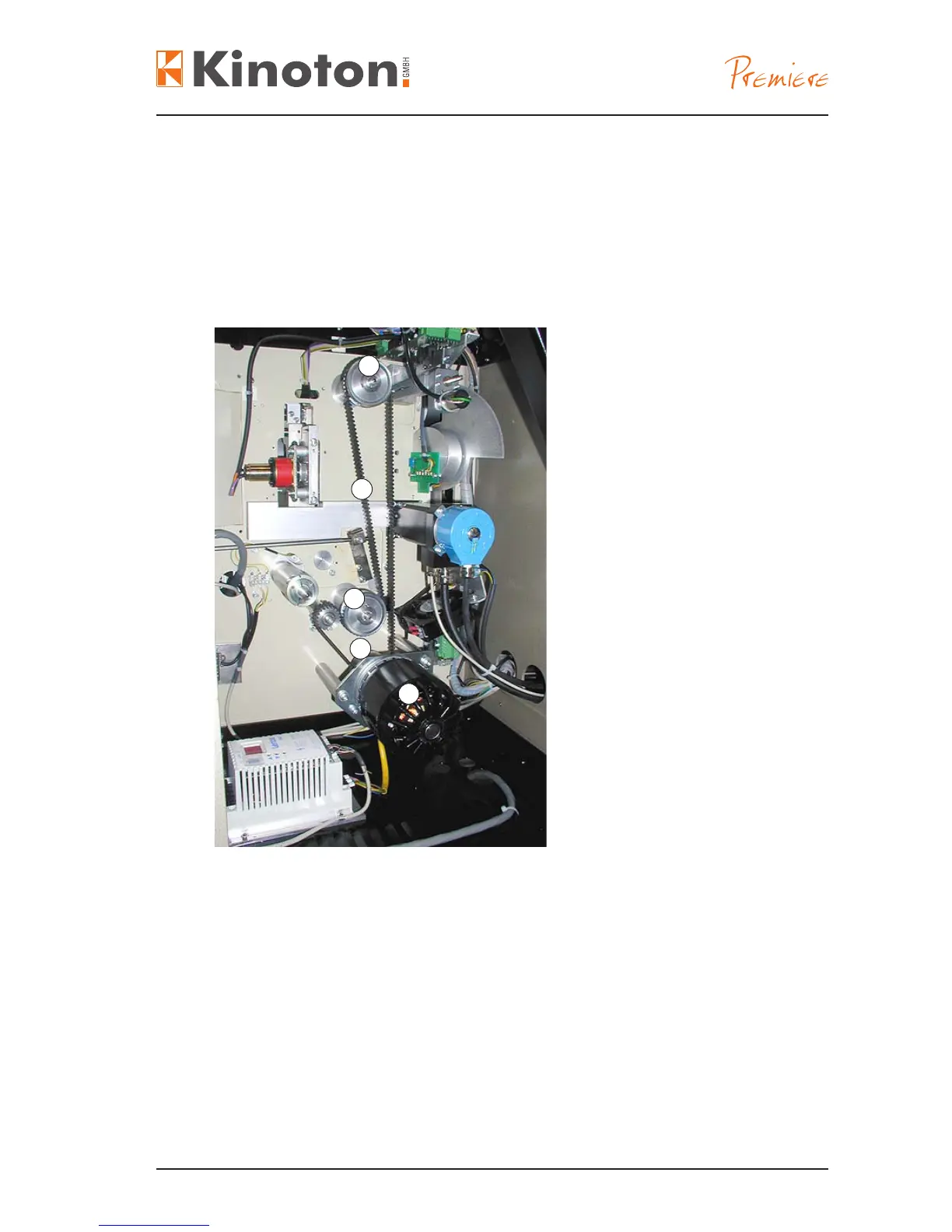

Main drive motor
Á Main drive encoder
 Bottom sprocket shaft and gear
à SuperTorque drive belt
Ä Feed sprocket shaft and gear
Via gears and the belt the following shafts are driven by the main drive motor :
» Encoder shaft Á
» Feed sprocket Ä
» Bottom sprocket Â
» Take-up friction shaft (option)
The main drive encoder Á is directly positioned behind the main drive motor on their
common shaft.
1
2
3
4
5
