Issue: 08/2012

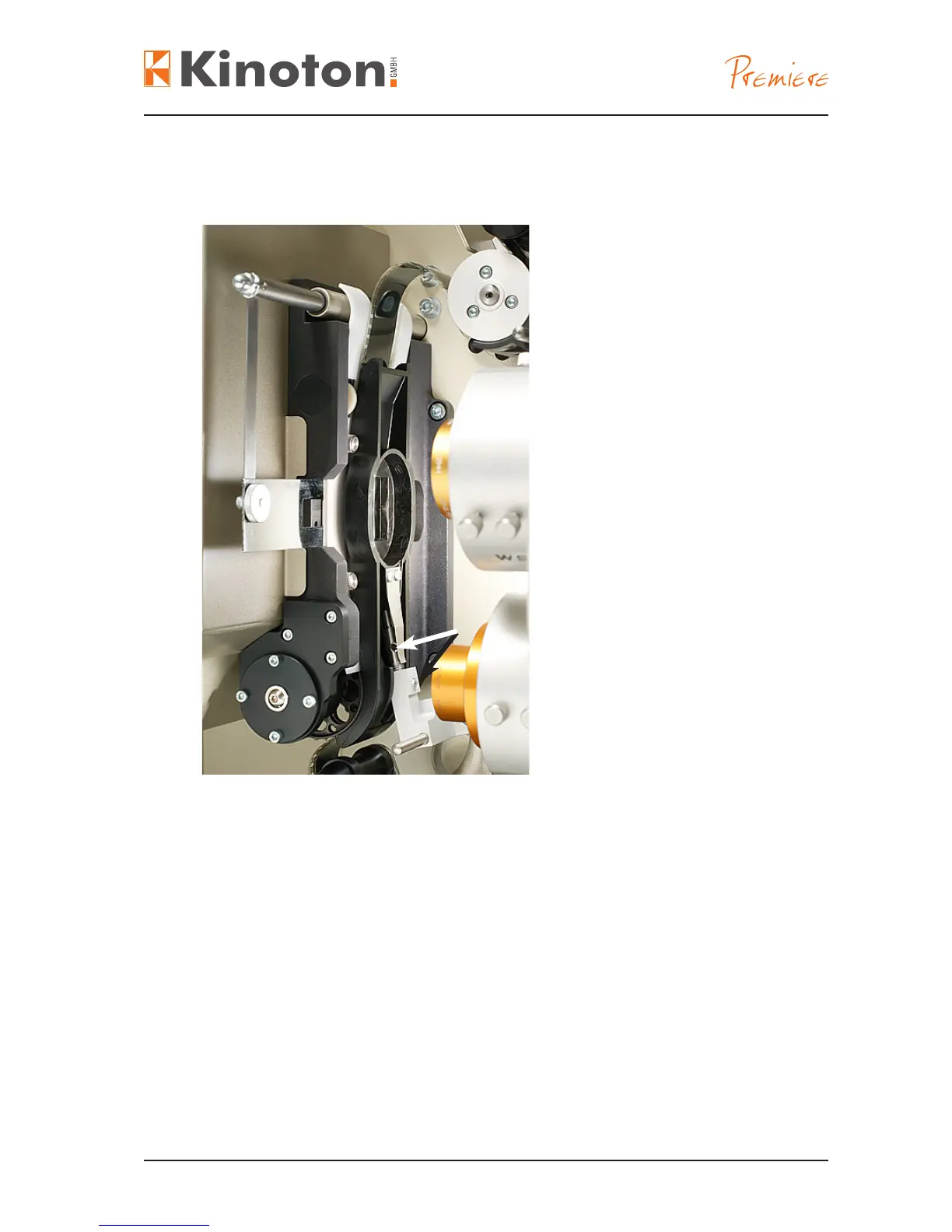

The lm pressure skate has to be adjusted so that it rides perfectly on the lm gate and
the intermittent sprocket.
• Loosen the setscrew (black arrow).
• Insert 2 superimposed lm layers into the lm gate.
• Screw the ball pin (white arrow) out or in to the desired length - the skate should just
not be moved vertically. Use an Allen wrench to rotate it.
$Without any lm layers in the lm gate the skate must have clear tolerance.
• When the adjustment is adjusted correctly fasten the setscrew again.
Repair and Adjustments
