» The xenon unit consists of: reector with holder, xenon bulb support and adjusting
units, mounting plate with starter gap, ignition unit, stabilizing magnet with holder
and fan.
» Two different xenon units for the following xenon lamps are available:
- 1,000 W to 2,000 W
- 2,000 W to 7,000 W
X
Z The xenon unit is factory-set positioned at the back of the lamphouse.
Z The adjustment of the optical axis has to be carried out by authorised experts or
service personnel from KINOTON.
Z The small xenon unit can be equipped with xenon bulbs 1,000 to 2,000 W which
will be easily screwed in.
Z The big xenon unit can be equipped with xenon bulbs 2,000 to 7,000 W. To install
them an adapter has to be put on the cathode base. The bulb with the attached
adapter will be fastened by turning an Allen screw from the lamphouse outside.

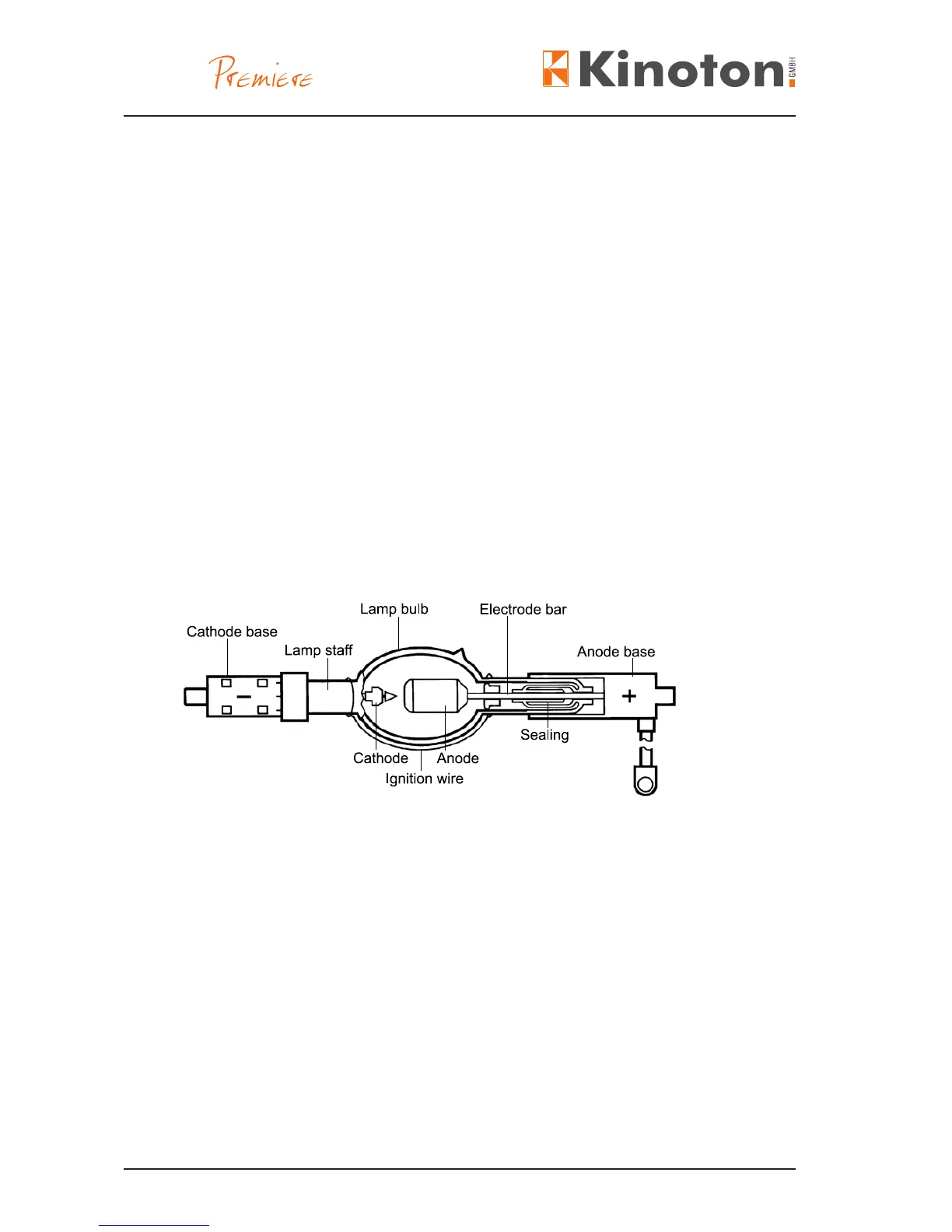

The lamp bulb out of quartz glass encloses the electrode system and the xenon gas.
The discharge arc burns between the anode (+) and the cathode (-).
The cathode delivers the electrons. The anode takes off the electrons. The resulting
brake energy will be transformed into heat energy and then reected. The discharge
arc (light arc) is stabilized through a magnet.
X
Changing and disposing of the xenon bulb, see chapter 6.4.13.
