Components
Issue: 08/2012
1
2
8
12
9
3
10
4
6
5
7
11

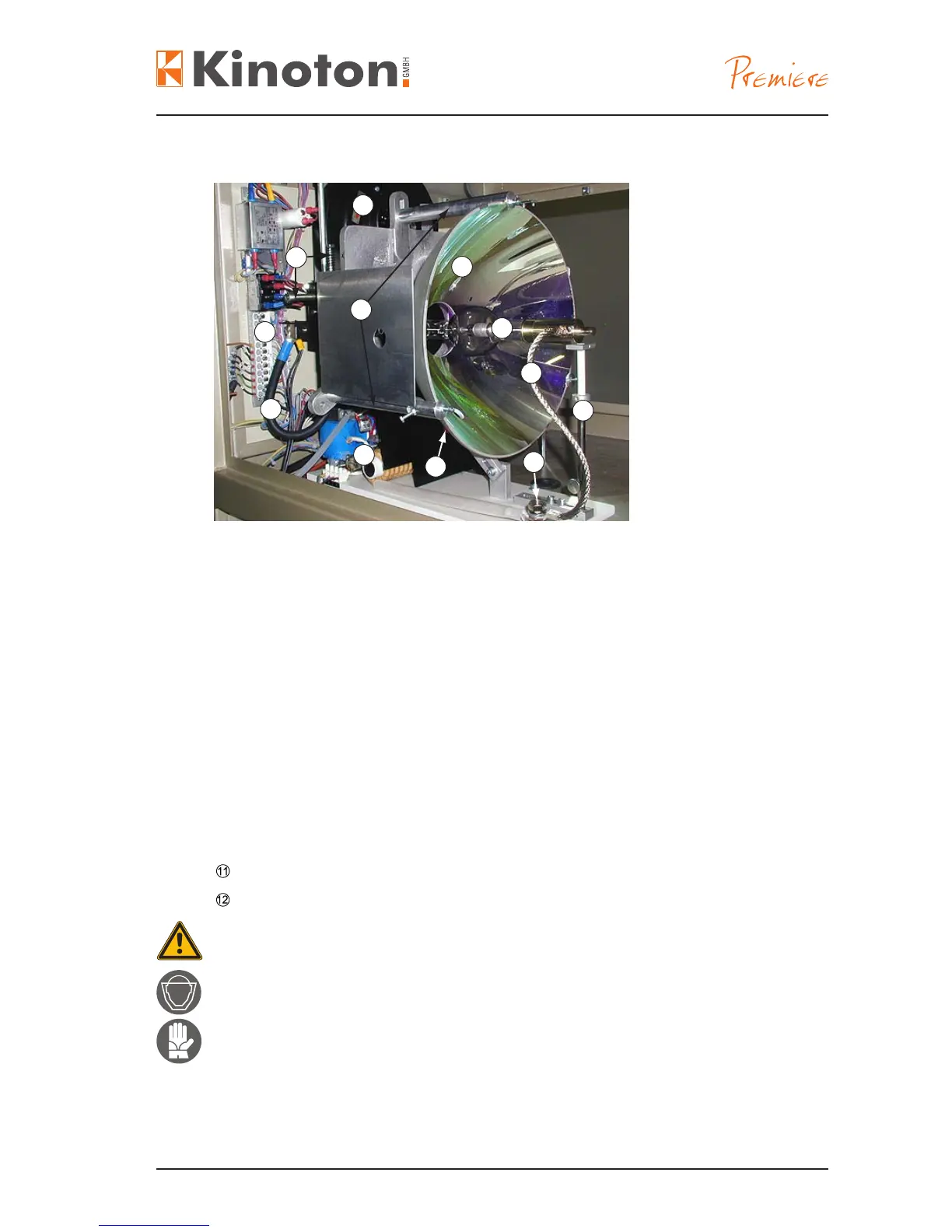

Xenon bulb
Á Anode (+) cable
 Anode connecting bolt
à Bulb support (up to 7,000 W only)
Ä Mirror
Å Mirror holders and protection shield
Stabilizing magnet
Ignition base
Cathode (-) cable
Terminal strip
Mirror adjustment screws
Fan
S The xenon lamp can only be ignited, when the lamphouse door is closed. If you
open the door during the operation the door switch will be activated and the xenon
lamp will turn off immediately.
S You can suffer hurts when broken glass is ying around (xenon bulb has an inner
pressure of 8 to 10 bar in cold condition and about 30 bar in hot condition).
Because of that you have to wear a protective suit, protective gloves and a face/
neck protection during all works with lamphouse open.
