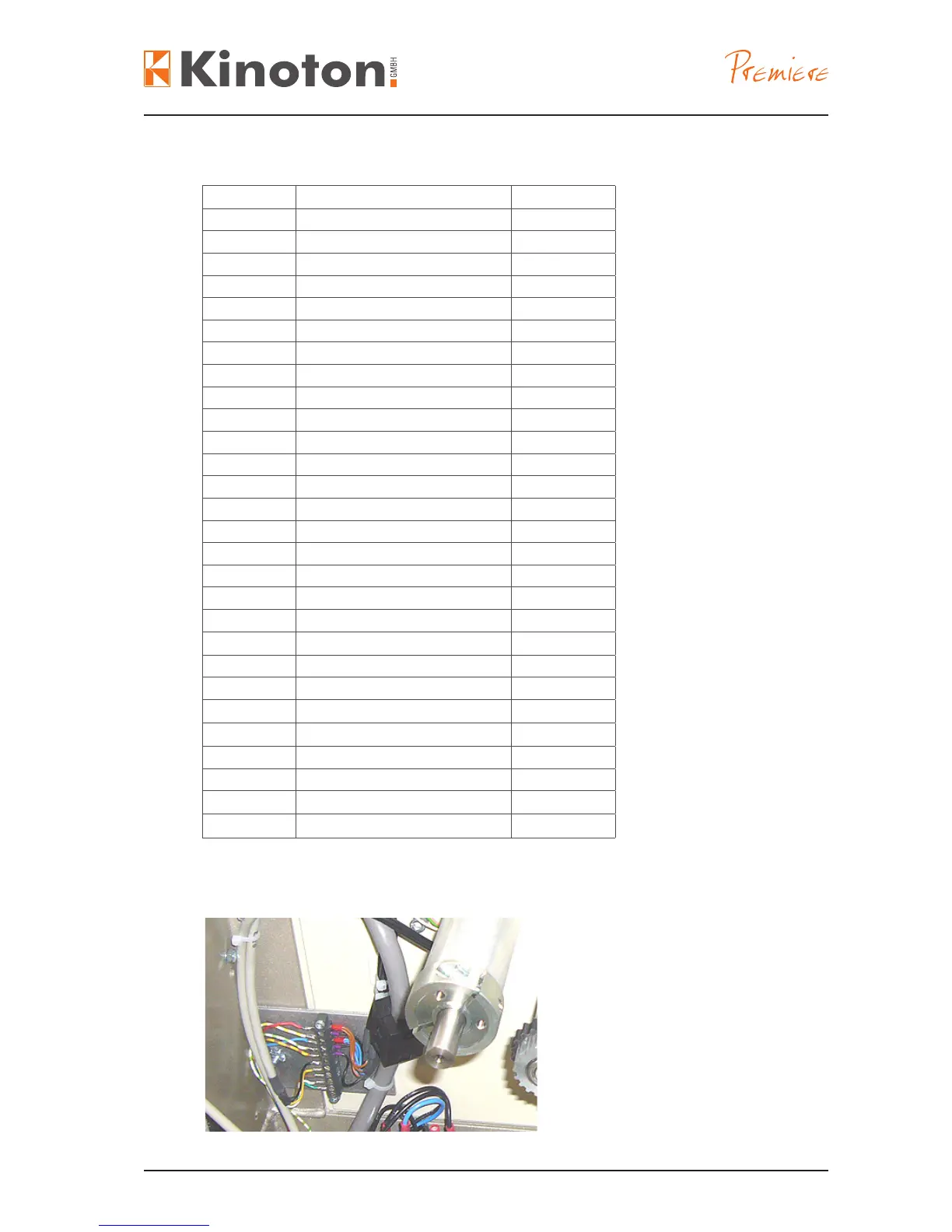

Kinoton FP 30 E Premiere - EMK 1 (Option); Sound Output on 8-Pole Terminal Strip


Issue: 08/2012

 
  
 Remote START pink
 Remote START white
 Emergency brown/white
 Emergency brown
 Stage light OFF blue/white
 Stage light ON green
 Stage light STOP green/white
 Stage light COM orange
 House light for slide show violet/white
 House light OFF violet
 House light HALF white
 House light ON pink
 Masking WS brown
 House light COM grey
 Masking CS green/white
 Masking WS violet/white
 Masking NS grey/white
 Masking STOP black/white
 Masking COM brown/white
 Curtain CLOSE
yellow
 Curtain OPEN yellow/white
 Curtain STOP black/white
 Curtain COM
black
 Xenon + 24 V
red
 Xenon state brown
 Xenon 0 V blue
 Sensor 1
black
 Reserve
 
solar cell connection
solar cell connection
solar cell connection
shield
sound output left - (yellow)
sound output left + (brown)
sound output right - (white)
sound output right + (green)
Terminal Connections
