Components
Issue: 08/2012
Projection equipment, sound devices, frictions or/and set of guide rollers are mounted
on the housing.
Drives, motors, the whole electrical equipment and automation systems are mounted
in projector housing.

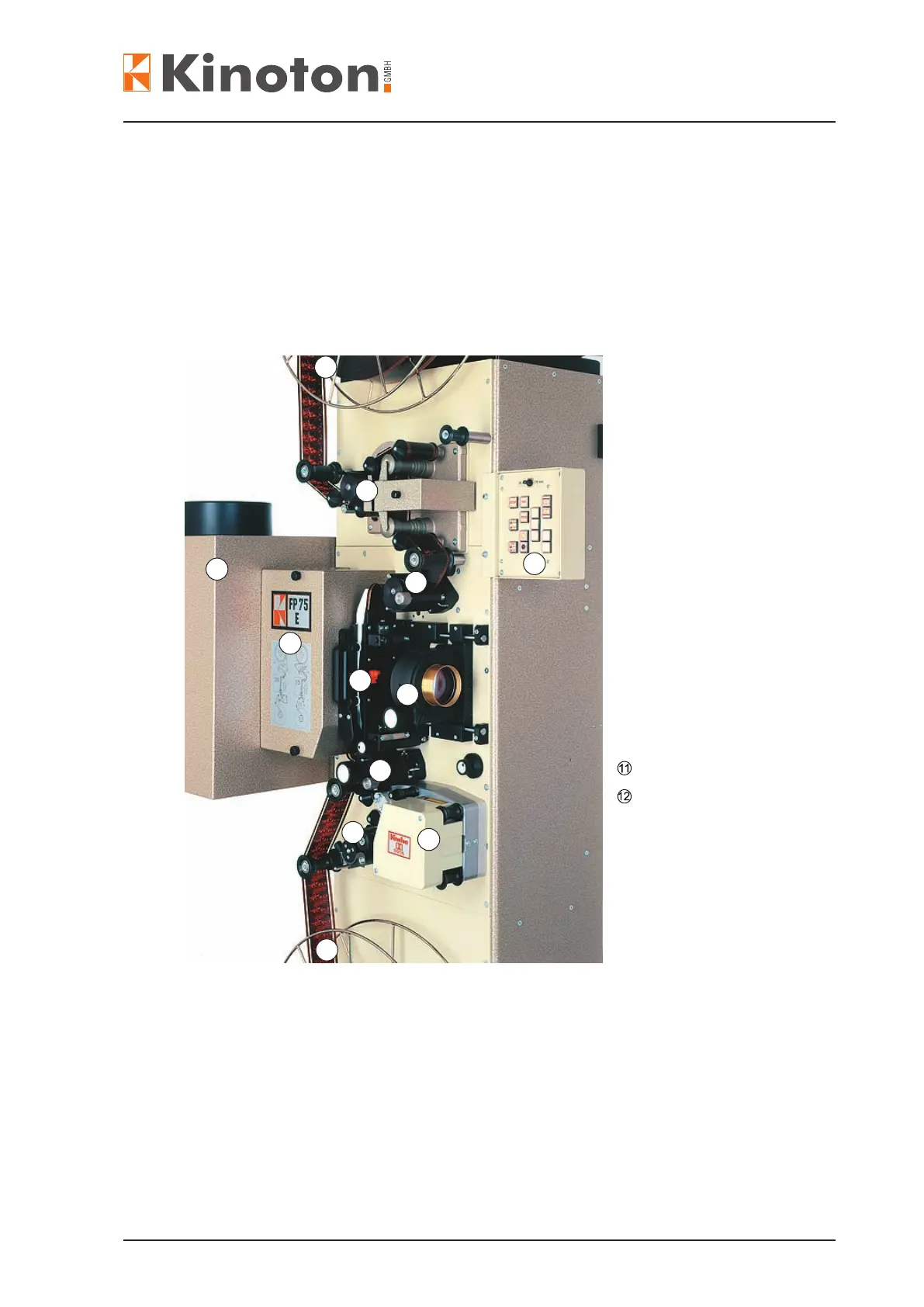

Take-off/upper lm spool
Á Magnetic sound
device (option)
 Combined feed sprocket
à Shutter housing
Ä Film gate and skate
Å Lens holder
Æ Combined bottom /
holdback sprocket
Reverse-scan sound
device
35 mm bottom sprocket
Take-up/lower lm spool
Operating panel
Lamphouse
6
2
1
9
8
7
5
4
3
10
11
12
