Sound reproducer Lubricate the pressure roller ball bearings with a drop of
Cardan oil, type 8657.
Lubricate the sound drum shaft with 1 drop of Esso
universal oil.
X
Z Cardan oil is very pasty therefore the ball bearings will be retarded for a proper lm
run. By getting move the guide roller with one nger, the roller has to stop at last
after a half of turn. Otherwise you have to clean the bearing and then ll it with
Cardan oil.
Z You must not use any oil or grease!
Water cooling Empty and clean and rell coolant. Check whether pump
and refrigeration system are sealed and working properly.

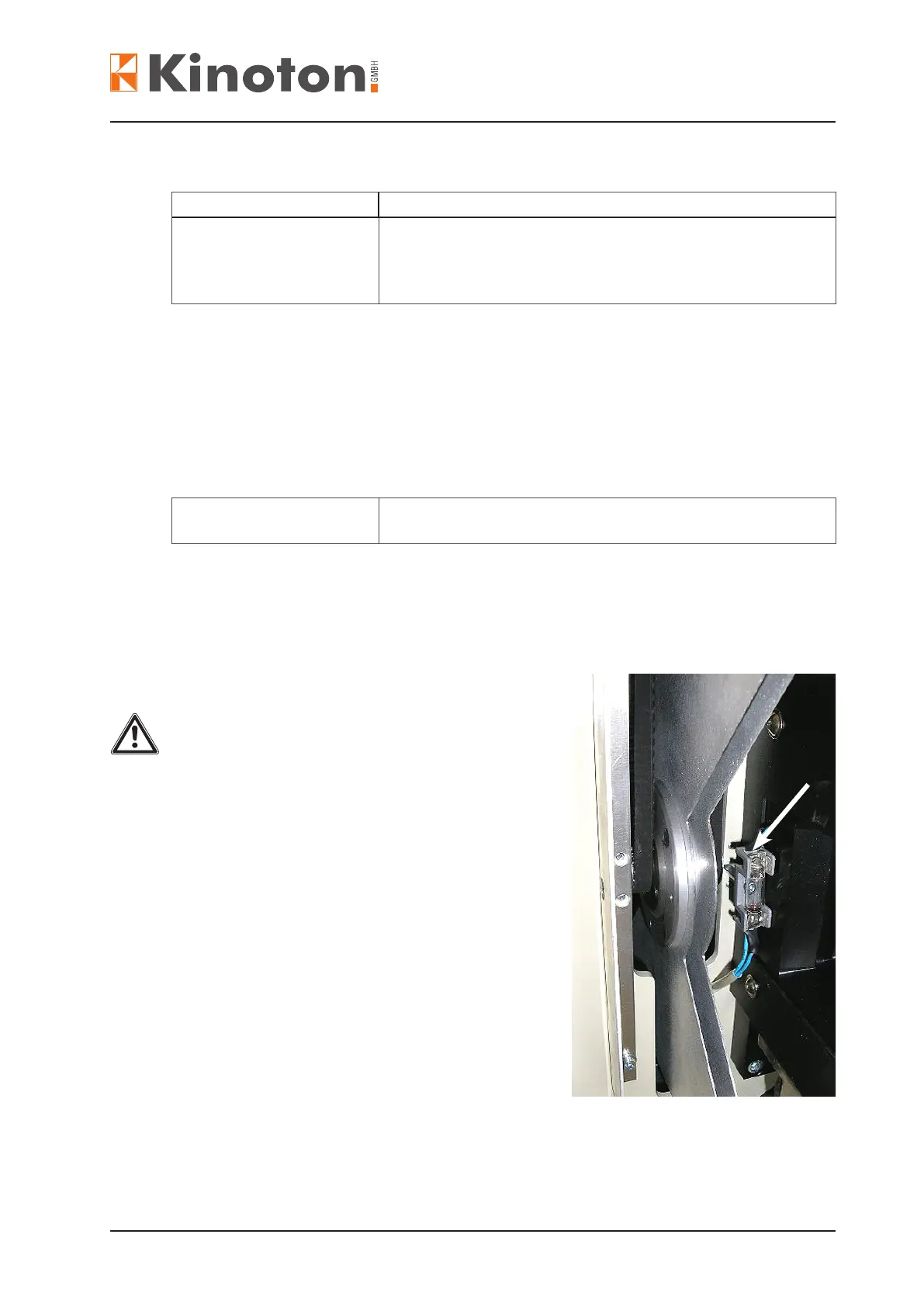

Before opening the shutter housing, wait until the
shutter stands still!
• Remove the shutter housing.
• Put screw driver behind the lamp socket (arrow)
and lift the lamp out of the socket.
• Push the new pilot lamp into the socket and
close shutter housing.
•
