Components
Issue: 08/2012

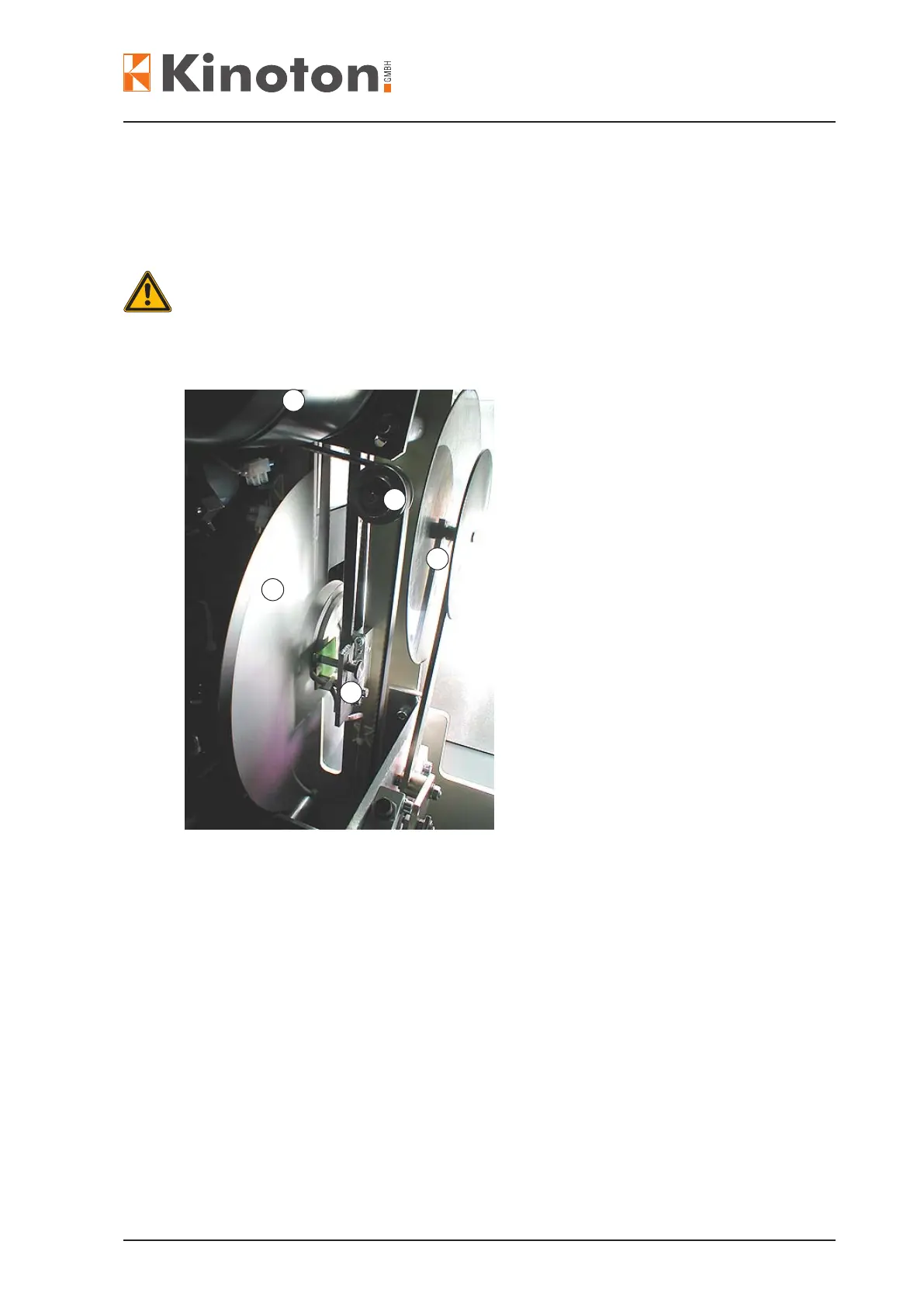

The shutter is rotating as a opposed double shutter, which interrupts the projection
light during lm transportation one time and one time during each picture stands still.
(48 interrupts/second with 24 frames/second)
S Only remove or replace the shutter housing when the projector is off.
S Do not deactivate the door switches. Because if you touch the rotating shutter
serious injuring can be the consequence.
2
1
3
5
4
Shutter
Á Shutter drive
 Shutter sensor board
à Shutter drive motor
Ä Dowser
X
The shutter is factory-set. Adjustments should only be carried out by service
personnel.
