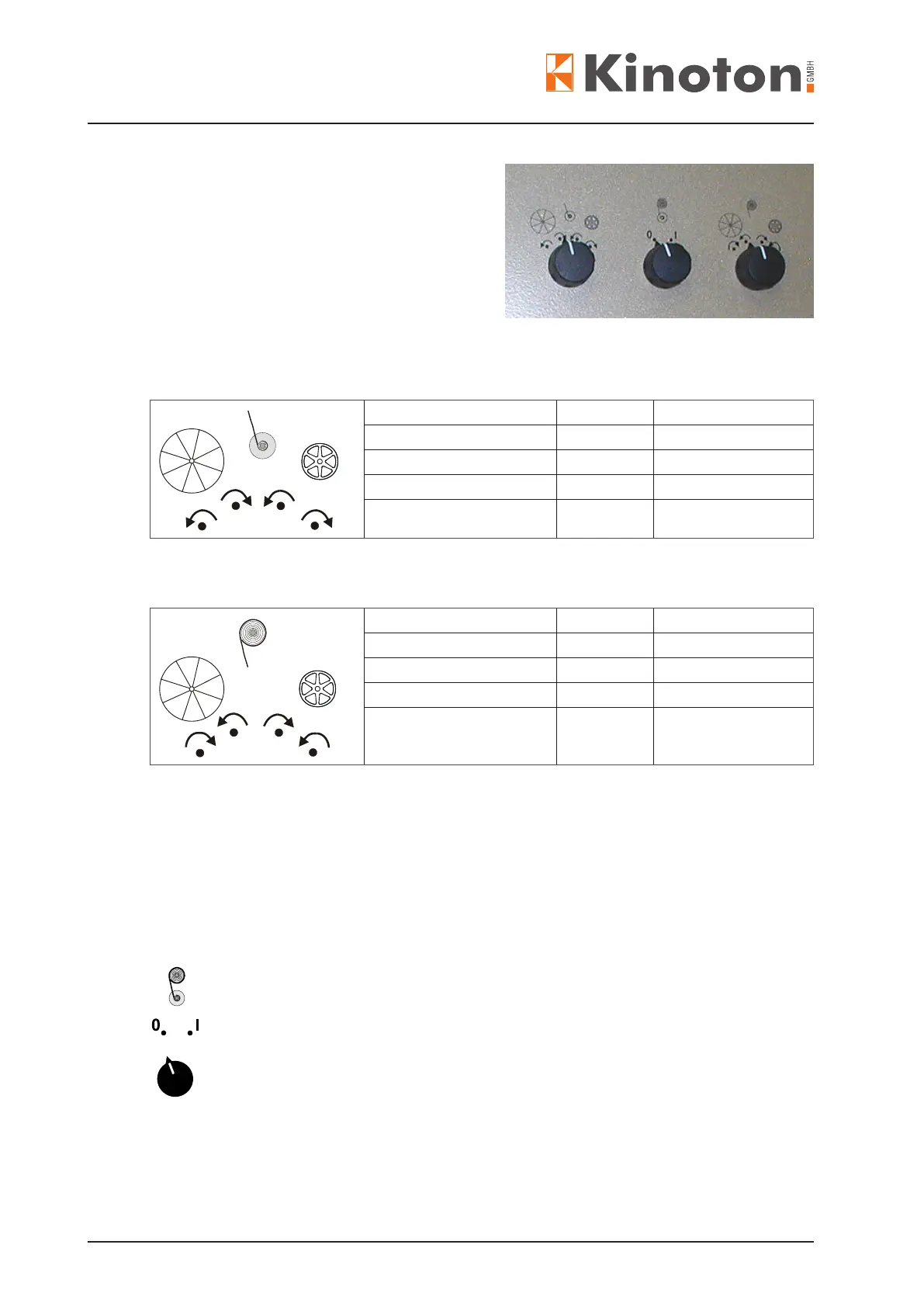

Depending on your demands, the size of
frictions can vary. Generally you can select
between a large (e. g. 2000 m) and a small
(e. g. 600 m) friction.
Complete left Large Left
Half left Large Right
Half right Small Left
Complete right Small Right
Complete left Large Right
Half left Large Left
Half right Small Right
Complete right Small Left
X
Z The adjusted turning direction (left or right) is that direction which is necessary to
tension the standstill lm.
Z Always adjust the turning direction for take-off and take-up friction in a way that lm
is stressed.
Switch in position “0”: friction motors are switched off
Switch in position “I”: friction motors are switched on
