Kinoton FP 75 E - Sound Devices; Reverse-Scan Sound Device (Analog and Optional DOLBY Digital; Upgradeable); 3.3.1.1 Components


Components
Issue: 08/2012

 
 
Reverse-scan sound devices scan the sound track (analog and optional DOLBY
digital) on the lm via red LEDs. An only analog sound device is upgradeable with
DOLBY digital.
X 
Z The reverse scan sound head is delivered factory checked and adjusted.
Z Optional cue sensors for reading metal foil tapes can be mounted in the reverse
scan sound device.
 
3
5
4
2
4
6
1

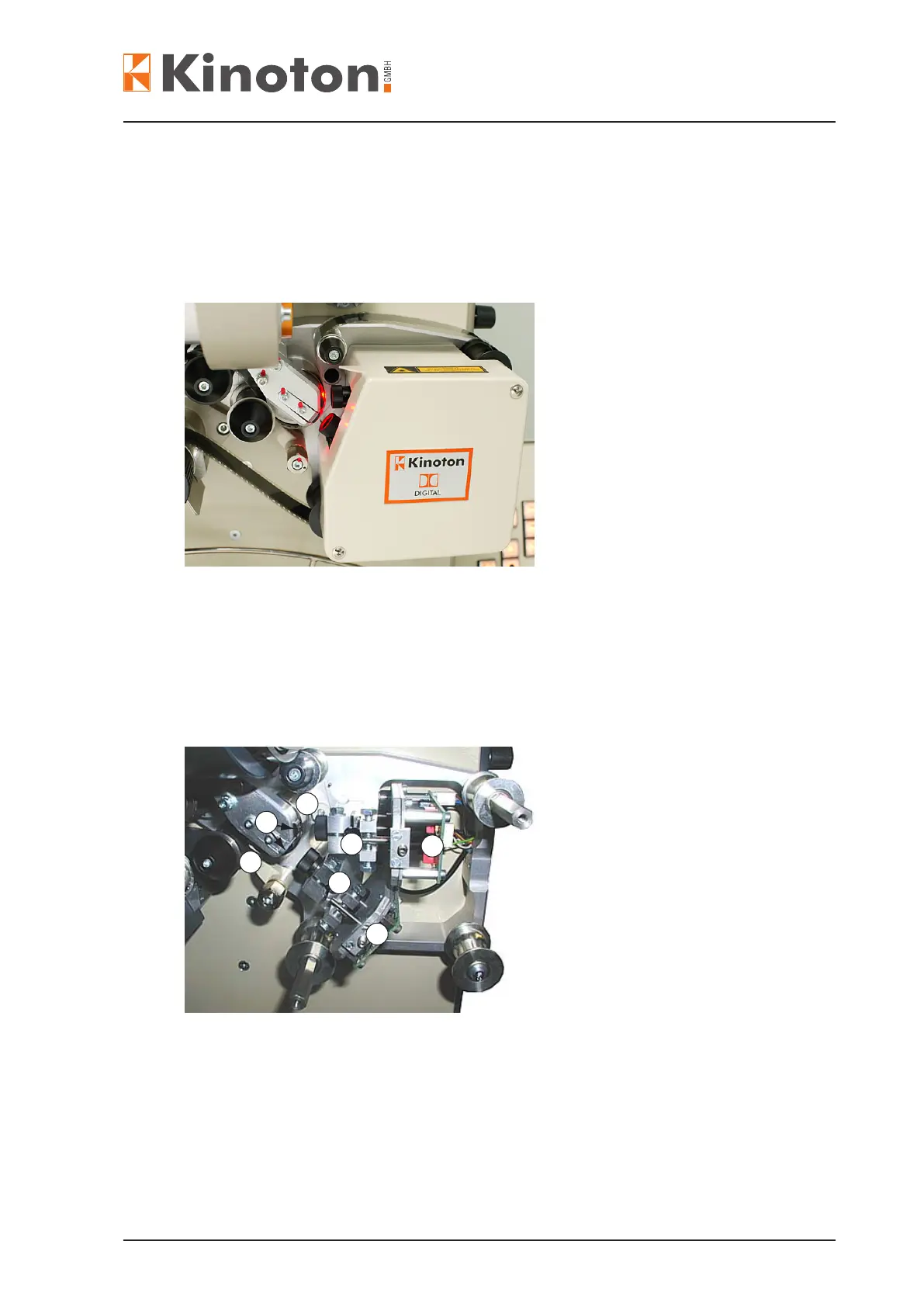

 LED holder with optional second digital LED
Á Sound shaft (drum)
 Sound pressure roller
à Analog (upper) and optional digital (lower) sound optics
Ä P. C. Board with solar cell (analog)
Å P. C. Board with CCD-unit (digital)
