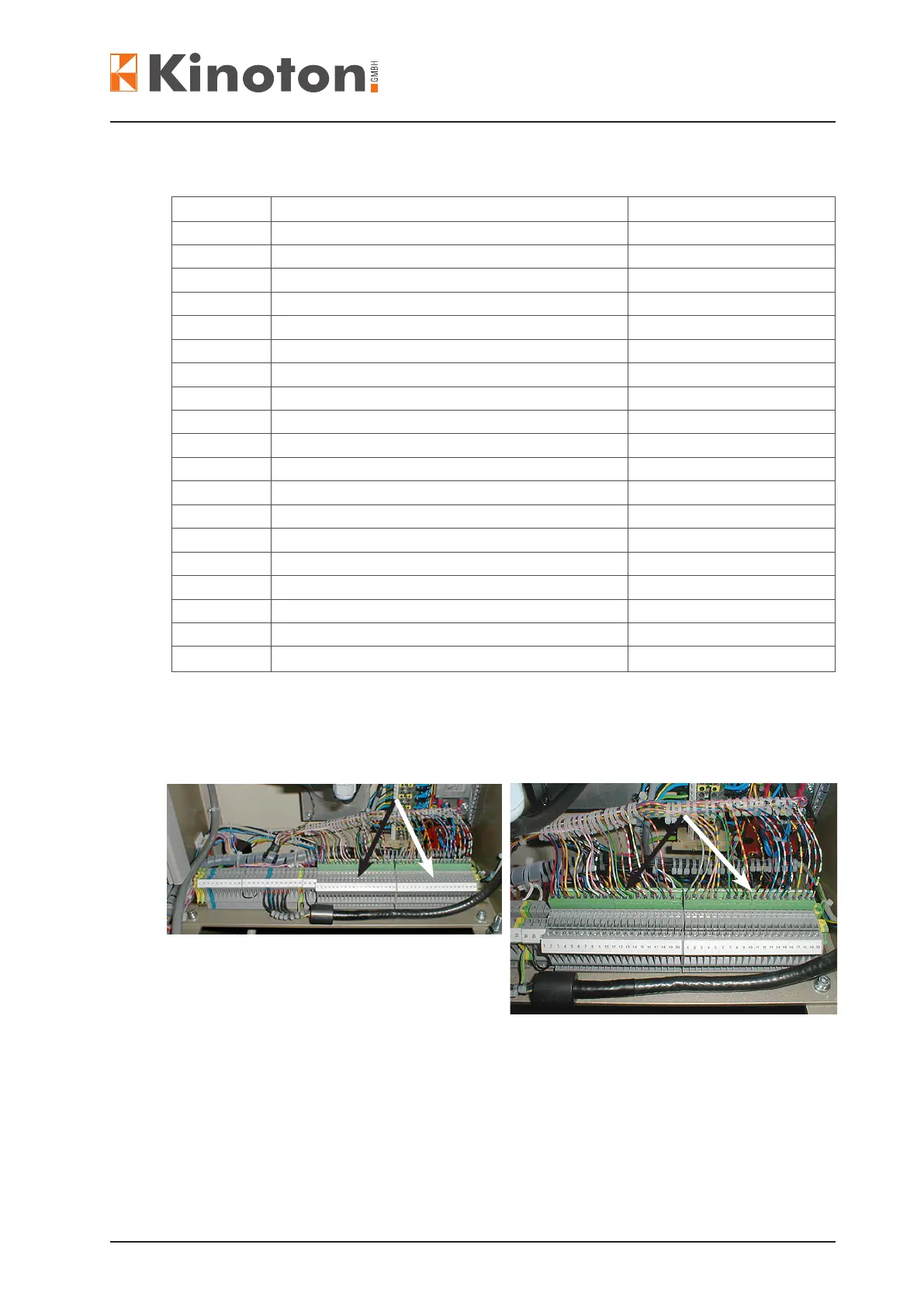

Kinoton FP 75 E - Plan of X3 Terminal Strip for Auditorium Functions (Option); BWR Control Panel on Terminal Strips X2 + X3


Issue: 08/2012

 
  
 Curtain COM 37
 Curtain OPEN 21
 Curtain CLOSE 5
 House light COM 36
 House light ON 4
 House light HALF 9
 House light OFF 20
 Stage light COM 38
 Stage light ON 22
 Stage light OFF 6
 Masking COM 24
 Masking NS 47
 Masking WS 40
 Masking CS 25
 Tape ON Relay 18 15
 Tape ON Relay 18 16
 Tape OFF Relay 19 10
 Tape OFF Relay 19 26
 Reserve
 
• Connect the Phoenix plugs, coming from BWR control panel to projector terminal
strips X2 and X3 (see gures).
Terminal Connections
