Components
Issue: 08/2012
2
1
3
4
2
1
4
5
6
7

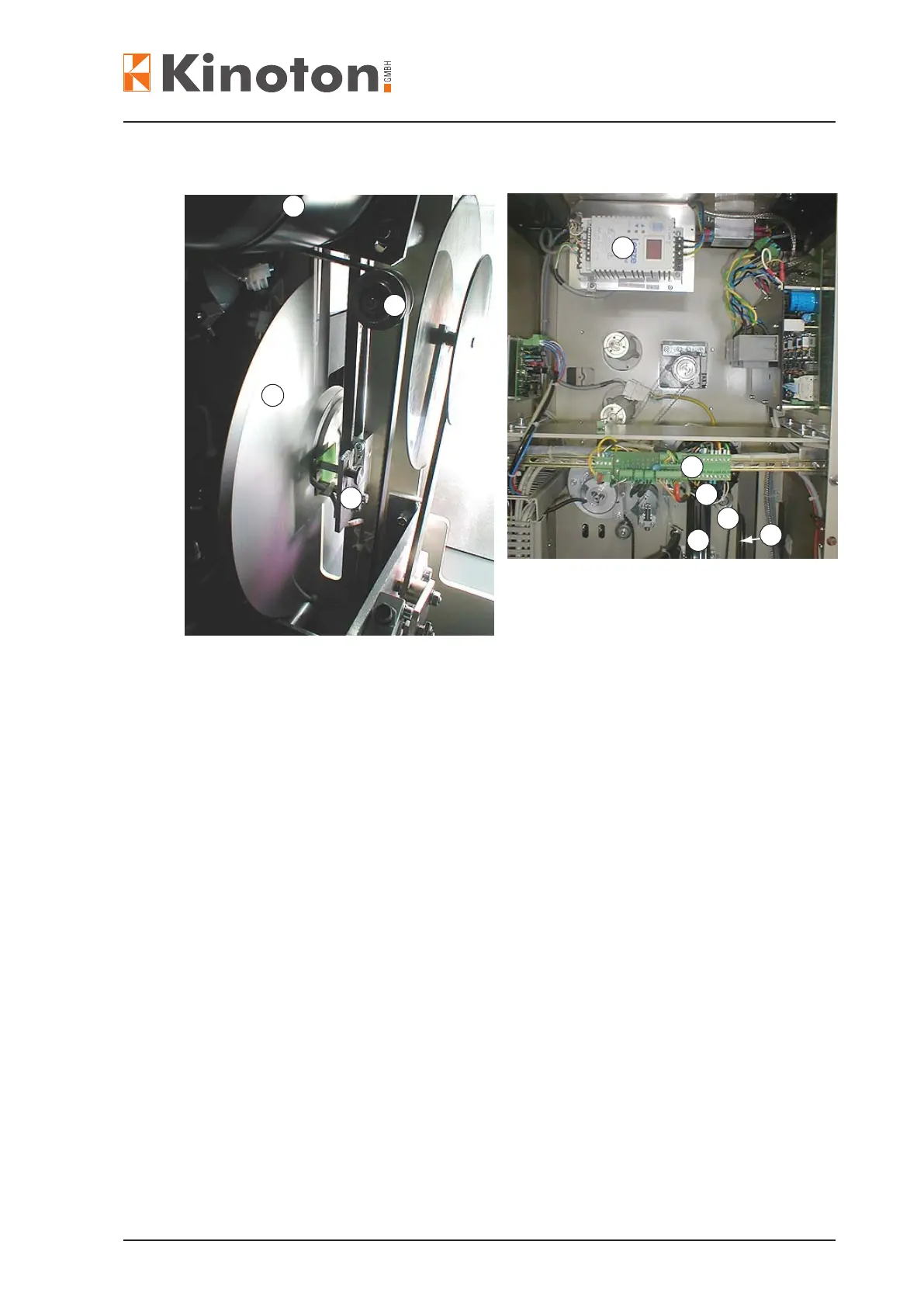

Shutter
Á Shutter drive
 Shutter sensor board
à Shutter drive motor
Ä Shutter control adapter
Å Shutter drive frequency inverter
Æ Dowser
» The shutter is driven via a toothed belt by the shutter motor.
» The shutter motor and in consequence the shutter is controlled via a shutter control
adapter and frequency inverter.
» The shutter timing can be adjusted by moving the sensor board.
