Kodak EASYSHARE P850 Service Manual

SERVICE MANUAL
12 11NOV05 – SM7648-1
Caution
• Dangerous Voltage
• You must do a discharge of the STROBE CAPACITOR 2 after removing the MONITOR LCD AY.

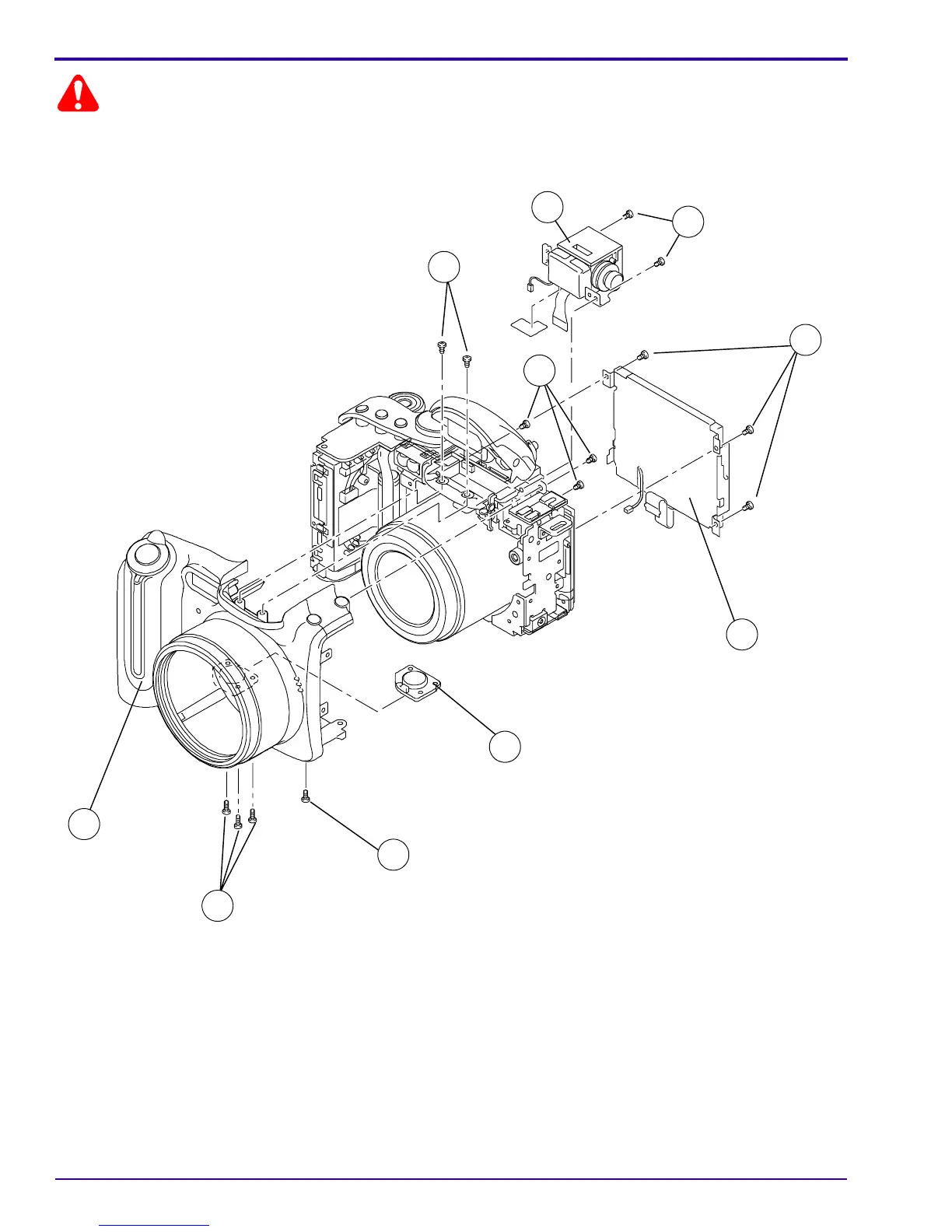

Figure 2 FRONT COVER, VIEWFINDER, and MONITOR LCD AYs
P264_1001DC
P264_1001DCA
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
