Kodak EASYSHARE P850 Service Manual

Replacements
SM7648-1 – 11NOV05 71

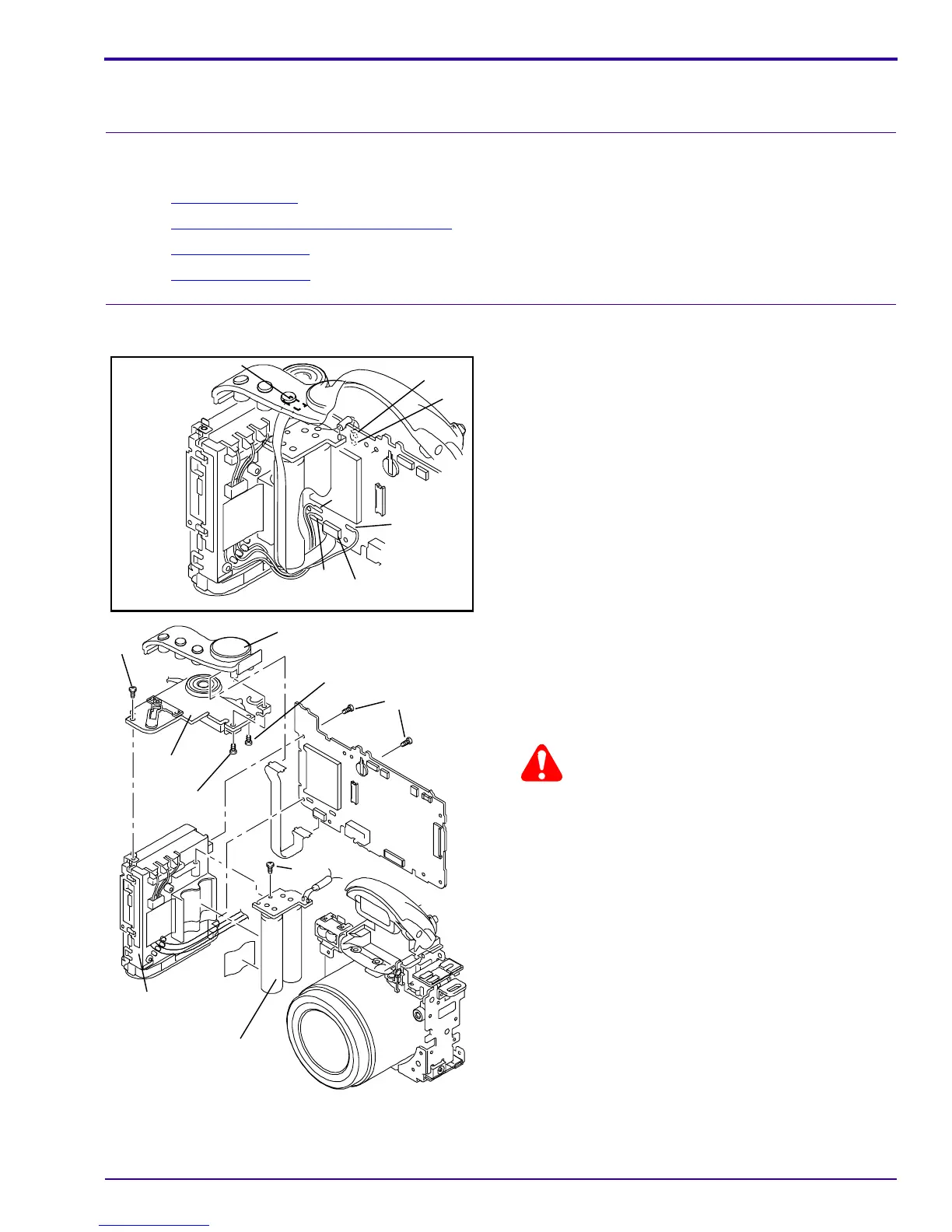

BATTERY COMPARTMENT AY, TB1 BOARD - SHUTTER AND MODE DIAL,
AND ST1 BOARD - CAPACITOR
Prerequisites:
[1] Remove:
• BACK COVER AY
• MONITOR LCD AND VIEWFINDER AYs
• FRONT COVER AY
• CP1 BOARD - MCU
To Remove:
[1] Remove 2 SCREWS A.
[2] Disconnect CN301.
[3] Remove:
• SOLDER from BATTERY COMPARTMENT
AY at:
–“GY”
–“PK”
–“WT”
• SOLDER from ST1 BOARD - CAPACITOR
–“GY”
–“RD”
• SCREWS
– B
– C
– D
• TOP COVER
Caution
• Dangerous Voltage
• You must discharge the CAPACITOR at the 4
SOLDER JOINTS on the top of the ST1 BOARD -
CAPACITOR.
[4] Remove:
• TB1 BOARD - SHUTTER AND MODE DIAL
• SCREW E
• ST1 BOARD - CAPACITOR
P264_1010CC
P264_1010CCA
BATTERY
ST1 BOARD
E
A
D
C
TB1
TOP COVER
B
CN301
GY
WT
PK
RD
GY
CN601
CAPACITOR
COMPARTMENT
AY
BOARD
