Kodak EASYSHARE P850

Replacements
SM7648-1 – 11NOV05 69

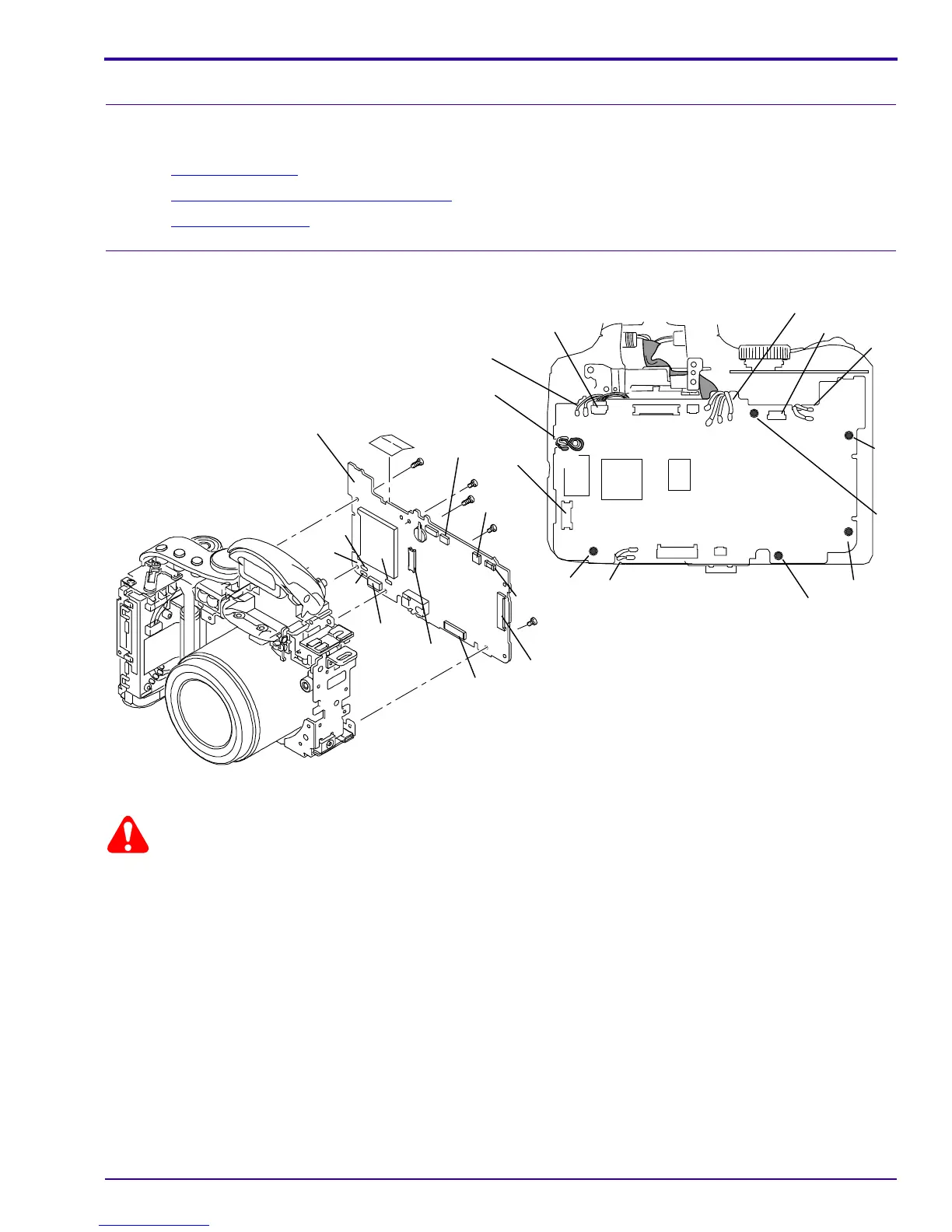

CP1 BOARD - MCU
Prerequisites:
[1] Remove:
• BACK COVER AY
• MONITOR LCD AND VIEWFINDER AYs
• FRONT COVER AY
To Remove:
Caution
• Dangerous Voltage
• You must discharge the CAPACITOR at wires “GY” and “RD from the ST1 BOARD - CAPACITOR”.
[1] Remove SOLDER from wires:
• STROBE AY
–“WT”
–“BK”
–“GY”
–“PK”
• ST1 BOARD - CAPACITOR
–“GY”
–“RD”
P264_1007HC
B
A
A
A
B
CP1 BOARD - MCU
P264_1007HCA
WT
GY
PK
MICROPHONE
SPEAKER
CN702
CN192
ST2
CN302
BAT
TB1
CN301
CN701
CN951
CN101
TB2
CN303
STROBE AY
CN191
ST1
CN103
TB3
BL
RD
WT
RD
WT
BK
GY
PK
GY
PK
GY
RD
