Kodak EASYSHARE P850

Replacements
SM7648-1 – 11NOV05 67

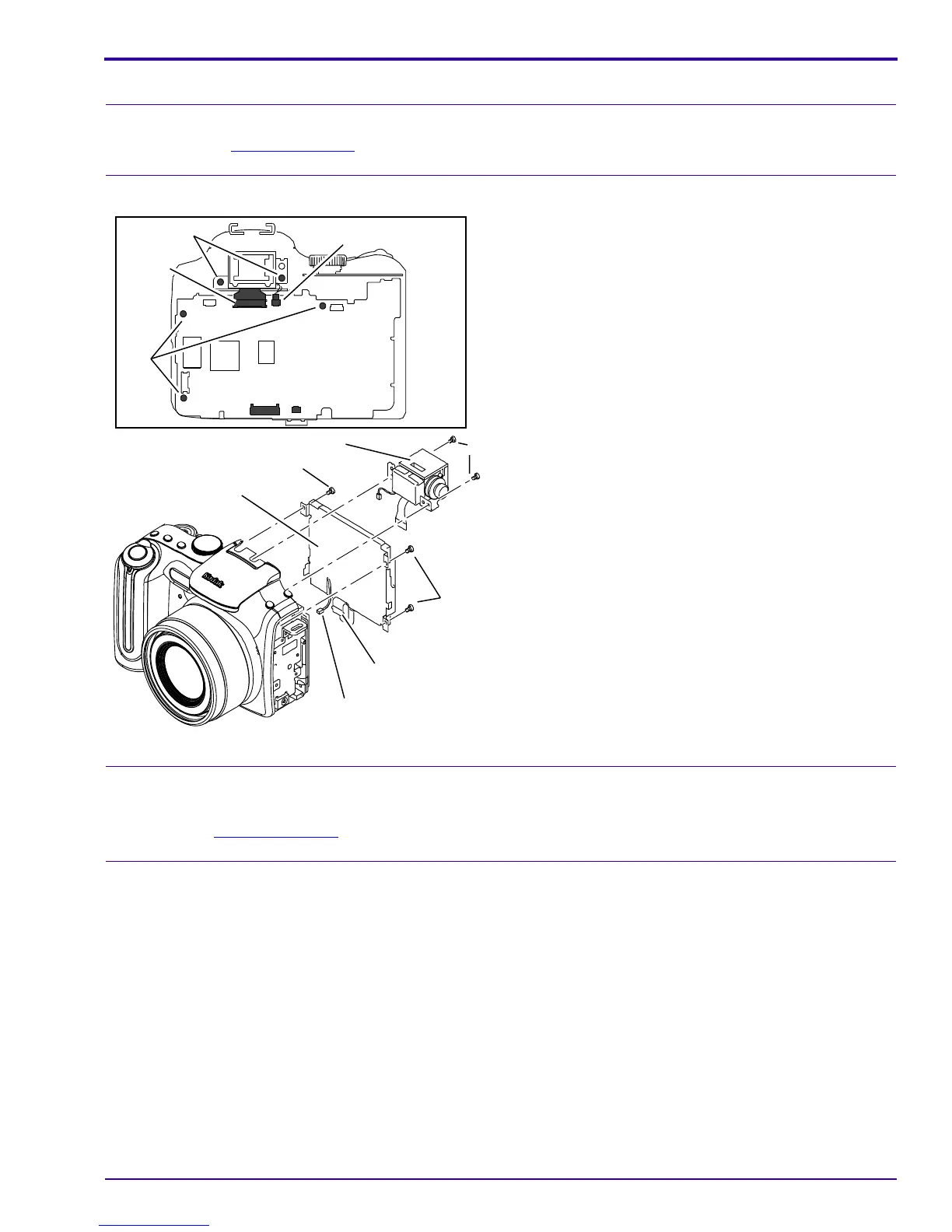

MONITOR LCD AND VIEWFINDER AYs
Prerequisites:
[1] Remove the BACK COVER AY.
To Remove:
[1] Remove the 3 SCREWS A.
[2] Disconnect the CONNECTORS:
• CN501
• CN171
[3] Remove:
• MONITOR LCD AY
• 2 SCREWS B
[4] Disconnect the CONNECTORS:
• CN502
• CN801
[5] Remove the VIEWFINDER AY.
To Install:
[1] Reverse the steps in the removal procedure.
[2] Install the BACK COVER AY
.
Postrequisites:
None
P264_1005GC
B
A
MONITOR
LCD AY
CN502
CN801
B
A
VIEWFINDER AY
CN501
CN171
A
P264_1005GCA
