Kodak EASYSHARE P850

SERVICE MANUAL
66 11NOV05 – SM7648-1
Section 5: Replacements
Important
You must see the “Equipment Parts” on Page 10 for all parts information.

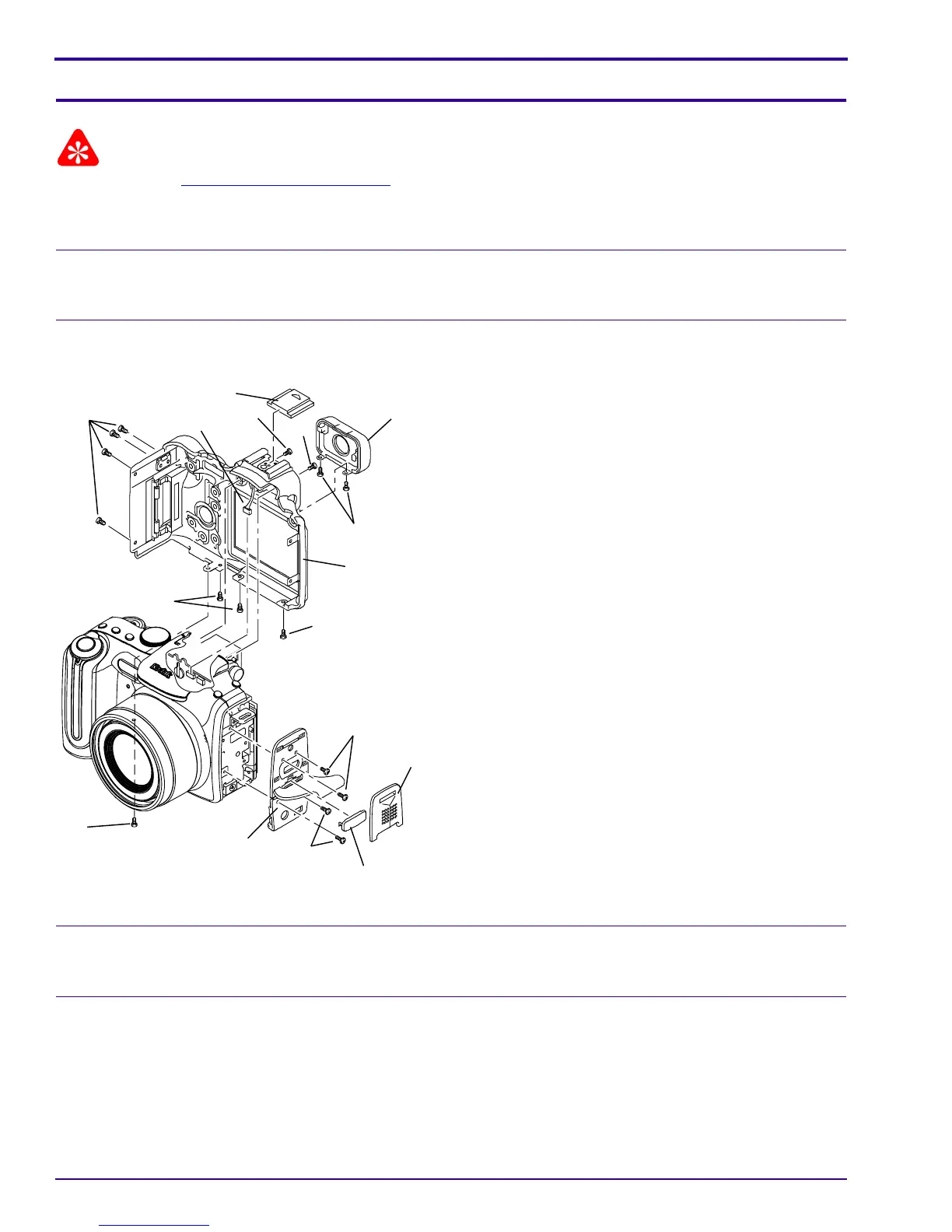

BACK COVER AY
Prerequisites:
None
To Remove:
[1] Remove:
• COVER from the side
• PLATE
• 2 SCREWS A
• 2 SCREWS B
• HOLDER
• HOT SHOE COVER
• 2 SCREWS C
• COVER
• SCREW D
• SCREW E
• 6 SCREWS F
• 2 SCREWS G
[2] Disconnect the CONNECTOR CN193.
[3] Remove the BACK COVER AY.
To Install:
[1] Reverse the steps in the removal procedure.
Postrequisites:
None
P264_1004GC
G
G
F
HOT SHOE COVER
COVER
BACK
COVER
PLATE
HOLDER
A
B
C
D
E
CN193
F
COVER AY
P264_1004GCA
