Kodak EASYSHARE P850 Service Manual

Replacements
SM7648-1 – 11NOV05 73

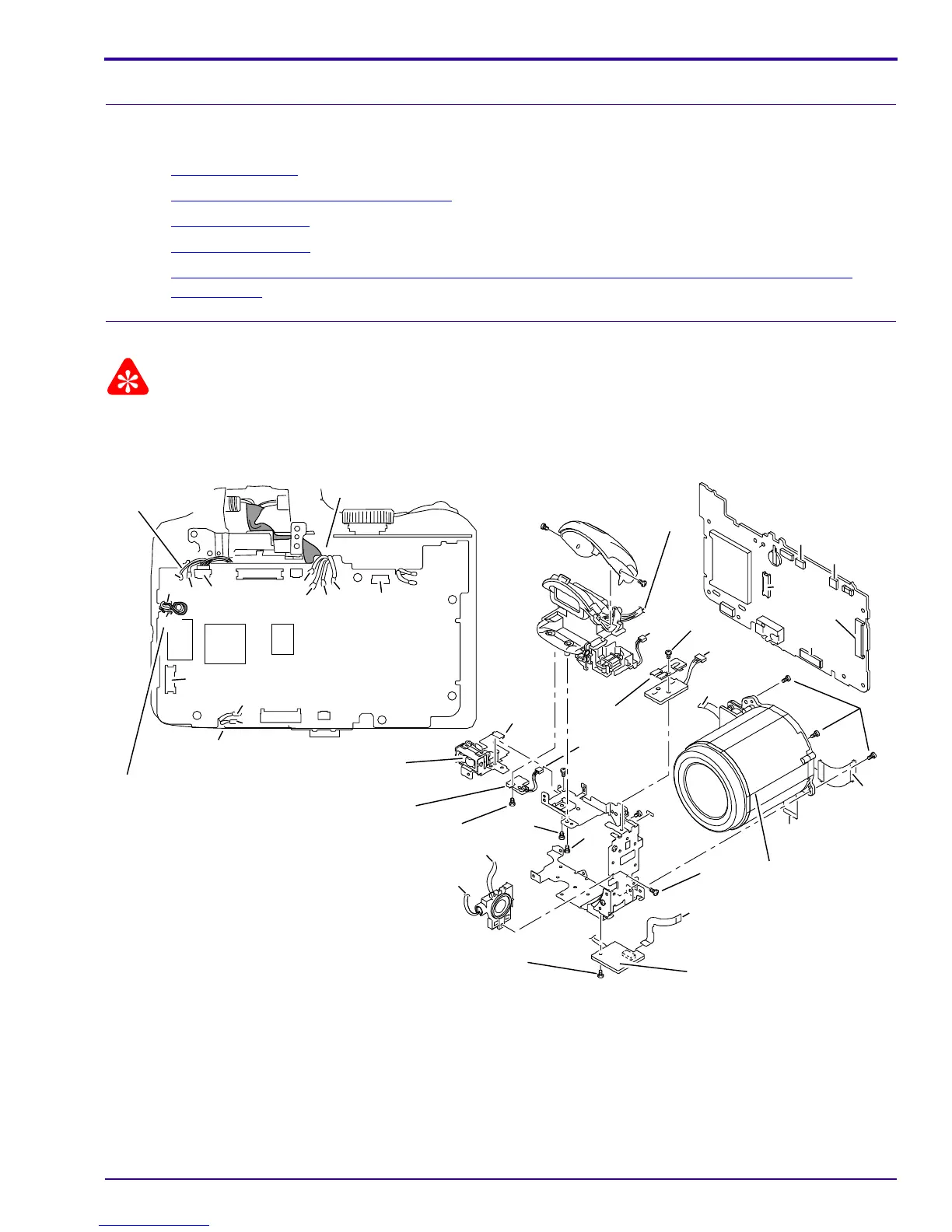

LENS, STROBE AY, MICROPHONE AY, and ST2, TB2, TB3 BOARDS
Prerequisites:
[1] Remove:
• BACK COVER AY
• MONITOR LCD AND VIEWFINDER AYs
• FRONT COVER AY
• CP1 BOARD - MCU
• BATTERY COMPARTMENT AY, TB1 BOARD - SHUTTER AND MODE DIAL, AND ST1 BOARD -
CAPACITOR
To Remove:
Important
The CONNECTOR NUMBERS described in the graphic are for your reference and are used in the preceding
procedures.
[1] Remove:
• 3 SCREWS A
• LENS AY
• SCREW B
• STROBE AY
• SCREW C
• TB2 BOARD - FOCUS AND STROBE MODE
P264_1009HC
BL
RD
WT
RD
WT
BK
GY
PK
GY
PK
A
B
LENS AY
STROBE AY
TB2 BOARD
C
D
TB3 BOARD
E
MICROPHONE
SPEAKER
F
ST2 BOARD
G
PAF AY
CN302
CN701
CN101
CN951
CN191
CN303
CN103
CN702
CN191
CN303
MICROPHONE
SPEAKER
CN103
CN702
CN101
CN302
CN701
STROBE AY
TB3 BOARD
CN951
P264_1009HCA
