Kodak EASYSHARE P850 Service Manual

SERVICE MANUAL
14 11NOV05 – SM7648-1
Caution
• Dangerous Voltage
• You must do a discharge of both of the STROBE CAPACITORS after removing the TOP COVER AY and TB1
BOARD.

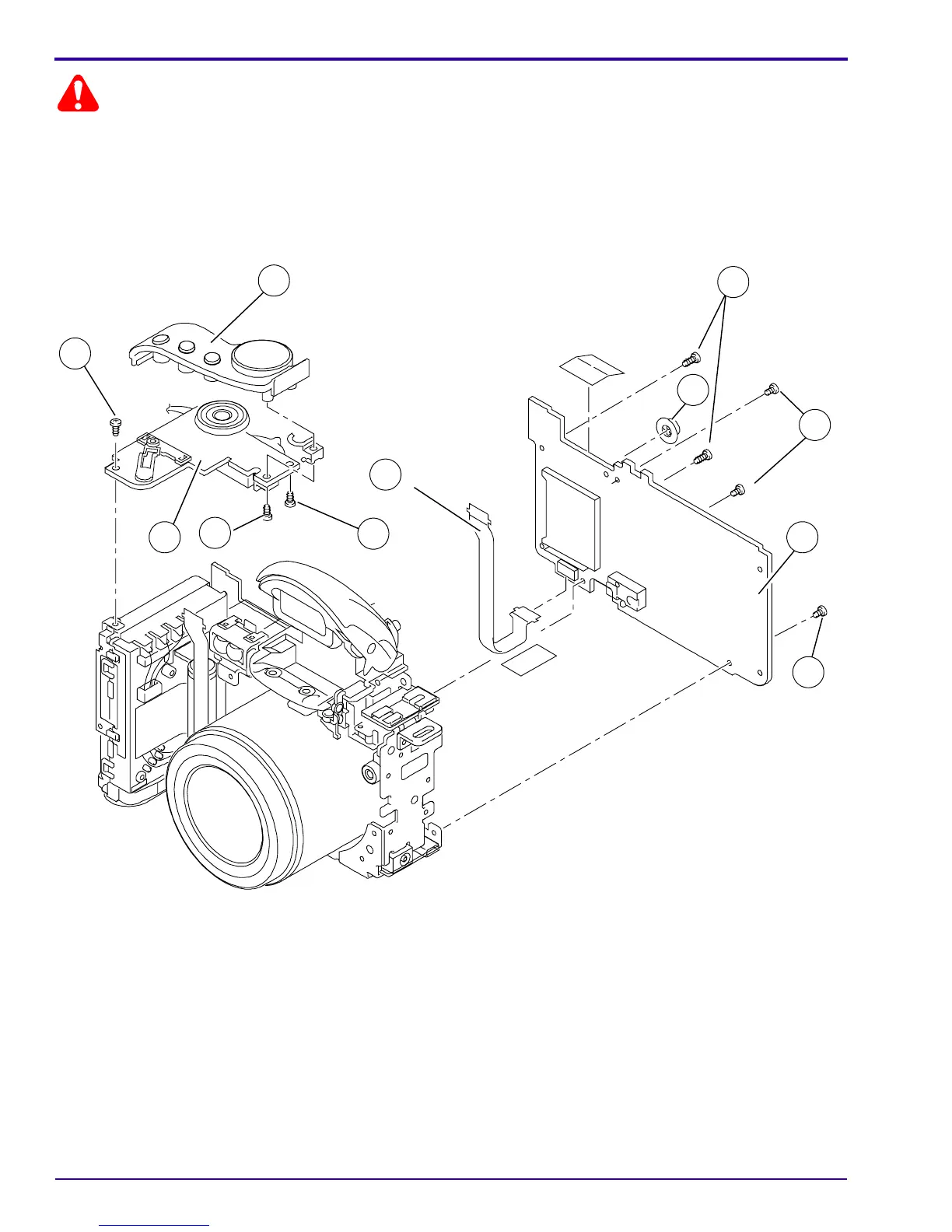

Figure 3 CP1 BOARD - MCU, TOP COVER AY, and TB1 BOARD - SHUTTER AND MODE DIAL
P264_1002DC
P264_1002DCA
8
9
8
7
6
5
4
3
2
1
1
1
2
3
4
5
6
7
8
9
1
8
