Kodak EASYSHARE P850 Service Manual

SERVICE MANUAL
52 11NOV05 – SM7648-1

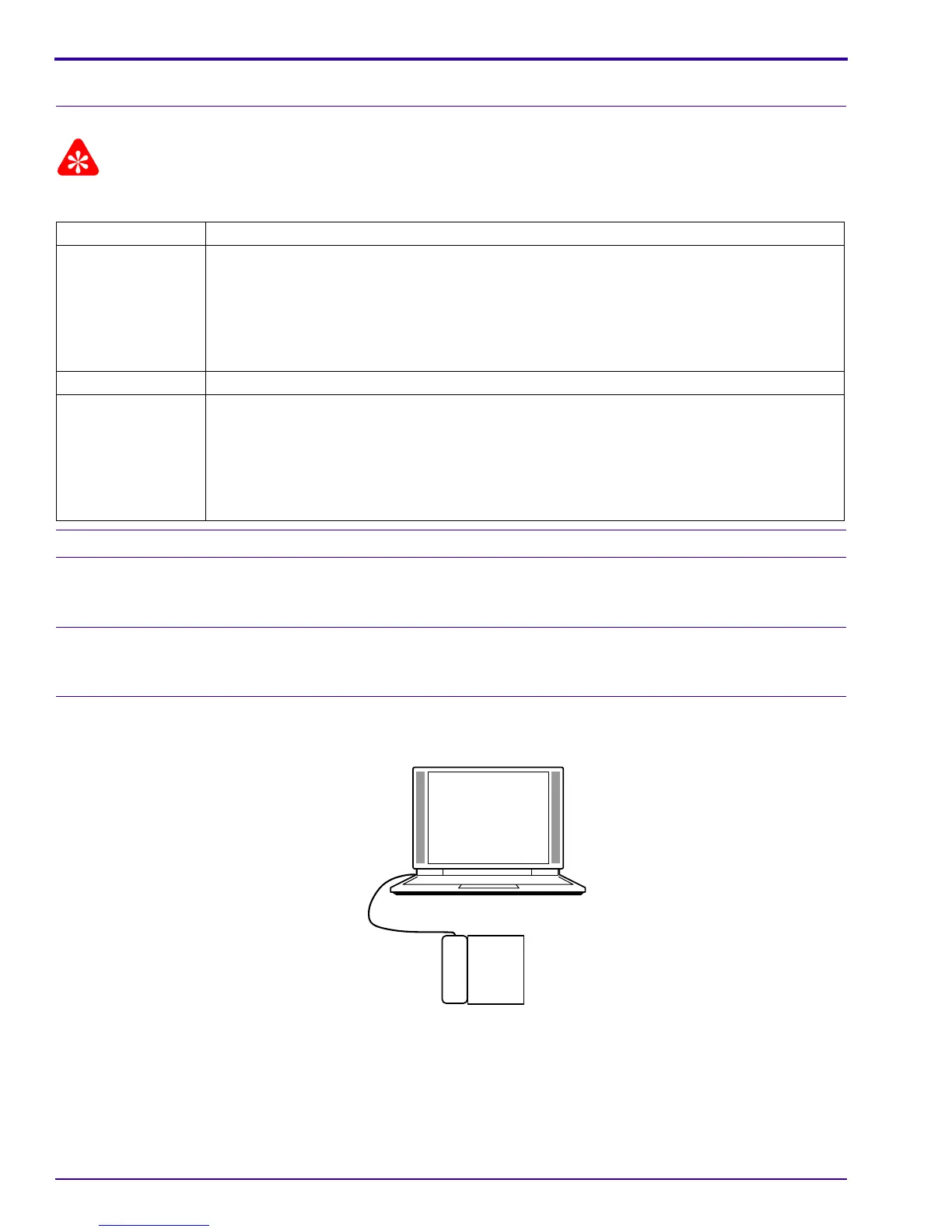

PAF SENSOR - “Uniform”
Adjustment Specification
Important
Do not use the CAMERA DOCK in this procedure.
Prerequisites:
None
To Check:
You cannot check this adjustment.
To Adjust:
[1] Energize the PATTERN BOX.
[2] Set the PATTERN BOX:
• color temperature: 3100 +/- 20 K
• luminance: 900+/- 20 cd/m
2
[3] Place the CAMERA 0 cm (0 in.) from the PATTERN BOX (COLOR VIEWER).
Purpose: To measure and store the values to provide a uniform focus and light of the image.
Do When: • The image focus and light are not uniform.
• After installing a new:
– CP1 BOARD - MCU
– MONITOR LCD AY
– LENS AY
Specification: The PAF SENSOR adjusts to match the TARGET in the PATTERN BOX.
Special Tools: • SERVICE SOFTWARE
• Computer
• USB CABLE
• 5 V AC ADAPTER
• PATTERN BOX
CAMERA
PATTERN BOX
(COLOR VIEWER)
P264_9003AA
