Adjustments
SM7648-1 – 11NOV05 31

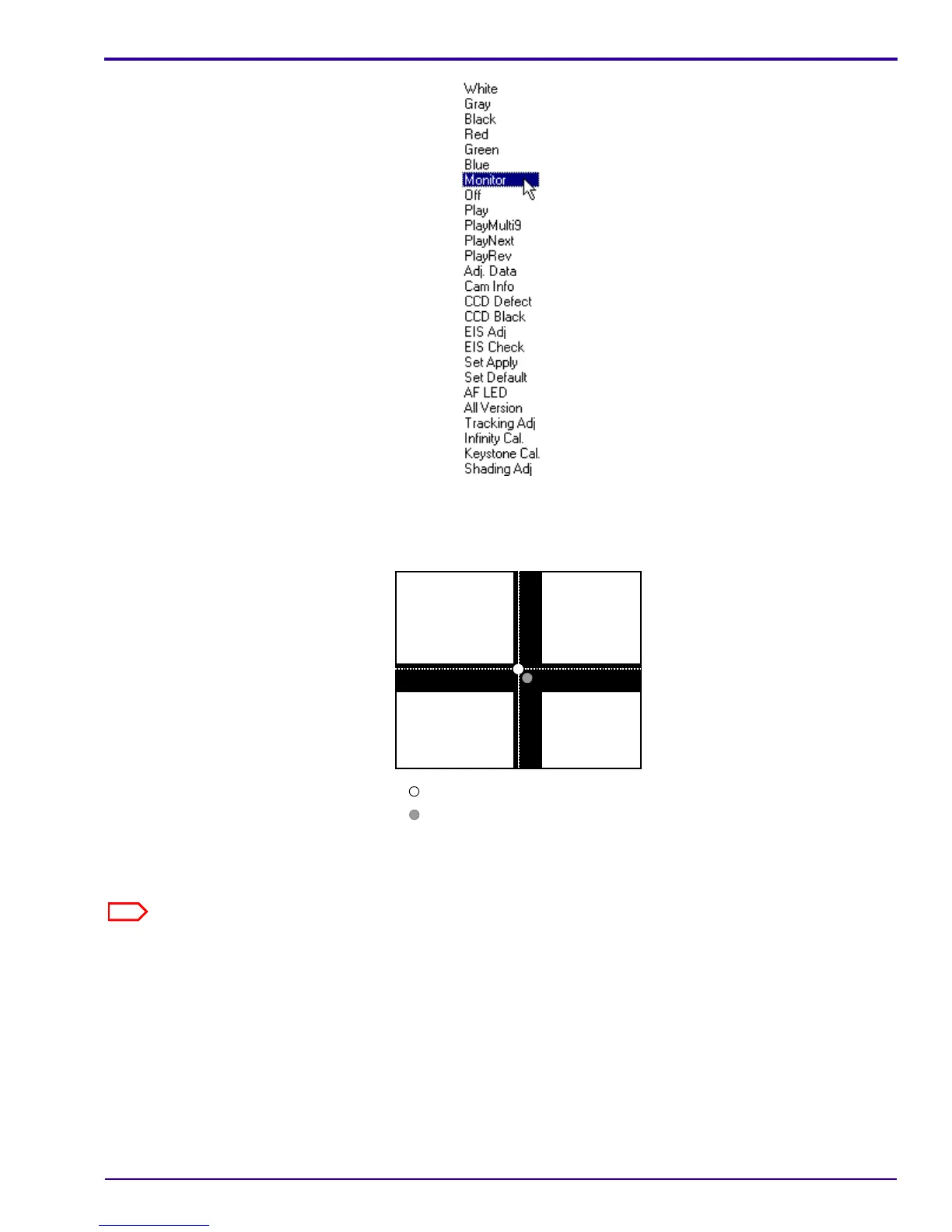

[4] Select “Monitor”.
Note
• This is an example of the TARGET.
• The actual TARGET does not have the lines or DOTS.
[5] Check that the MONITOR LCD displays the TARGET.
[6] Adjust the position of the CAMERA to align the center of the MONITOR LCD a small distance up and to the left
of the center of the symbol on the TARGET.
SHIFT LENS ADJUSTMENT TARGET
the center of the screen
the center of the cross symbol
P264_9002AA
