Adjustments
SM7648-1 – 11NOV05 37

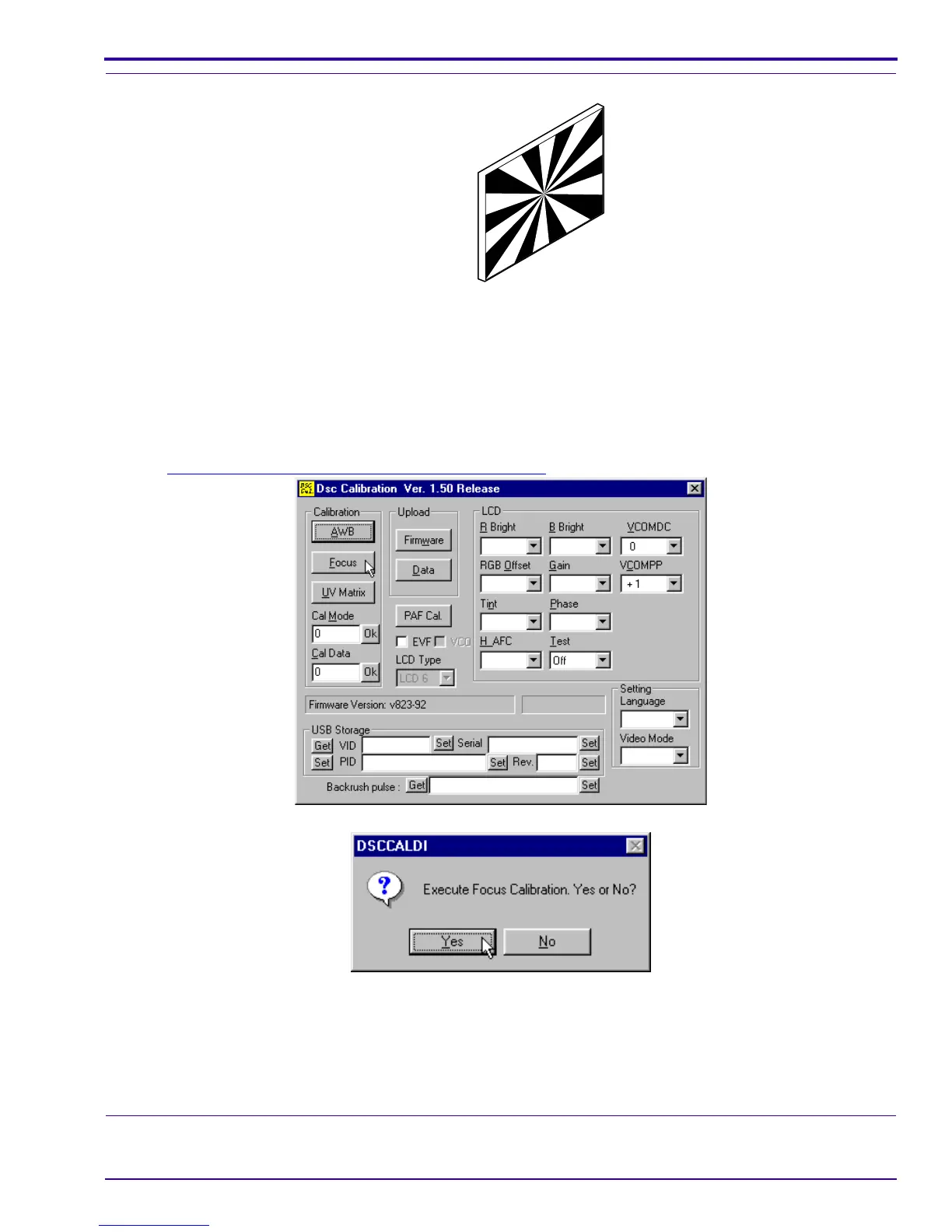

To Adjust:
[1] Set the CAMERA 90 +/- 0.5 cm (35.4 +/- 0.2 in.) from the TARGET by using:
• SLOT 4
• yellow holes in the CAMERA NEST
• TRIPOD MOUNT
[2] Do “
Connecting to the SERVICE SOFTWARE” on Page 75.
[3] Click [Focus].
[4] Click [Yes] to continue.
[5] Check that the “Dsc Calibration” window:
• displays the adjustments within the specifications
• does not display “NG: X”
[6] Click [OK].
Postrequisites:
None
P264_9001AA
STAR TARGET
To Next Page
