Adjustments
SM7648-1 – 11NOV05 47
Important
• The CAMERA LENS moves during the test.
• Hold the CAMERA against the PATTERN BOX carefully to stop light from entering.
[3] Place the CAMERA 0 cm (0 in.) from the PATTERN BOX without entering any light.
[4] Do “
Connecting to the SERVICE SOFTWARE” on Page 75.

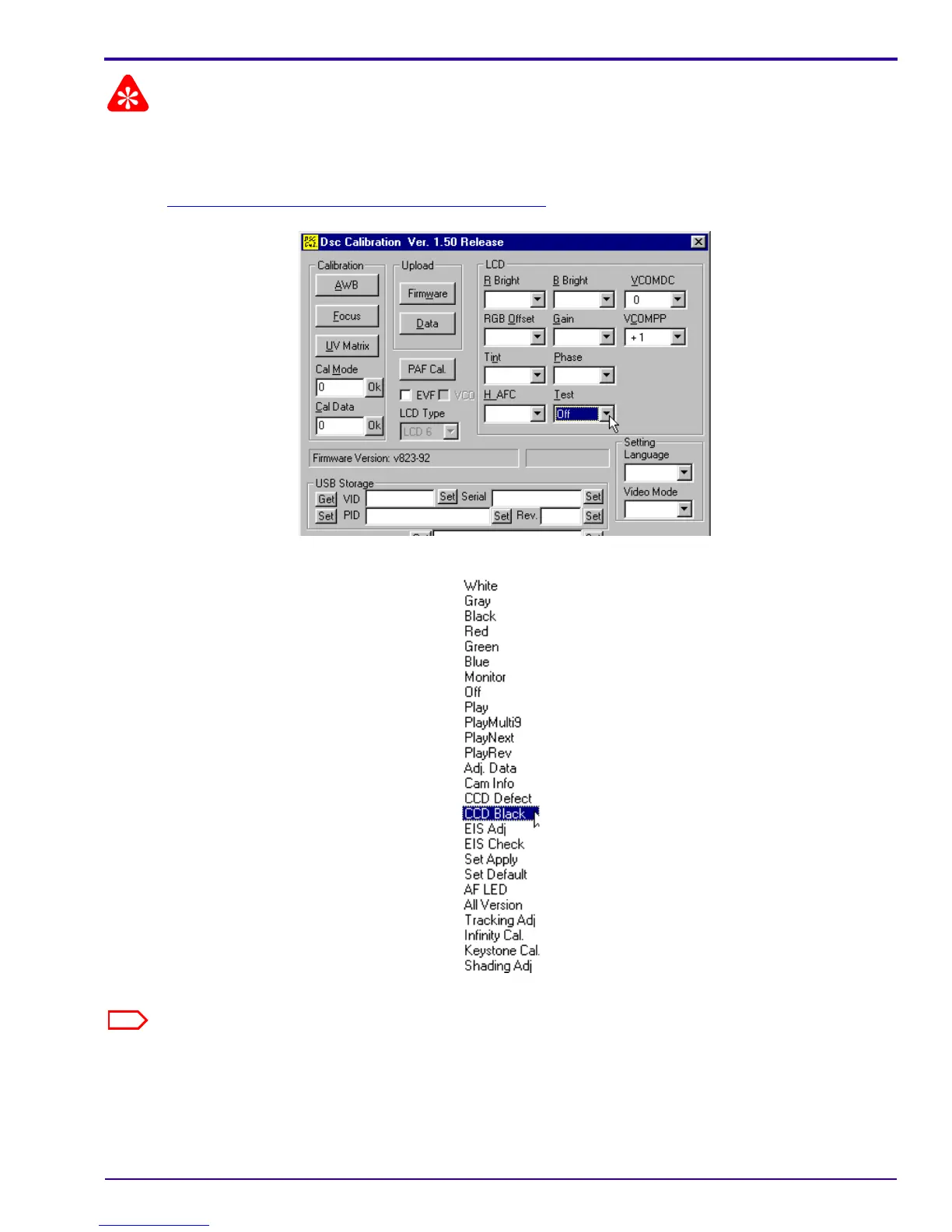

[5] Click “Test” to display the menu.
[6] Select “CCD Black”.
Note
The test runs automatically.
To Next Page
