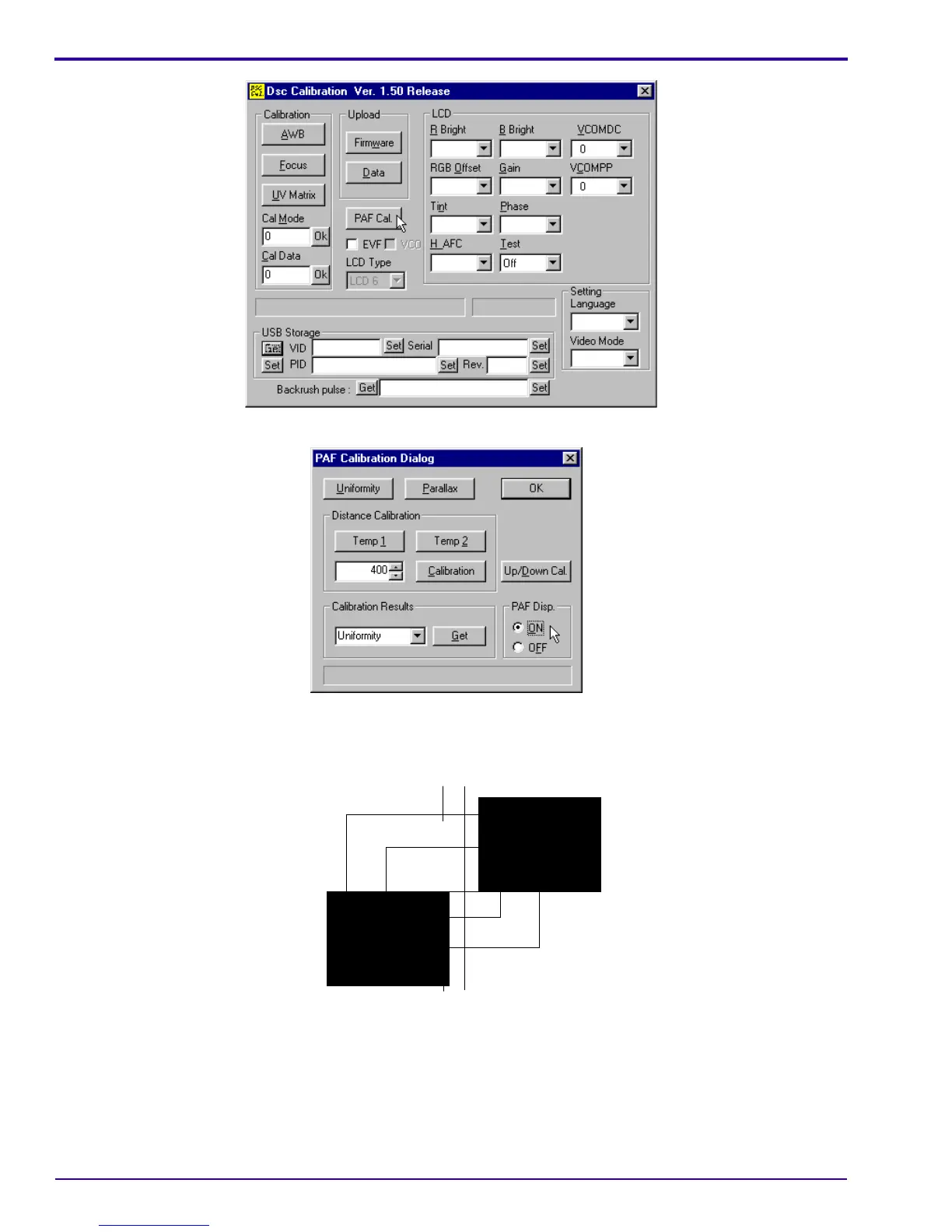

[5] Click [PAF Cal.].
[6] Check that the “PAF Calibration Dialog” window displays.
[7] Select “ON”. The GRAPH displays.
[8] Align the AF FRAME next to the center of the MONITOR LCD with the gray line in the TARGET.
[9] Adjust the PAF SENSOR to the correct up and down positions at the same time checking the GRAPH and
values.
UP AND DOWN ADJUSTMENT TARGET
P264_9004AA
