Adjustments
SM7648-1 – 11NOV05 59
Important

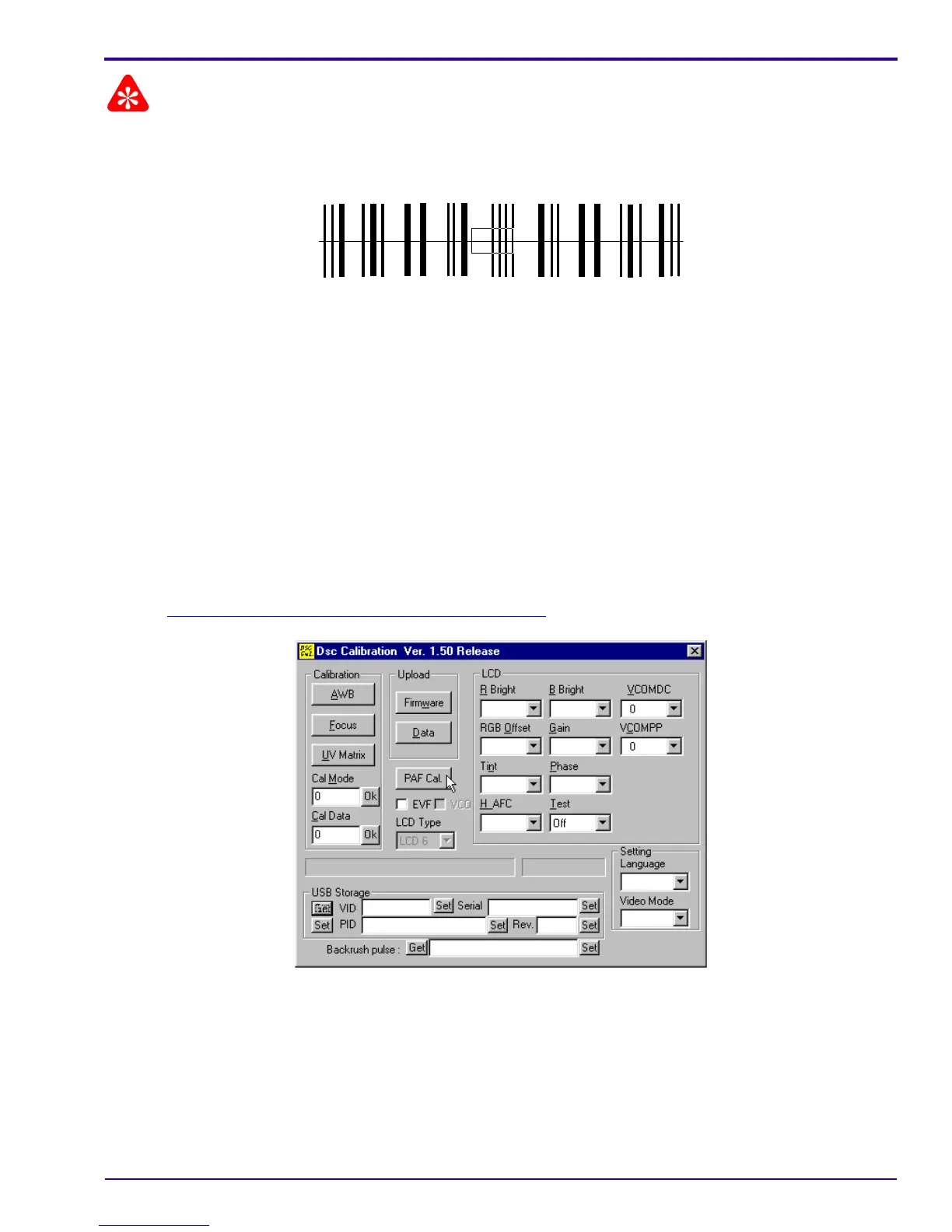

The TARGET is in 3 sections with the labels “1”, “2”, “3”.
[3] Assemble and adhere the TARGET to the wall.
(a) Align the sections of the TARGET with the labels “1”, “2”, “3” from right to left.
(b) Check that there are no spaces between the sections of the TARGET.
(c) Adhere the TARGET using tape.
[4] Place the PAF SENSOR on the CAMERA 300 +/- 1 cm (118.1 +/- 0.4 in.) from the TARGET.
[5] Do “
Connecting to the SERVICE SOFTWARE” on Page 75.
[6] Click [PAF Cal.].
DISTANCE ADJUSTMENT TARGET
P264_9005AA
