CVS-842/852/843 Chapter3
Operation Manual Specifications
Input power: 150 W
3.3 Environmental conditions
(1) Temperature and humidity
(Applicable to the Display and TX/RX unit)
Operation temperature:
-15
o
C to +55
o
C
Storage temperature: -30
o
C to +70
o
C
Humidity: 93 +/- 3 % @+40
o
C
(2) Vibration
The units are free from any functional deterioration or mechanical damage caused by the vibrating
conditions stated below:
2 - 5 Hz up to 13.2 Hz: Amplitude +/- 1mm +/- 10% (Maximum acceleration of 7 m/s
2
at 13.2 Hz)
(3) Water proof characteristic
Display: IPX5 (Water jet proof)
TX/RX unit: IPX1 (Splash proof)
3.4 External dimensions and weight
External dimensions: Width x Depth x Height
Display unit: CVS-842: 380(14 15/16) x 138(5 7/16) x 340(13 3/8) mm(inch), 6.5 kg(14.3 lb)
CVS-852: 430 (16 15/16) x 173 (6 13/16) x 390 (15 3/8) mm(inch), 10.0 kg(22.1 lbs)
CVS-843: 380(14 15/16) x 138(5 7/16) x 340(13 3/8) mm(inch) , 6.5 kg(14.3 lbs)
TX/RX unit: 256(10 1/16) x 316(12 7/16) x 172(6 3/4) mm (inch), 6.0 kg(13.2 lbs)
図 3.2 指示部の外形寸法図
320 (12 5/8)
340 (13 3/8)
1 (3/16)
3 (15/16)
Unit in mm (inch)
20 (13/16)
94 (3 11/16)
24 (15/16)
138 (5 7/16)
380 (14 15/16)
320 (12 5/8)

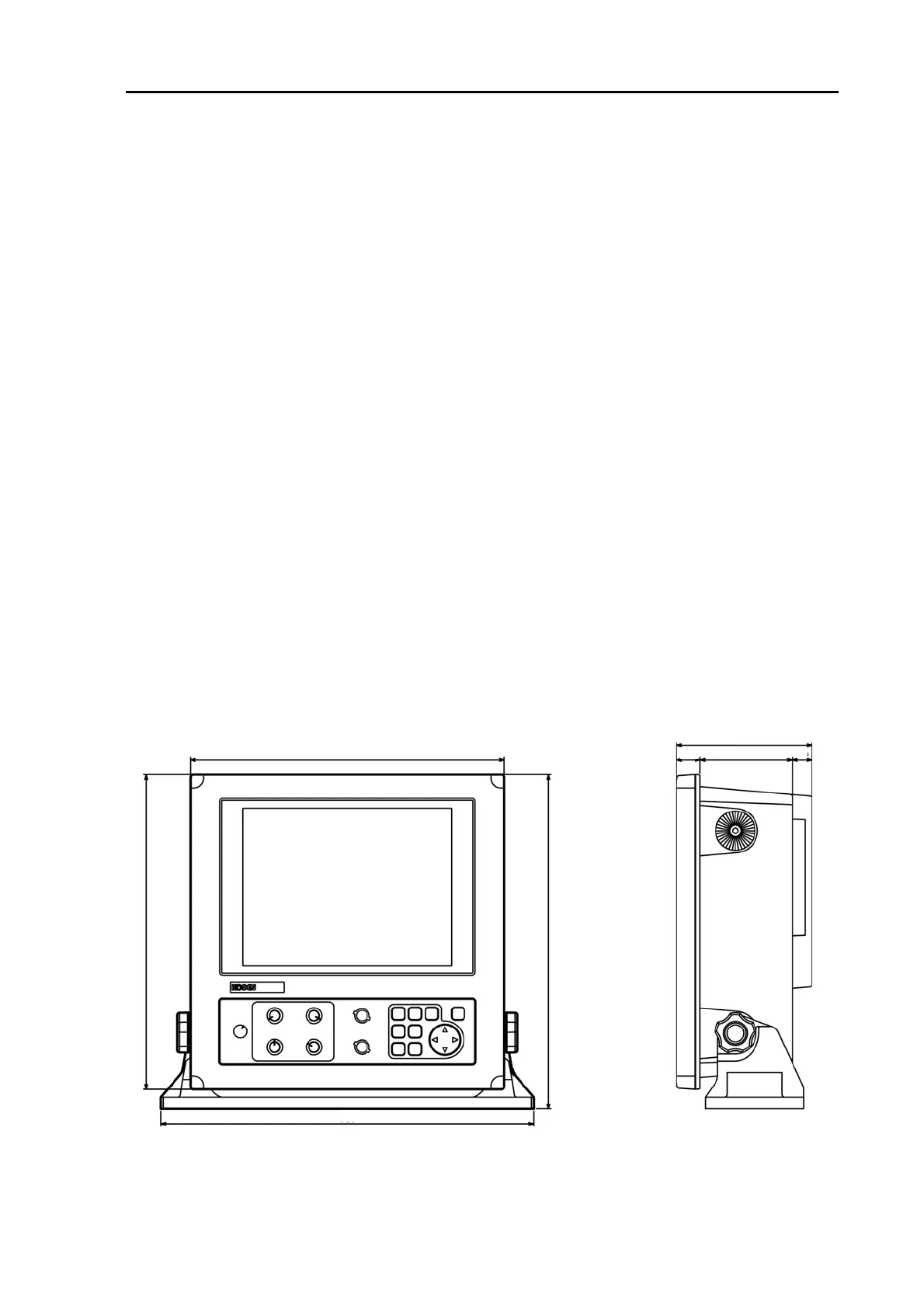

Figure 3.1 External dimension of CVS-842 Display unit
93132692-01 3-3
