Chapter 4 CVS-842/852/843
Installation Operation Manual
4.7 TX/RX unit installation
(1) The TX/RX unit must be installed in a well-ventilated, easily accessible place, which is protected
from the weather and marine environment.
(2) Install the unit in the specified place and fix it using 4 pieces of M5 screws (Tapping or normal
type)
TX/RX Unit
M5 screw (4 pcs)
236
(9 19/64)
256
(10 5/64)
Unit in mm (inch)

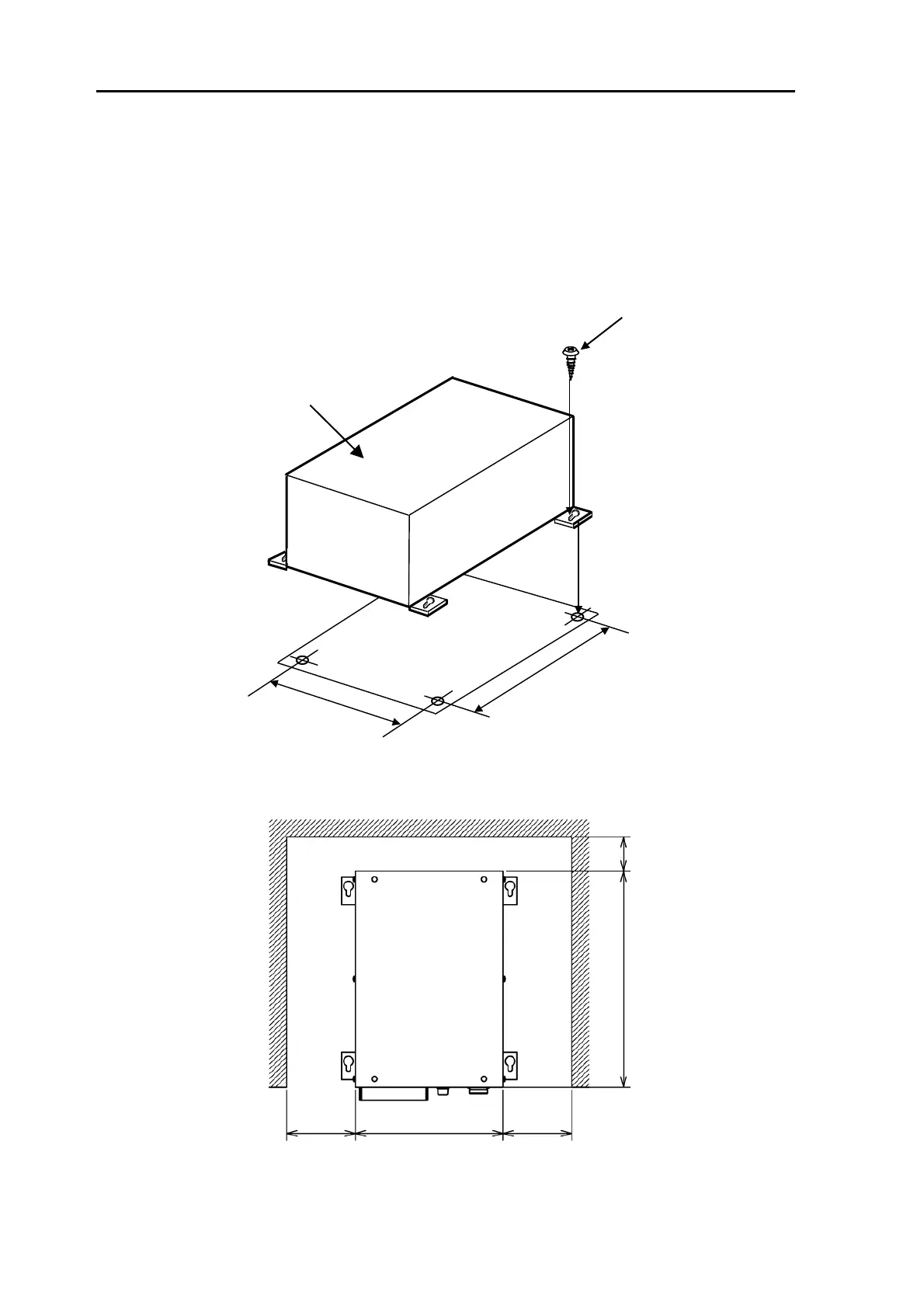

Figure 4.8 Fitting detail of TX/RX unit
Figure 4.9 Service space required for TX/RX unit
50
(15/16)
316
(12 7/16)
100
(3 15/16)
216
(8 1/2)
100
(3 15/16)
Unit in mm (inch)
4-6 93132692-00
