CVS-842/852/843 Chapter 5
Operation Manual Basic Operation

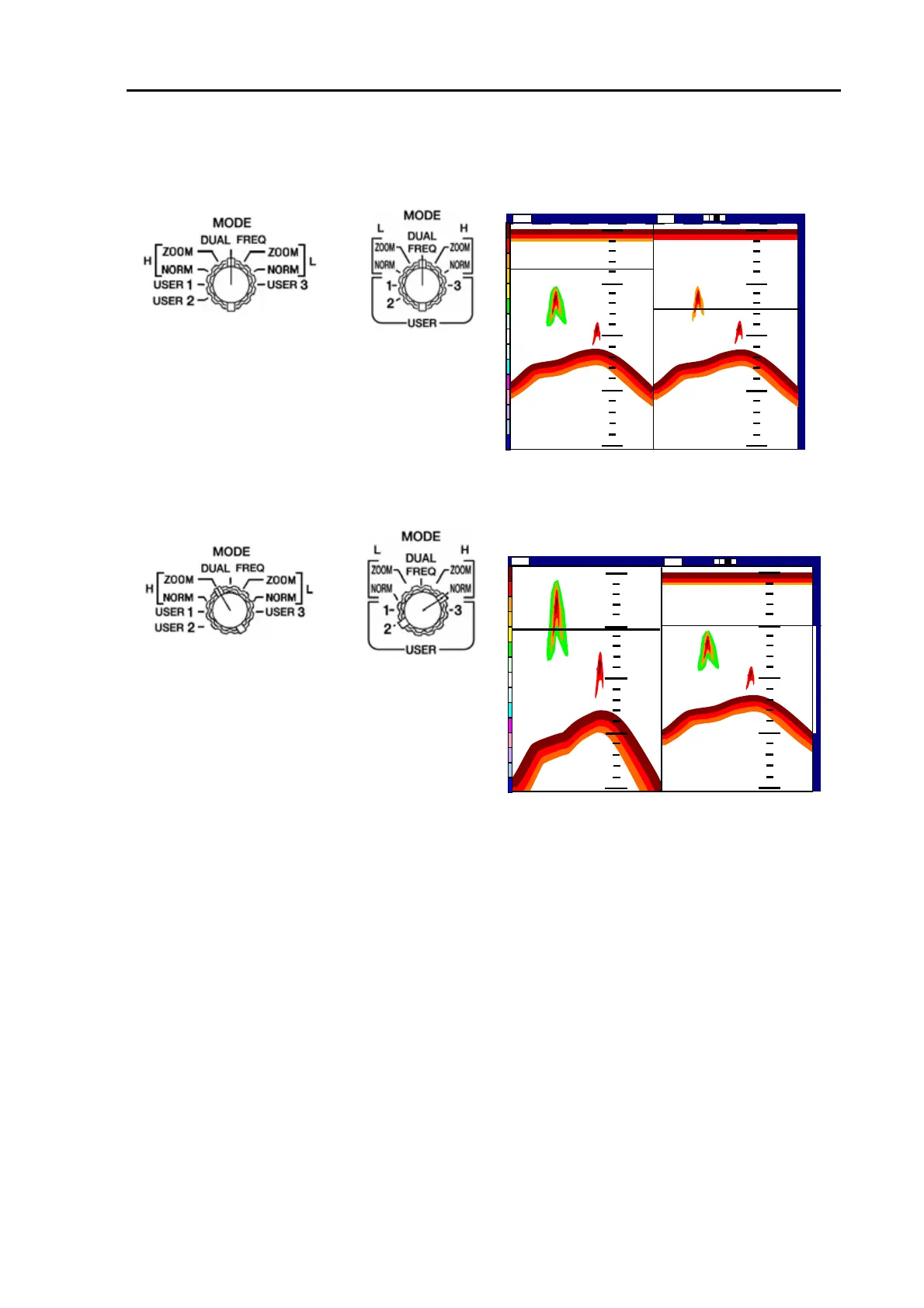

5.3 Displaying the dual images
5.3.1 High Frequency and Low Frequency images
CVS-842/852 CVS-843
5.3.2 High Frequency NORM/ZOOM images
(1) Select DUAL FREQ mode.
(2) Low Frequency image is shown on the
left and High Frequency image on the
right of the screen.
0
50
100
150
200
Fi
g
ure 5.13 Dual Fre
q
uenc
y
ima
g
es
0
50
1
1
0
0
0
0
150
200
147
36
76
Image Speed
1/1
Low
2001/05/23 (Wed)
14:22:56
Shift
000 0 High
CVS-842/852 CVS-843
(1) Select High Frequency ZOOM mode.
(2) Zoomed High Frequency image is
shown on the left and Normal High
Frequency image on the right of the
screen.
Figure 5.14 High Frequency NORM/ZOOM image
０
０
50
100
150
200
50
75
100
125
150
147
76
50
Image Speed 1 / 1
000 0
High
Shift
14:22:56
2001/05/23(Wed)
ZM
The available image has been set to NORM/ZOOM mode. Another form of a zoomed picture is
available from; Bottom Lock, Bottom Discrimination, Normal/Zoom or Bottom Lock. To change the
setting, refer to Para 7.2.2 “Registering ZOOM type”.
NOTE:
1. These modes are dual display, available only on the same frequency.
The Bottom Zoom image is displayed on a single screen only
