Chapter 7 CVS-842/852/843
Functional Registration Operation Manual 
7-6 93132692-00
7.2.2 Registering functions to USER 3
(1) Press the MENU key and displays the menu window.
(2) Select User 3.
(3) Select a User 3 display mode.

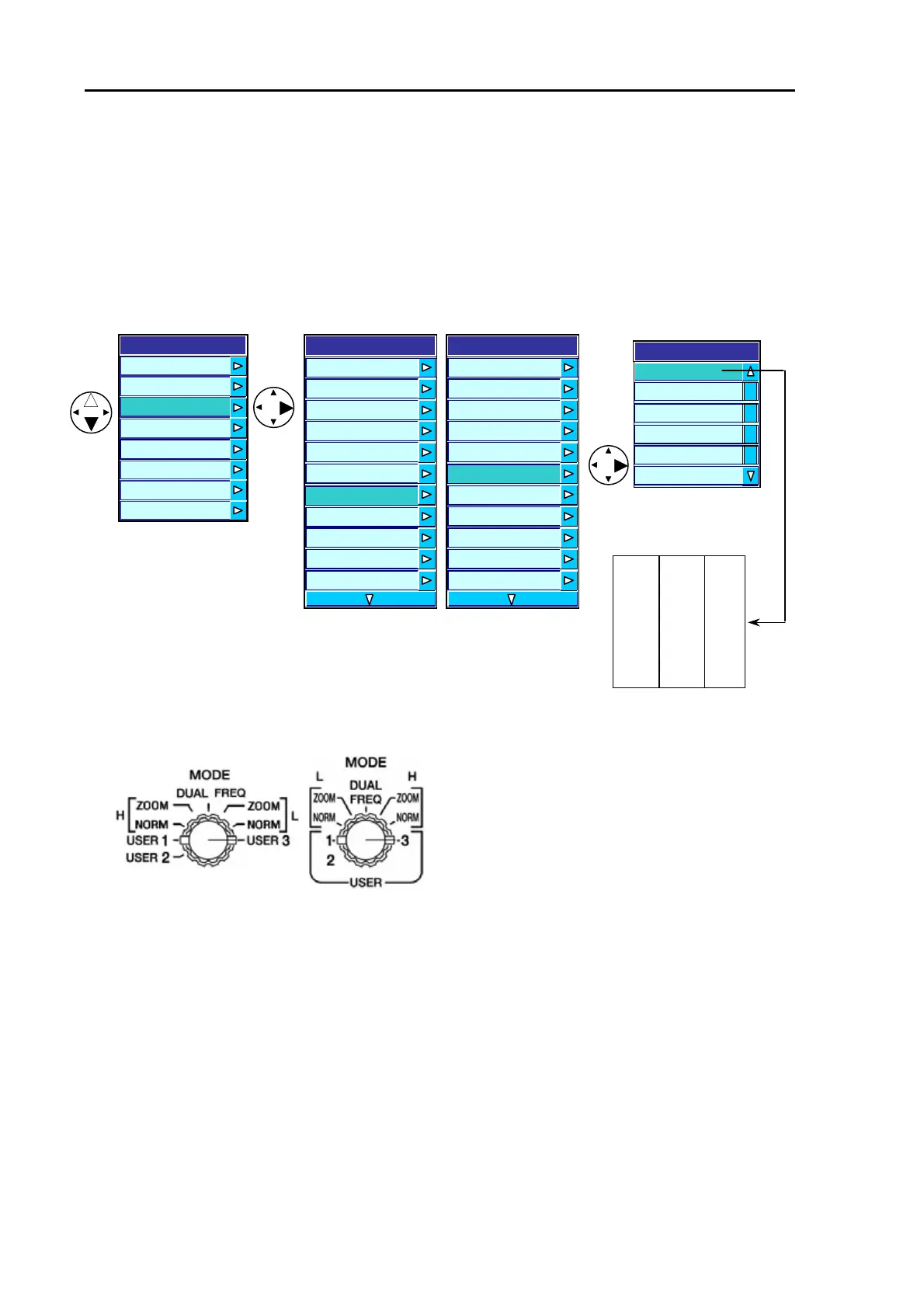

The menu window and the User 3 windows are as shown below.
(1) (2) (3)







 A 3-screen layout

CVS-842/852 CVS-843 H(1) H(2) L
Switch settings for the 3-screen mode
(4) Select USER 3.





CVS-842/852 CVS-843
(5) Setting the 3-screen mode is now finished.
7.2.3 Registering a ZOOM type
There are four types of the zoomed image, BTM, BD, ZOOM and B.Z. which can be applied to
ZOOM mode, selected by the MODE switch.
The abbreviations of these terms are as follows:
BTM：Bottom Lock (Dual screen)
BD: Bottom Discrimination (Dual screen)
ZOOM: Zoom (Dual screen)
B.Z. Bottom Zoom (Single screen)
