4.6.2 Flush mounting
(1) Cut a rectangle opening. Refer to Figure 4.6 or Figure 4.7 for dimensional detail.
(2) Loosen two (2) fixing knobs that fasten the display unit onto the mounting bracket.
(3) Remove four (4) plastic screw covers, which are fitted on each corner of the display front face.
(4) Put the display on the opening and fix with four (4) tapping screws. In case you use M4 screws
to
fix the display, select an appropriate screw length that best suits fixing the unit to the panel
thickness.
(5) Refit the coverings removed in step (3).

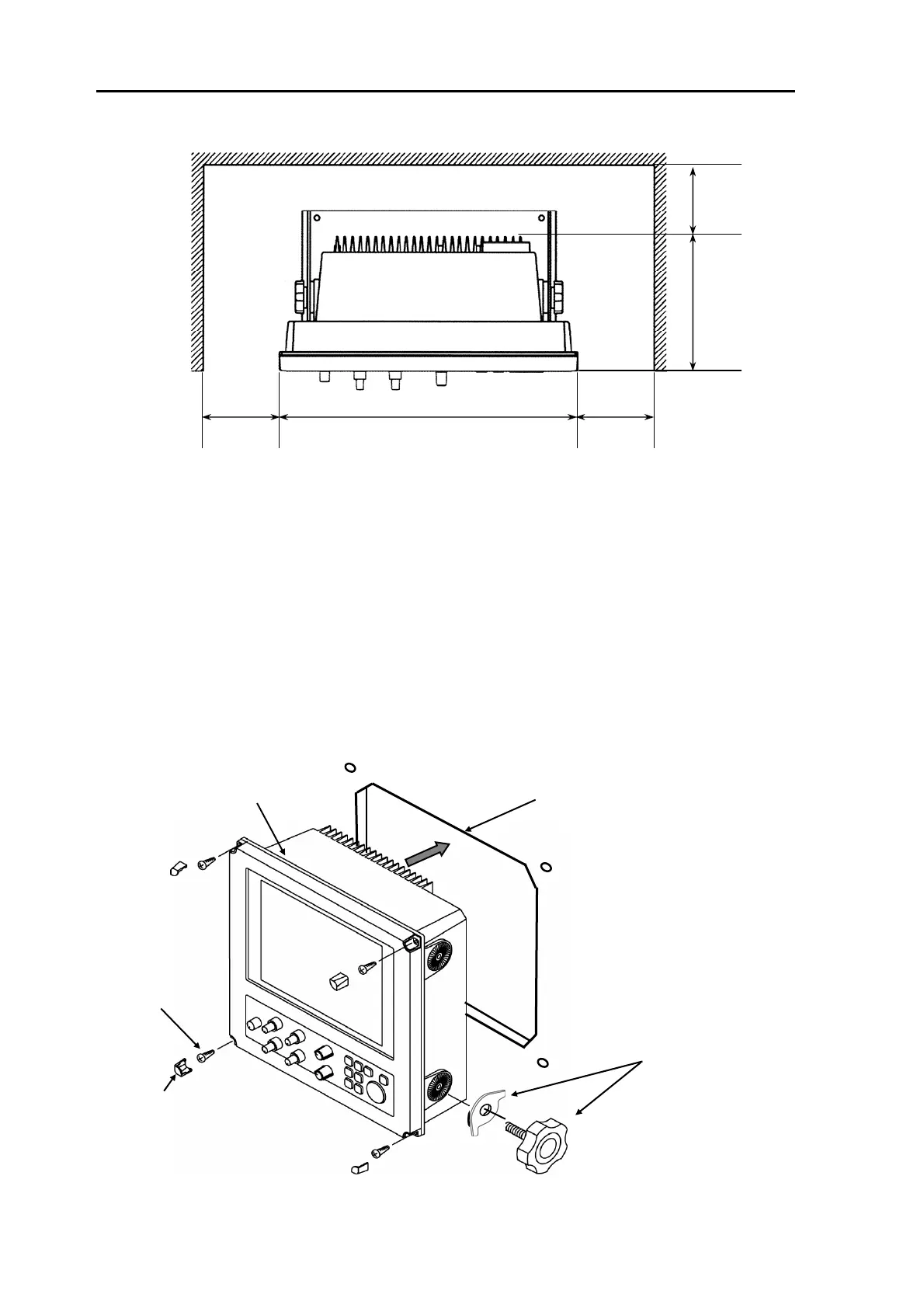

Figure 4.4 Service space required for CVS-852
224.5
(8 7/8)
100
(3 15/16)
Unit in mm (inch)
100
(3 15/16)
390
(15 3/8)
100
(3 15/16)
Figure 4.5 Fitting detail of CVS-842/852/843
Before installing the unit, remove
a washer and a knurled fixing bolt
attached on both sides of the
display.
Display Unit
Opening for installation:
CVS-842/843: Refer to figure 4.6
CVS-852 : Refer to figure 4.7
Screw covers (4 pcs)
Fixing screws
(M4 screws, 4
cs
