CVS-842/852/843 Chapter 4
Operation Manual Installation
Conduit pipe (SGP-1 1/2)
This pipe should be
extended to the draft line o
r
to the junction box.
Transducers
Protruding amount 300mm
Plate or rod to protec
t
knocking the nets o
r
ro
p
es
Transducer
TD Enclosure (Rectifying Tank)
ＢＯＷ
Cable gland

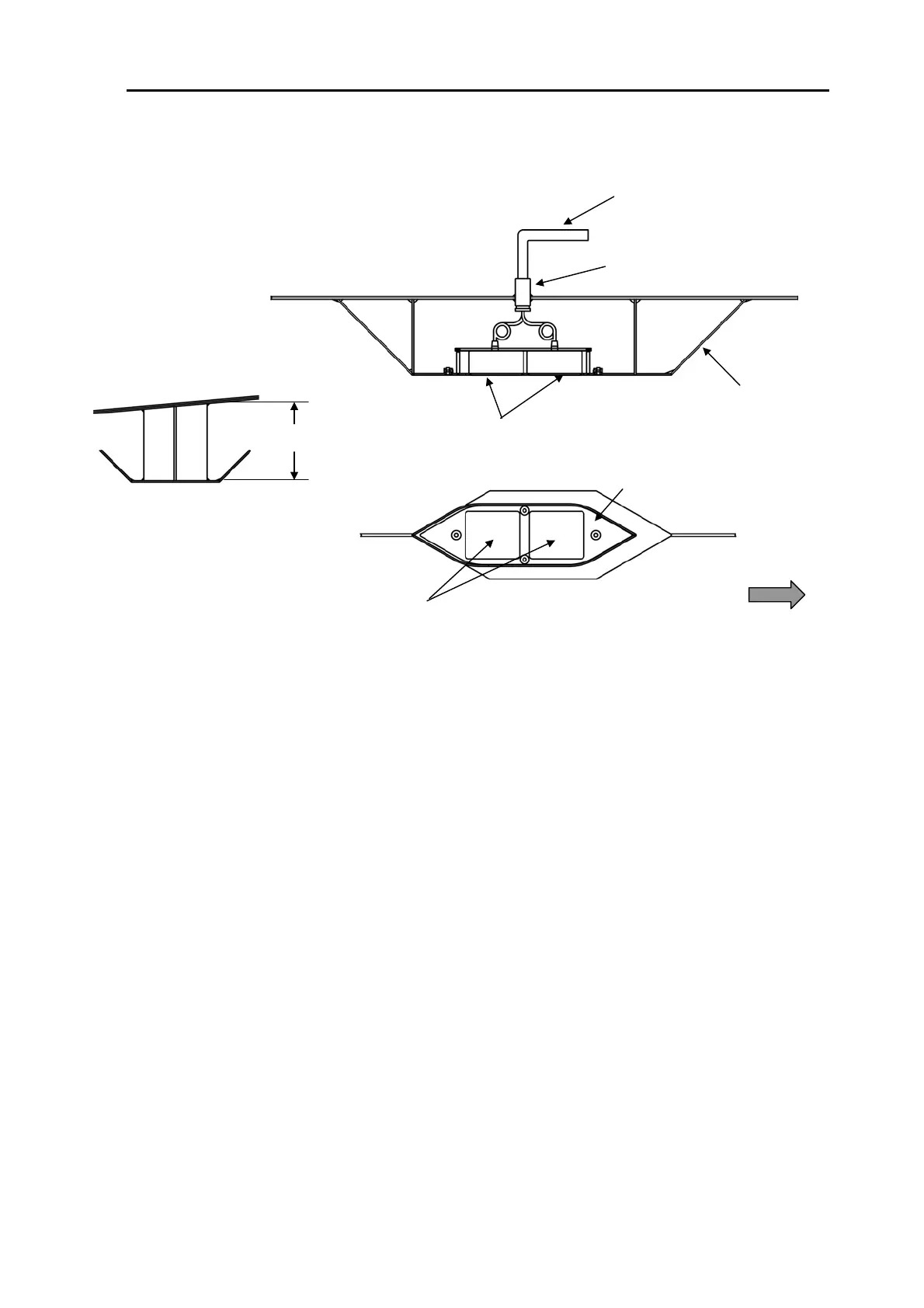

Figure 4.18 An example of through-hull transducer installation
4.9.2 Adjustments after installation
Before you turn the unit on, check the following points to make sure the CVS-842/852/843 operates
properly.
(1) Is the ship’s supply voltage and current within the rated range?
(2) Is the transducer wiring normal? No wrong connections, no short circuits, etc?
(4) Are the High and Low frequency transducers properly connected to their mating terminals?
(5) Are the cables routed and connected properly according to Para. 4.5 “Cable routing and
connections”?
93132692-00 4-13
