Chapter 4 CVS-842/852/843
Installation Operation Manual
4.6 Display Installation
The display unit is designed for table mount and flush mount. Refer to the following descriptions for
installation.
4.6.1 Table mounting
(1) Remove the two knurled fixing knobs that fix the display unit to the mounting bracket.
(2) Remove the display unit from the bracket and place it on a flat and safe area.
(3) Place the mounting bracket to the place where the display unit is to be installed, and fix the
bracket with four (4) tapping screws.
(4) Reset the display unit on to the bracket and fix it using the two screws that were removed in
step (1). Refer to the following figures for detail.

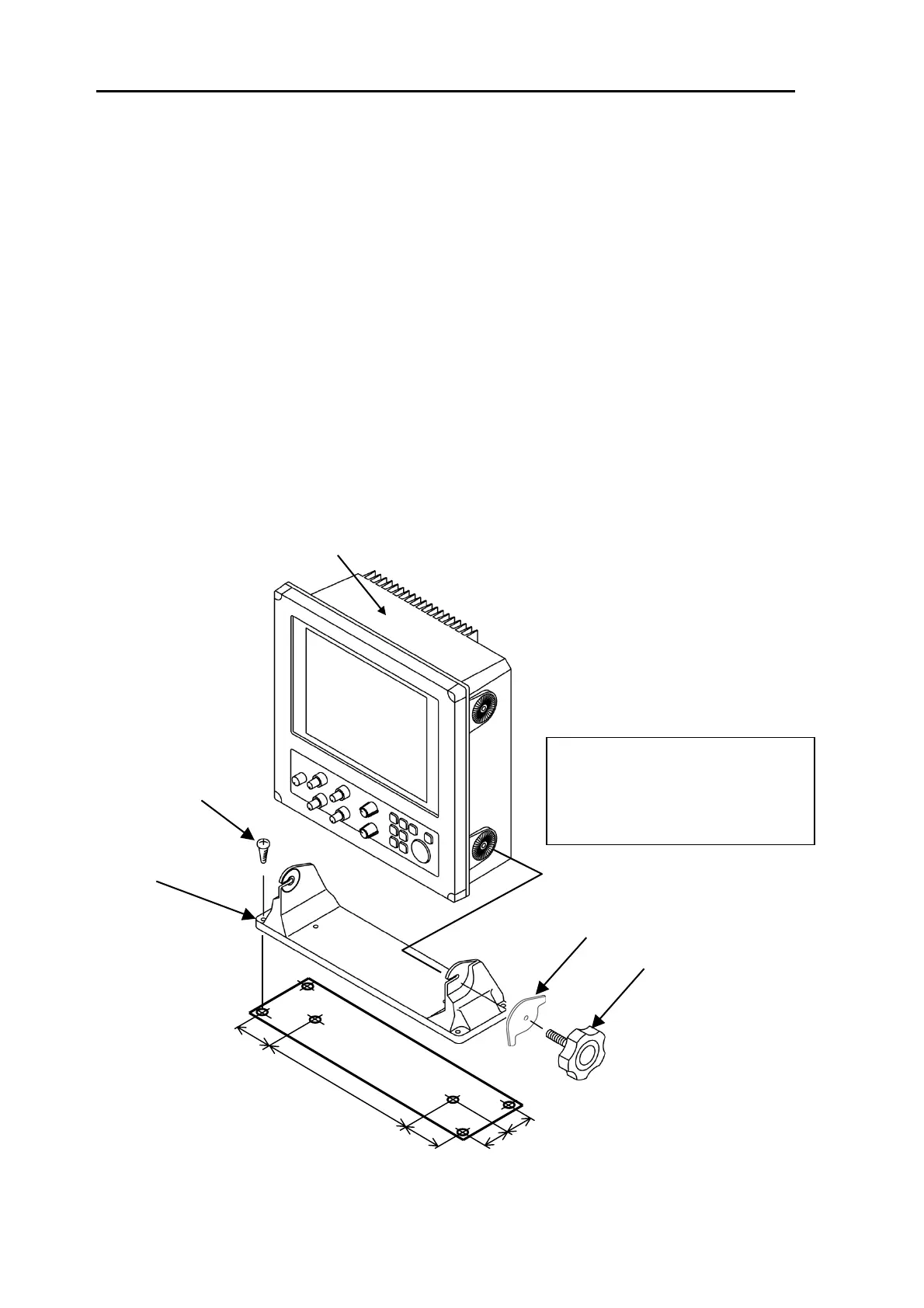

[CVS-842/843]
Display Unit
Mounting bracket
Fixing screws
(M5 screw, 6 pcs)
The dimensions of CVS-842 and
CVS-843 are identical. The fitting
details shown here can therefore
be used for CVS-842 and
CVS-843.
Knurled fixing bolt
Washer
60
(2 23/64)
47 (1 27/32)
37 (1 29/64)
240
(9 29/64)
60
(2 23/64)
Unit in mm (inch)
Figure 4.1 Fitting detail of CVS-842/843
4-2 93132692-00
