(3) To change the VRM control
from one to the other, use the
following procedure:
(4) To activate the left VRM,
press the LEFT arrow key and
the RIGHT VRM, press the
right arrow key.

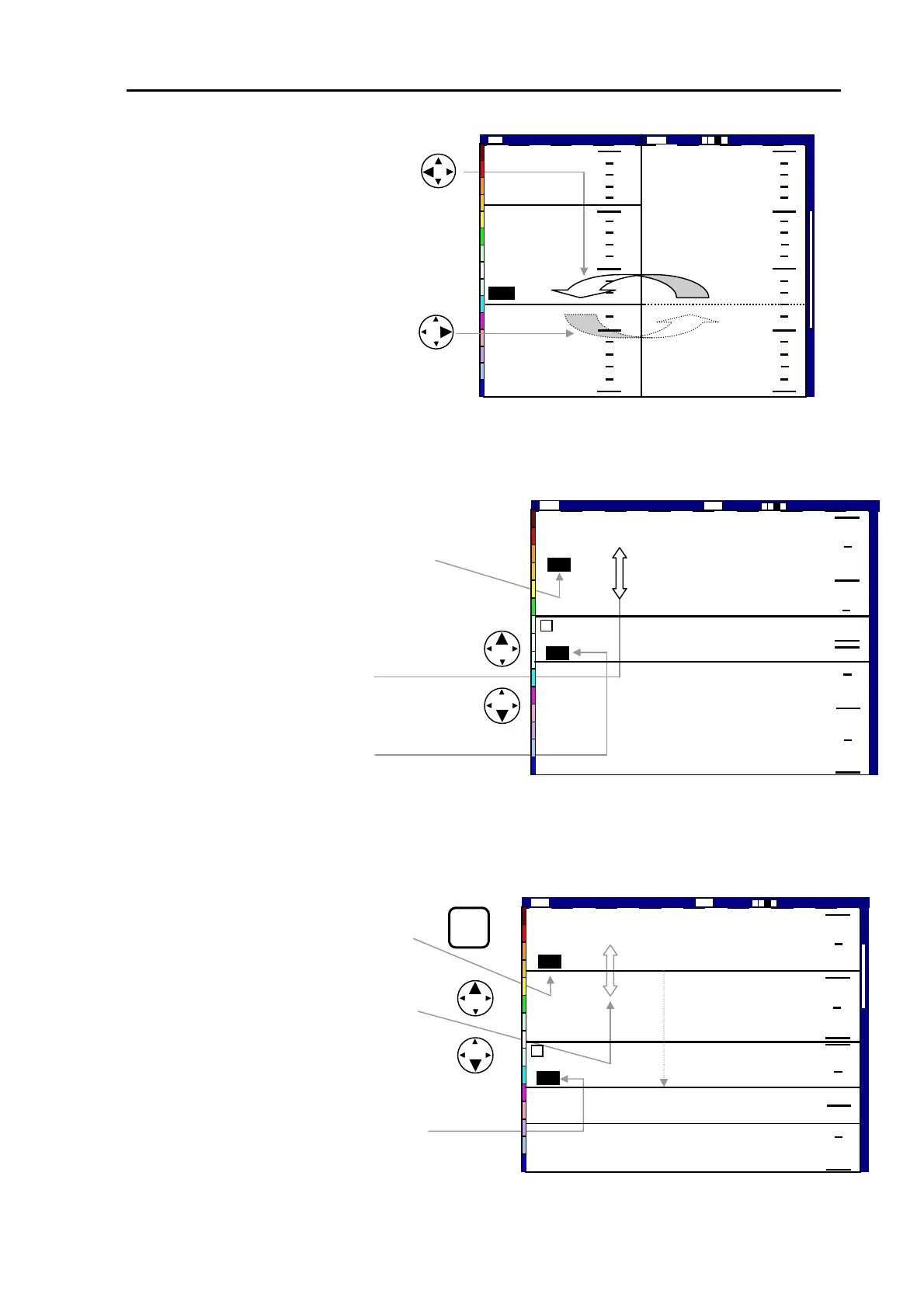

Figure 5.21 Operating the VRM in Vertical Split, NORM/ZOOM image mode (2)
5.4.2.3 Horizontal split screen, Dual Frequency mode
(1) Press the VRM key. The last active
VRM digital display will be highlighted.
(2) Press the UP or DOWN cursor key to
move the VRM up or down. The VRM
depth will be shown in the VRM digital
window.
(3) In case VRM stretches from one screen
to the other, the VRM digit display indicates
200
0
100
100
200
0
130
2001/05/23 (Wed)
Image Speed 1/1
14:22:56
Shift
0000
Low
95
High
L
75
the depth of the new screen.
Figure 5.22 Operating the VRM in Horizontal Split, Dual Frequency mode
5.4.2.4 Horizontal split screen, NORM/ZOOM image mode
(1) Press the VRM key. The last active
VRM digital display will be highlighted.
(2) (2) Press the UP or DOWN cursor
key to move the VRM up or down.
The VRM depth will be shown in the
VRM digital window.
(3) In case VRM goes beyond from one
screen to the other, the VRM digit display
indicates the depth of the new screen.
VRM
Image Speed 1/1
130
2001/05/23 (Wed)
14:22:56
Shift
0000
Low
95
High
125
0
200
Moving VRM from uppe
r
screen to lower screen
Z
75
100
95
Figure 5.23 Operating the VRM in Horizontal Split, NORM/ZOOM mode
