Koden CVS-852 - Setting the STC; Setting the STC Amplitude; Setting the STC Depth

Chapter 5 CVS-842/852/843
Basic Operation Operation Manual
5-6 93132692-00
5.2.2 Selecting NORMAL image mode
(1) Turn the MODE switch to NORMAL (High or Low).
(2) The selected image mode display mode will be shown in the center of the screen and it
disappears automatically in approximately 5 seconds. The display mode will be shown in the
upper left corner of the screen, i.e. “H” for High Frequency and “L” for Low Frequency.
Selected image mode letter is shown here.
CVS-842/852
CVS-843

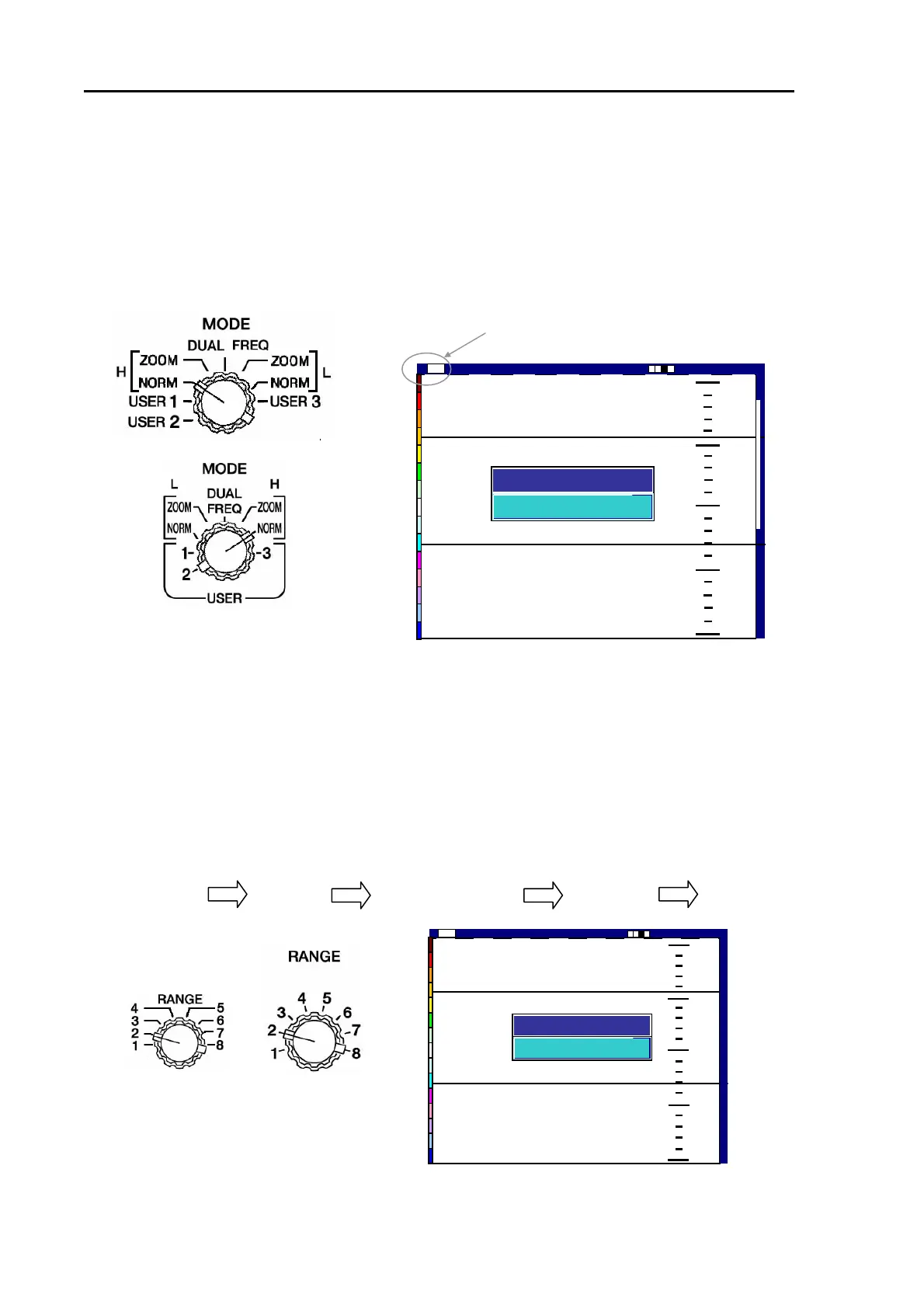

Figure 5.7 Setting and image of NORMAL image mode
5.2.3 Selecting the depth range
(1) Turn the RANGE switch to select the desired depth range, which is shown on the screen for
approximately 5 seconds.
NOTE: Available depth range can be registered to each range number, which is printed around the
range scale selector switch. To do so, enter the menu in the following order: For detail, refer to Para.
7.1 “Depth Range registration”.
MENU SYSTEM Depth Range Preset SW1 – SW8 ENTER
CVS-842/852 CVS-843
43
130
0
50
100
1
1
5
5
0
0
2
2
0
0
0
0
High
2001/05/23(Wed)
Image Speed 1/1
14:22:56
Shift
000 0
Image Mode
H Normal
43
130
0
50
100
150
200
High
2001/05/23(Wed)
Image Speed 1/1
14:22:56
Shift
000 0
Depth Range
200
Figure 5.8 Selecting a depth range and its depth display
