CVS-842/852/843 Chapter 4
Operation Manual Installation
16 (5/8)
308 (12 1/8)
274 (10 13/16)
308( 12 1/8)
268(10 9/16)
Fixing holes for M4 screw (4 pcs)
16 (5/8)
306 (12 1/16)
16 (5/8)
300 (11 13/16)
16 (5/8)
Unit in mm (inch)

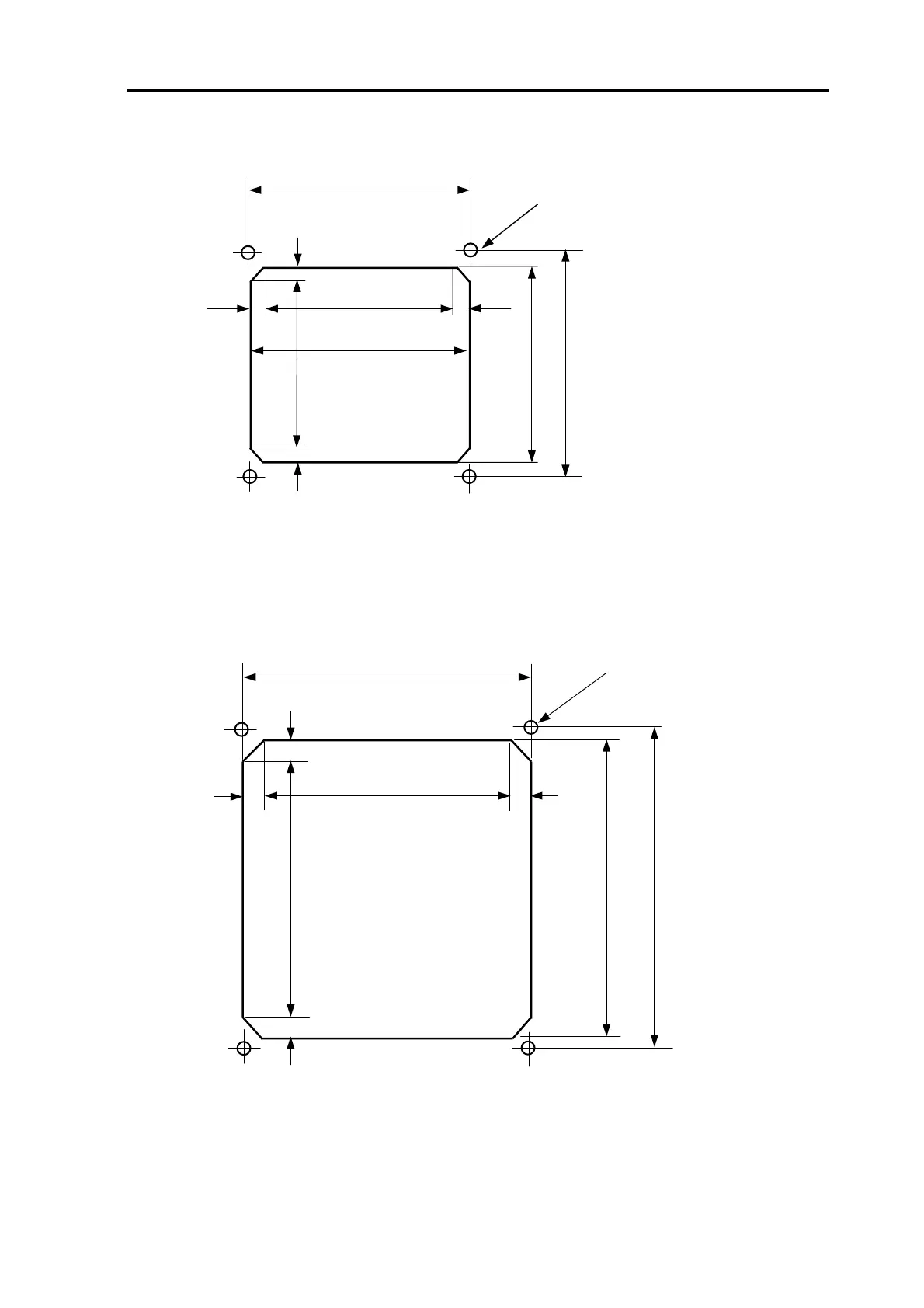

Figure 4.6 Dimensions of opening and fixing holes for CVS-842/843
378 (14 7/8)
Fixing holes for M4 screw (4 pcs)
9 (3/8)
360 (14 3/16)
418 (16 7/16)
410 (16 1/8)
9 (3/8)
9 (3/8)
392 (15 7/16)
Unit in mm (inch)
9 (3/8)
Figure 4.7 Dimensions of opening and fixing holes for CVS-852
