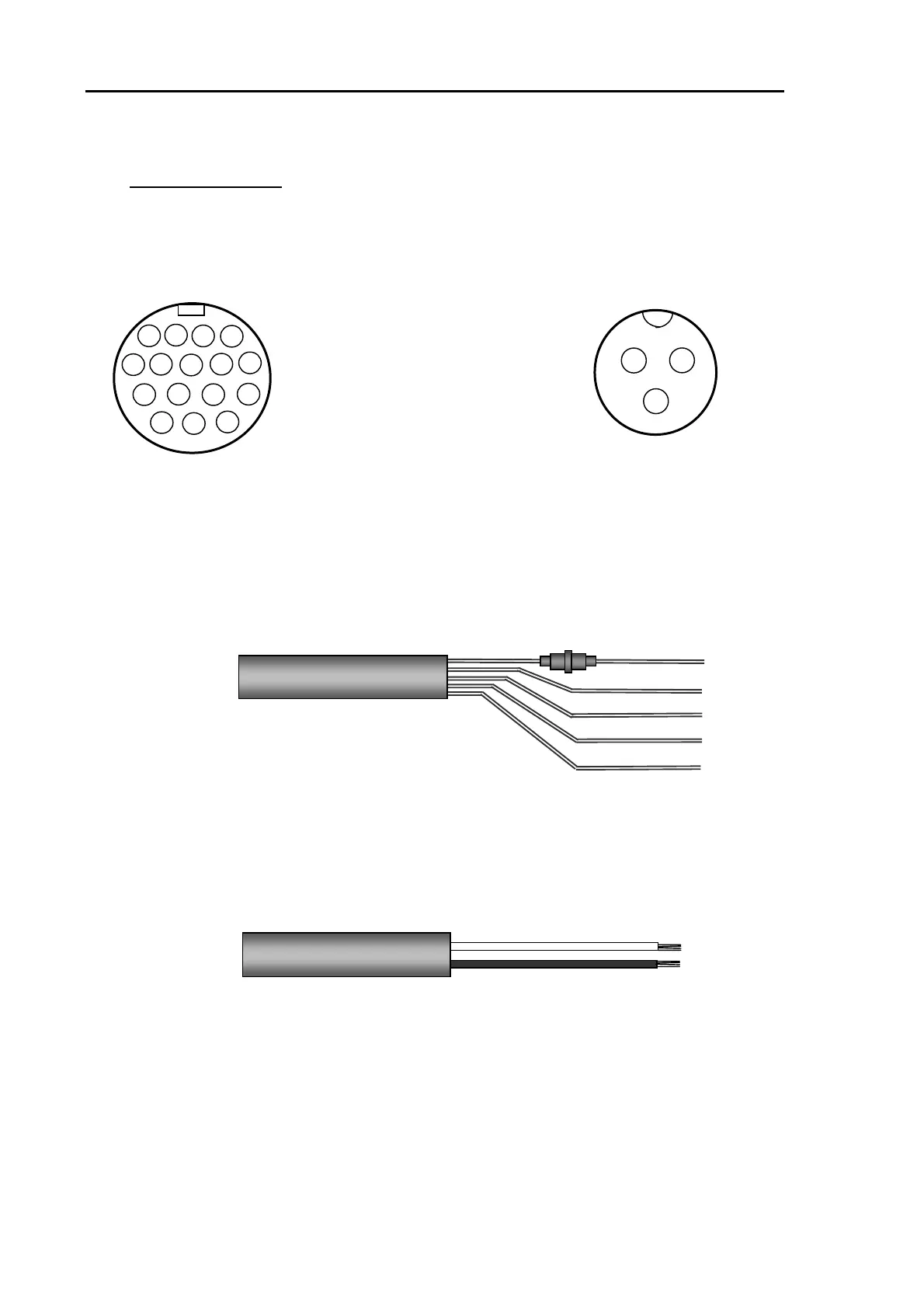

Cable connections
Display & TX/RX
J1
17. High Freq TX Pulse Width (TX PW(H))
18. High Freq TX Out ID (TX PO(H))
19. High Freq TX Freq ID (TX FO(H))
20. High Freq STC (STC(H))
21. Ground (GND)
22. High Freq Detect Signal (AF SIG(H))
23. Low Freq TX Pulse Width (TX PW(L)
24. Low Freq TX Out ID (TX PO(L)
25. Low Freq TX Freq ID (TX FO(L))
26. Low Freq Detect Signal (AF SIG(L))
27. Power Control Signal (P.S.CONT)
28. Ground (GND)
29. Low Freq STC (STC(L))
30. Ground (GND)
31. High Freq Output Reduction (P.DOW(H))
Low Freq Out32. put Reduction (P.DOW(L))
16
15
14
13
12
11
8
6
7
4
3
2
5
1
10
9
DC Input
J2
3
2
1
1. DC+
2. DC -
3. NC
4. 8.3 Connecting DC Power Cable (CW-253-2M) to DC Main Supply
NOTE: Insulate the red and green wires using PVC tape.
White
Black
Gray
Red
Green
To Display Unit
DC+
DC -
GND
Not used
Not used
Figure 4.12 Connecting Display Unit to DC Main Supply
4.8.4 Connecting DC Power Cable (CW-89-3M) to DC Main Supply
White
Black
DC+
DC -
To TX/RX Unit
Figure 4.13 Connecting TX/RX Unit to DC Main Supply
