12

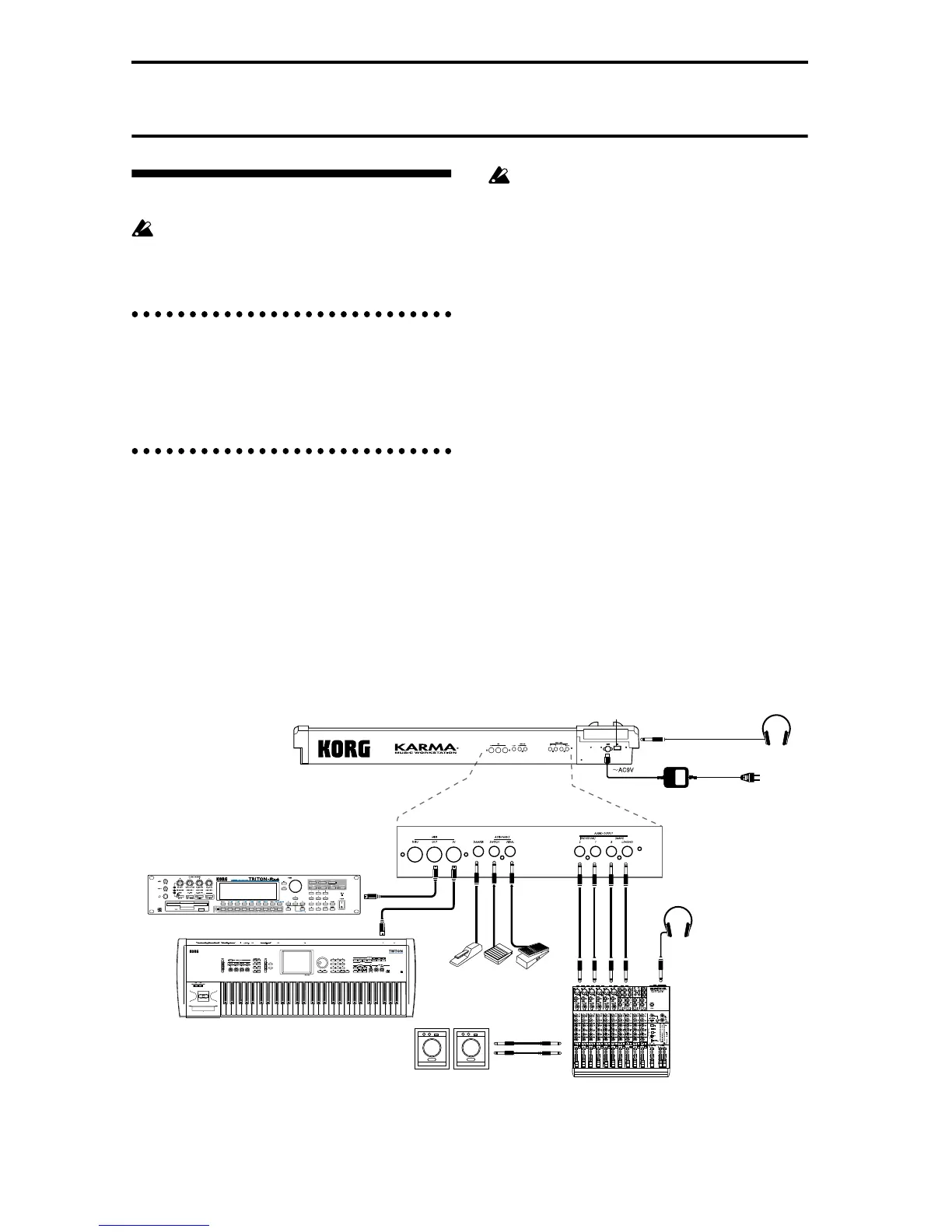

Connections
Connecting audio equipment etc.
Connections must be made with the power turned
off. Please be aware that careless operation may
damage your speaker system or cause malfunc-
tions.
1. Connecting the power cable
● Connect the included AC/AC power supply to the
AC power supply inlet of this instrument, and
then connect the other end of the cable to an AC
outlet.
2. Connecting audio output devices
AUDIO OUTPUT (MAIN) L/MONO, R,
(INDIVIDUAL) 1, 2
Here, you can connect a set of amplified monitor
speakers or your audio system to output this instru-
ment’s sound.
If you wish to use the AUDIO OUTPUT (INDIVID-
UAL) 1–2 jacks of this instrument, we recommend that
you use a mixer.
If you playback this instrument through your ste-
reo audio system, be aware that high volumes may
damage your speakers. Be careful not to raise the
volume excessively.
● Connect the AUDIO OUTPUT (MAIN) L/MONO
and R jacks to the INPUT jacks of your powered
monitor system, mixer etc.
L/MONO and R are the main outputs. If you are
outputting in stereo, make connections to the
(MAIN) L/MONO jack and the R jack. If you are
outputting in monaural, make connections to the
(MAIN) L/MONO jack. We recommend that you
playback in stereo if possible.
● If you wish to output from the AUDIO OUTPUT
(INDIVIDUAL) 1, 2, jacks, connect these jacks to
your mixer, and then connect the mixer output to
the INPUT of your powered monitor system etc.
For details on the output of each jack (
☞p.97–“Rout-
ing”).
Headphones
When using headphones, plug them into the head-
phones jack located on the front panel.
INPUT
INPUT
OUTPUT
PHONES
Headphones
Headphones
AC power supply inlet
to an AC outlet
Power switch
Powered monitors, etc.
PHONES
