Introduction

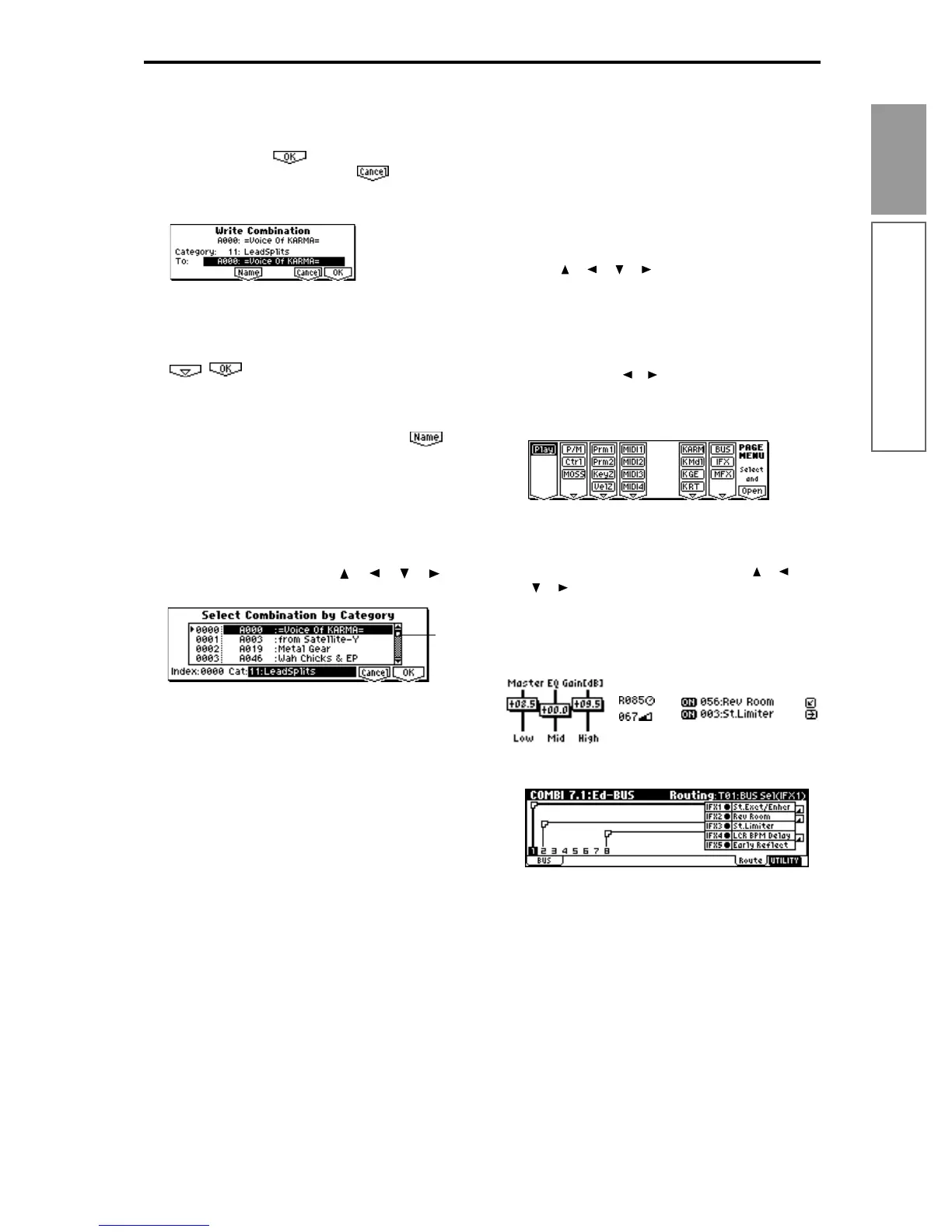

Objects and functions in the LCD
the execution or operation screen. In some cases, a
dialog box will appear. Follow the directions
shown in the dialog box.
To execute, select (press the [F8] key). To
cancel without executing, select (press the
[F7] key). The dialog box will close. The [EXIT] key
is equivalent to “Cancel,” “Done,” or “Exit.”
* Function buttons 2
Press the function key [F1]–[F8] nearest this button
to execute the function.
:
Utility menu, etc.
* Text dialog box
When you use the function keys to select
etc, a text dialog box will appear.
In this dialog box you can rename text (e.g., the
name of a program, combination, or song). (
+p.39)
* Scroll bar
This indicates that the list contains selections or
parameters that cannot all be shown in the screen
at once. Use the cursor keys [ ], [ ], [ ], [ ] to
move within the list.
* Page menu
In Combination, Program, Sequencer, Song Play, or
Global modes, pressing the [MENU] key will dis-
play a list of the pages in that mode. (The page in
which you where when you pressed the [MENU]
key will be highlighted.)
To select a page, press the nearest function key
[F1]–[F7]. By pressing the same key you can move
consecutively downward. You can also use cursor
keys [ ], [ ], [ ], [ ] to move left/up/down/
right.
You can also move to the desired page by holding
down the [MENU] key and using numeric keys
[0]–[7] to enter a two-digit page number. In addi-
tion, you can hold down the [MENU] key and use
the cursor keys [ ] [ ] to move in steps of one
page; in the example shown below, this would be
Play Æ P/M Æ Ctrl Æ MOSS (if the EXB-MOSS is
installed) Æ Prm1 Æ ... etc.
* Other objects
To use slider- or knob-shaped objects, or chain
parameter values, use the cursor keys [ ], [ ],
[ ], [ ] to select the desired item, and use the
VALUE controllers to adjust the value.
Other types of objects are shown in the effect rout-
ing screen. (
+p.97)
Scroll
bar
Knobs ChainSliders
Routing
Objects and functions in the LCD screen
