7-14
Setup Mode
The Setup Editor
SW Pedal 1 & 2, Arp. switch, Arp. latch sw, Switch 1-10

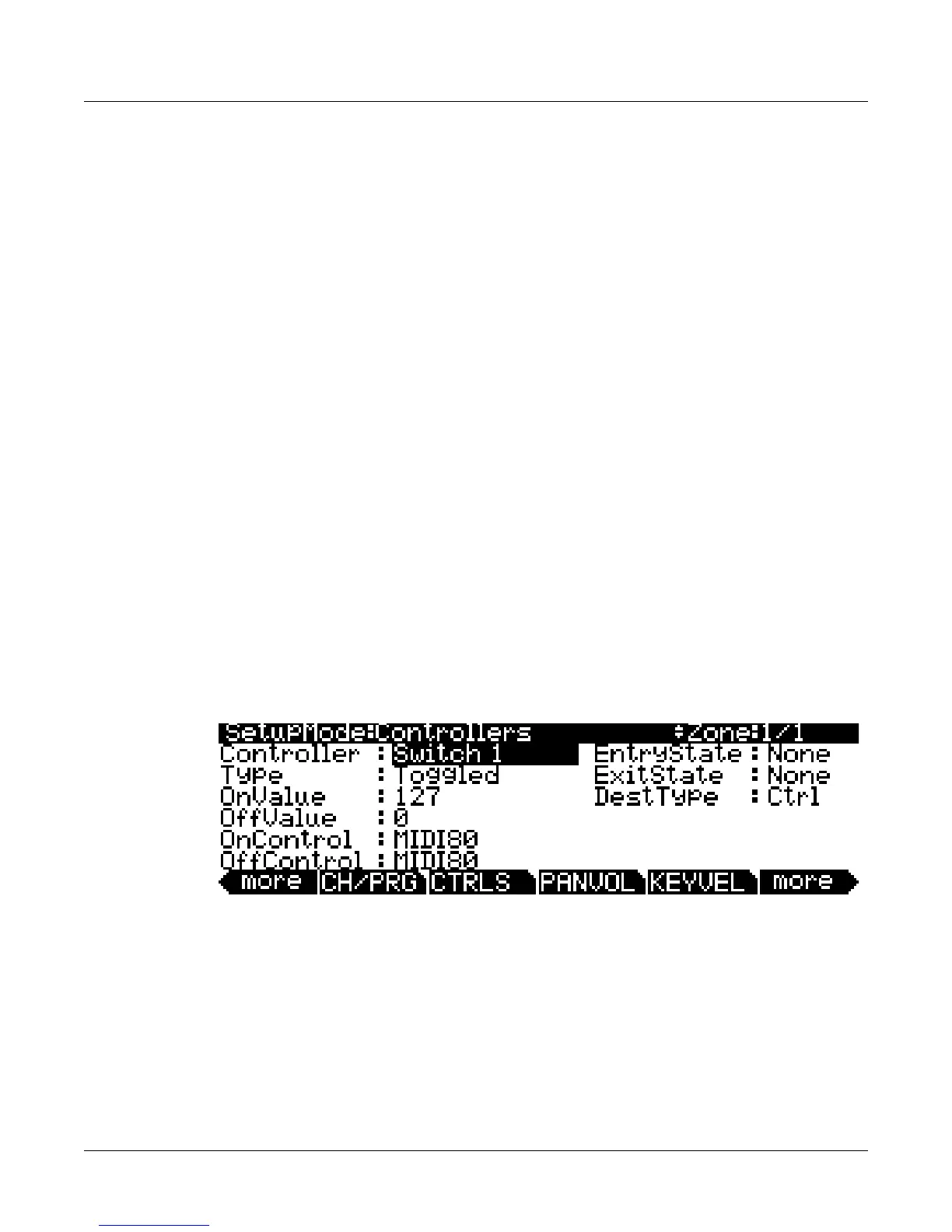

TheparametersforSWPedal1&2,Arp.switch,Arp.latchsw,andSwitch1‐10are thesame.See
andexampleoftheSwitch1pagebelow.
UseSWPedal1&2toassignparametersforfootswitchpedalswhichcanbeconnectedtothe
PC3LEviajacksin
thepedalssectionontherearpanellabeledSW1andSW2.ThePC3LEcomes
withonepianostylesustainswitchpedal,seePedals on p age 1‐4forinformationoncompatible
pedals.SWPedal1&2areoftenusedtocontrolsustainandsostenuto,thoughtheycanbe
assignedtoanyother
on/offswitchfunction.
ThePC3LEhas12switchesthatyoucanassignfunctionsto.TheseswitchesincludetheArp.
switchandArp.latchsw(locatedabovethePitchandModWheels,)aswellasthefivebuttons
labeledAssignableSwitches,locatedabovetheassignableknobs.Eachofthefivebuttonsabove
theknobscanperformthefunctionoftwoseparateswitches;accesseachfunctionbyusing the
shiftbutton(totheleftoftheseswitches.)WhenthetopswitchbuttonShiftLEDislit,the
switchesaccessswitchfunctions1‐5.WhenthebottomswitchbuttonShiftLEDislit,the
switches
accessswitchfunctions6‐10.YoucanuseaswitchtocontrolMIDIorotherfunctions
onthePC3LE.
Forbothpedalsorswitches,youcanusetheTypefieldtoassignthecontroltoMomentaryor
Toggled.IfyouchooseSW(Momentary)intheTypefield,the controlwillsend
thevalueforits
OnValueparameterwhenpressed,andthevalueforitsOffValueparameterwhenreleased.If
youchooseSW(Toggled)intheTypefield,thecontrolwillalternatebetweensendingthevalue
foritsOnValueparameterwhenpressedandreleased,andthevalueforitsOffValueparameter
the
nexttimeitispressedandreleased.TheparametersforSW(Momentary)andSW(Toggled)
behavethesameasidefromthatdistinction.
SW(Momentary) issuitedforusewithfunctionsthatneedtoturnonandoffquicklyforshort
periodsoftime,likesustainorportamento.SW(Toggled)issuited
forusewithfunctionsthat
youwillwanttoleaveonoroffforlongerperiodsoftime,suchasarpeggiatoron/off.Seebelow
forparameterexplanationsofbothswi tch types:
DestType
ThisfielddetermineswhichtypeofcontroldestinationswillbelistedintheOnControland
OffControlfields(seebelow.)ChooseParamsifyouwouldliketocontroloneoftheparameters
fortheprogramonthecurrentsetupzone,suchaparameterforaneffectintheprogram’seffects
chain,or
aparameterforaDSPfunctionsuchasafilterorLFOusedbytheprogram.The
parameterslisteddependonwhatparametersexistforthecurrentzone’sprogramandeffects
chain.ChooseCtrlifyouwouldliketocontrolaMIDIcontinuouscontrollernumber.Bydefault
thisMIDIcontinuous
controllervalueissentinternallytotheprogramonthecontroller’szone,
aswellastotheUSBandMIDIoutports.Tochangethisfromthedefault,see
Destination on page 7‐6.
