TracPhone V7-HTS User’s Guide
7
Introduction
System Overview
Your TracPhone V7-HTS is a complete mini-VSAT Broadband
communications system for mariners on the move, delivering a
seamless and consistent Internet experience. And it all comes with an
antenna that is smaller and lighter than traditional VSAT antennas.
The system consists of an antenna and Integrated CommBox Modem
(ICM) that connect to a land-based hub via a Ku-band satellite. The
hub, managed by a Network Operations Center (NOC), then provides
the link to the Internet and the terrestrial telephone network.
NOTE: A detailed wiring diagram is provided in “Wiring Diagram” on
page 157.

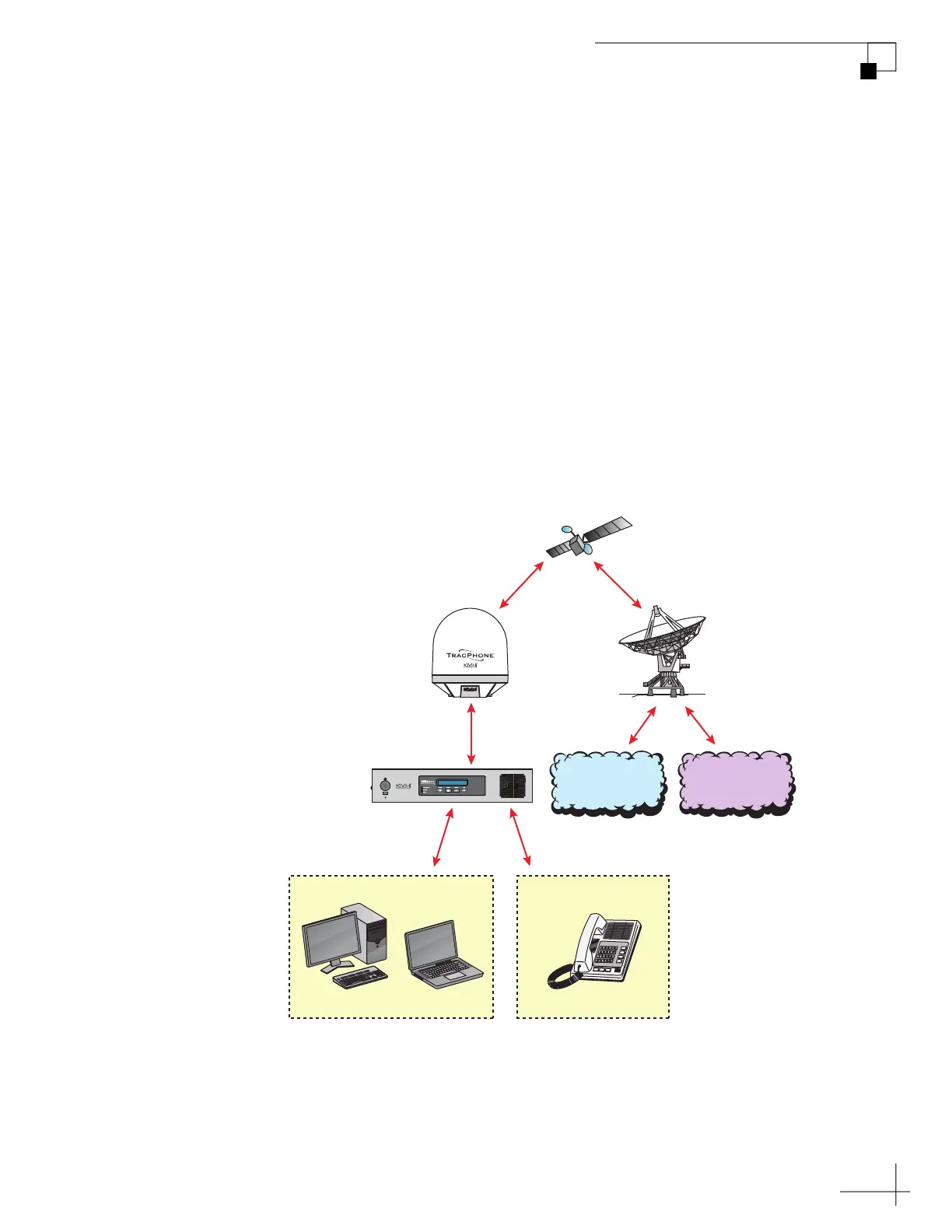

Figure 1-2 TracPhone V7-HTS mini-VSAT Broadband Network Diagram
Hub
TracPhone
Antenna
Satellite
mini-VSAT Broadband
Connection
Integrated CommBox
Modem (ICM)
VoIP ConnectionEthernet Connection
Internet
Telephone
Network
Customer-Supplied
Analog Phone
Customer-Supplied
Computer(s)

KVH Industries TracPhone V7 HTS Specifications

General

Brand	KVH Industries
Model	TracPhone V7 HTS
Category	Antenna
Language	English
