Network Configuration
Open Access HTS Configuration
In an Open Access HTS configuration, Ethernet port 1 provides
unlimited Internet access, and Ports 2 and 3 and the built-in WAP
provide high-speed Internet access, with no user logins or controls.
Port 4 is reserved for an optional KVH service such as Global Static IP.
This configuration is identical to the Static IP HTS configuration, but
without access control.

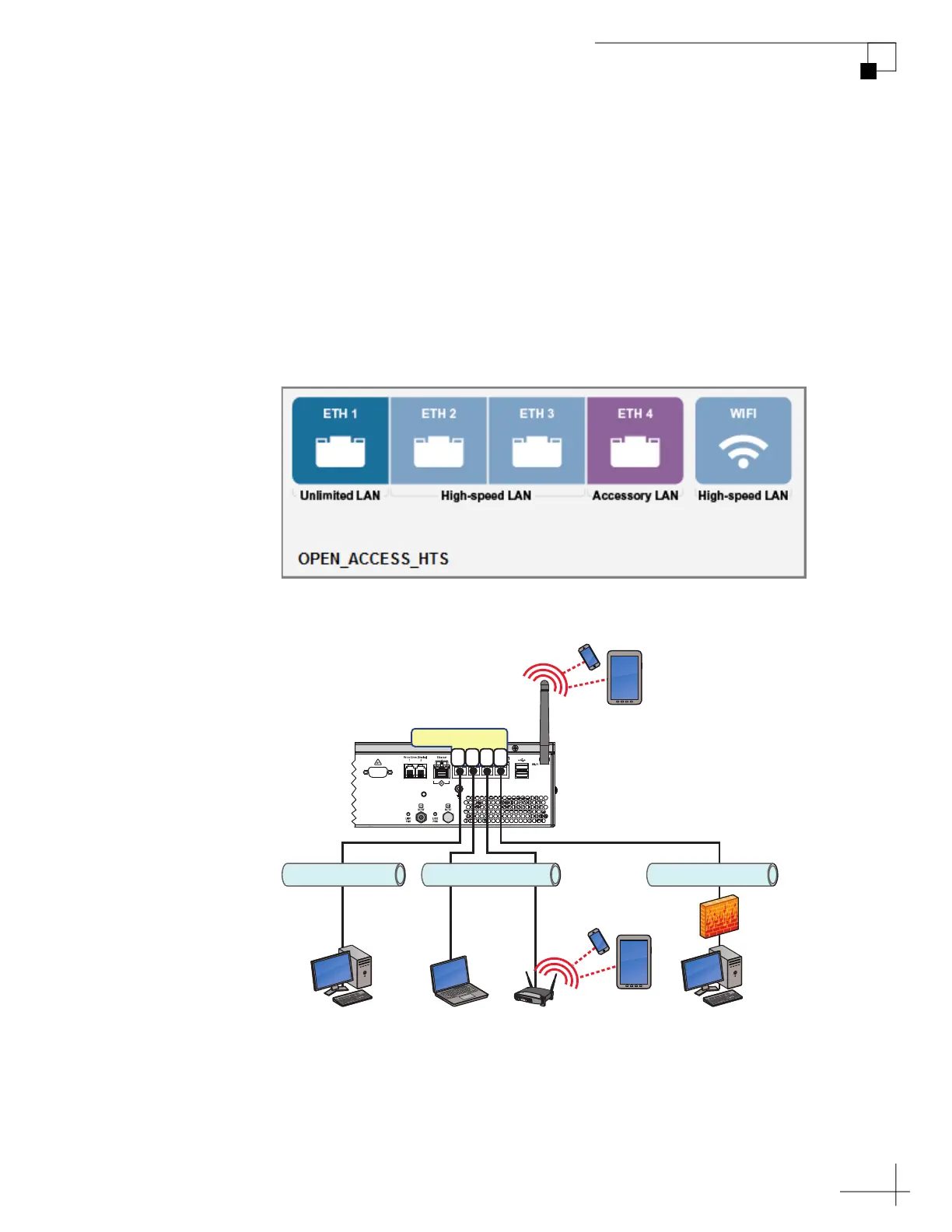

Figure 7-13 Open Access HTS Configuration
Figure 7-14 Open Access HTS Configuration Wiring Example
For details on setting up the Unlimited LAN and High-speed LAN,
refer to “Standard HTS Configuration” on page 74, except disregard
setting up user names/passwords and data allocations.
For details on setting up a Static IP address, refer to “Static IP HTS
Configuration” on page 77.
Mobile
Devices
ICM
Mobile
Devices
User Ethernet
Ops PC
1 2 3 4
Crew PC
Wi-Fi
(High-speed LAN)
WAP Engine Room PC
Firewall
High-speed LAN
Static IP
Accessory LANUnlimited LAN
