TracPhone V7-HTS User’s Guide
8
Introduction
System Components
The TracPhone V7-HTS system includes the following components:
Antenna Unit
The antenna unit provides the satellite link to the land-based hub.
Using its integrated GPS, advanced reflector technology, and gyro
stabilization, the antenna automatically locates and tracks the correct
satellite, even while your vessel is on the move.

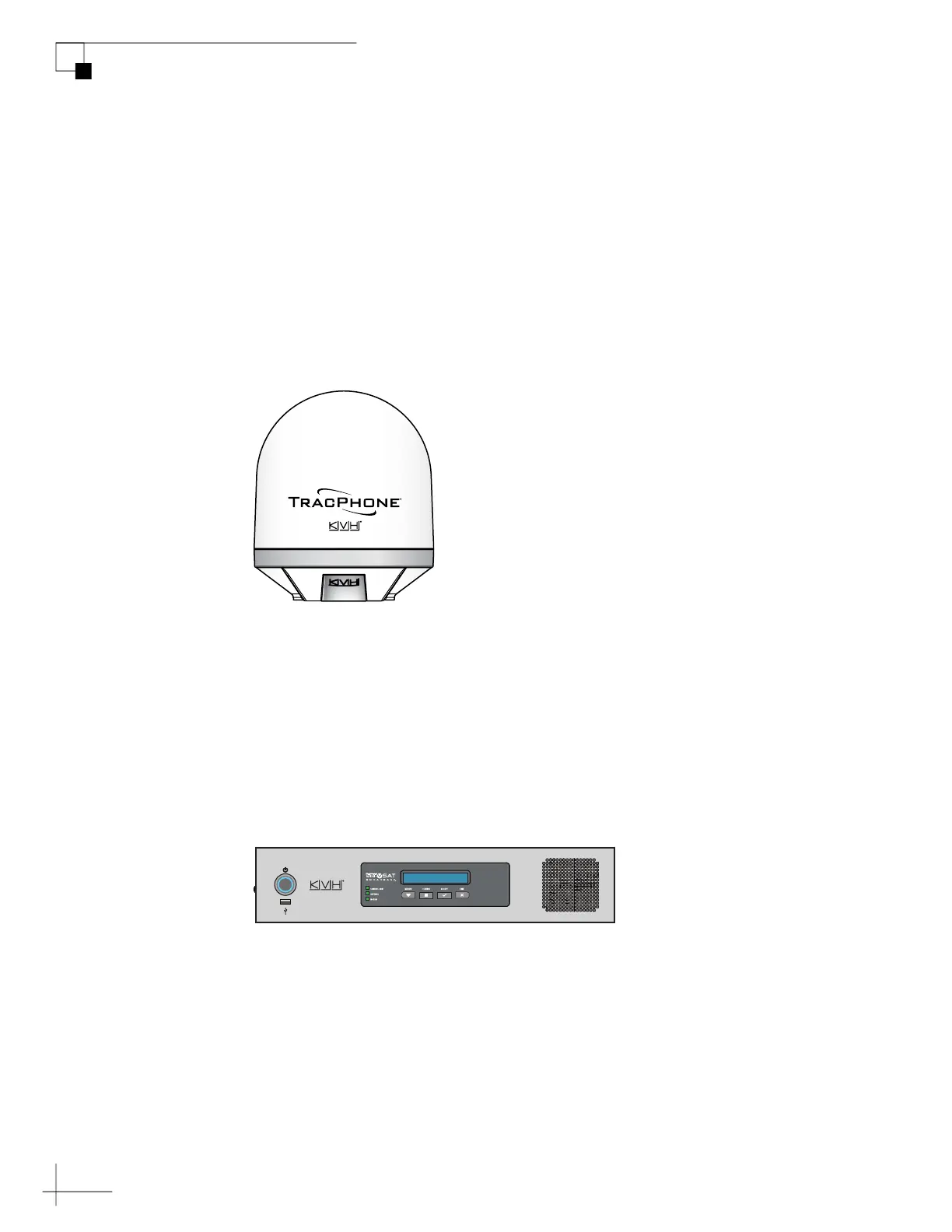

Figure 1-3 Antenna Unit
Integrated CommBox Modem (ICM)
The ICM is the transceiver and “brain” of the system. Its built-in
modem processes all incoming and outgoing data traffic. Its built-in
router and wireless access point (WAP) provide the connection to your
onboard local area network (LAN). And its easy-to-use web interface
and front panel LCD allow you to operate and configure all aspects of
the system.
Figure 1-4 ICM
