TracPhone V7-HTS User’s Guide
88
Network Configuration
4. In the Local Area Connection Properties dialog box, click the
Networking tab, select Internet Protocol Version 4, and then
click Properties.
5. In the Internet Protocol Properties dialog box, select Obtain an
IP address automatically and Obtain DNS server address
automatically. Then click OK.

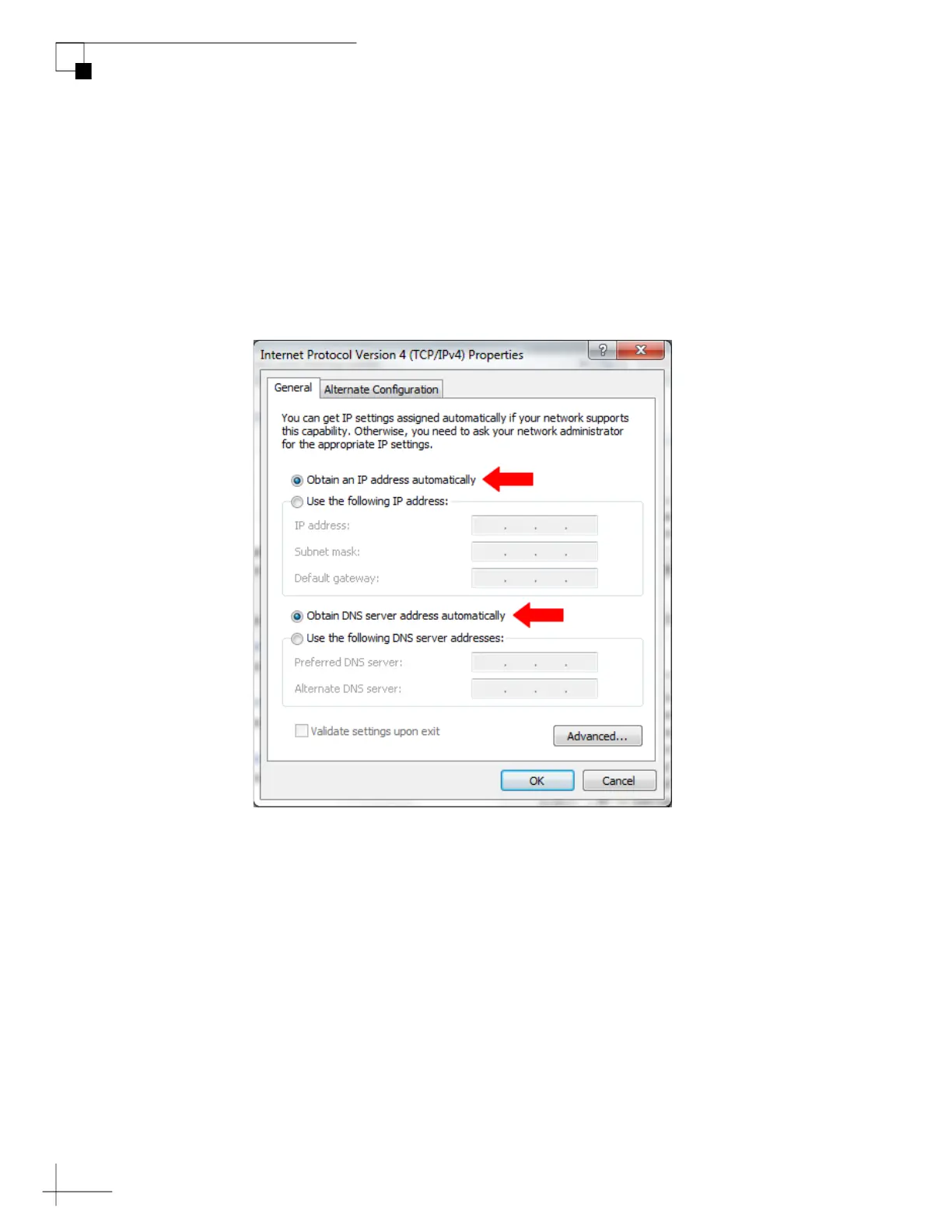

Figure 7-19 Windows 7/Windows Vista - Internet Protocol Properties
6. In the Local Area Connection Properties dialog box, click OK.
Windows XP DHCP Settings
To configure a Windows XP computer for DHCP addressing, follow
these steps:
1. In Control Panel, double-click Network Connections. You can
find the Control Panel either through the Start menu or “My
Computer.”
2. In Network Connections, double-click the Local Area
Connection for the Ethernet connection you are using for mini-
VSAT Broadband.
To Next Page
