TracPhone V7-HTS User’s Guide
37
No-Transmit Zones
Understanding the Cumulative View
The No-Transmit Zones page displays a diagram that indicates the
cumulative azimuth and elevation ranges of the no-transmit zones you
set up. The circumference of the circle indicates azimuth, while the
radius indicates elevation.
In the example shown here, the following no-transmit zones are set up:
• Zone 1 (purple) = Azimuth: 170º to 190º, Elevation: -25º to 20º
• Zone 2 (blue) = Azimuth: 15º to 55º, Elevation: 30º to 90º

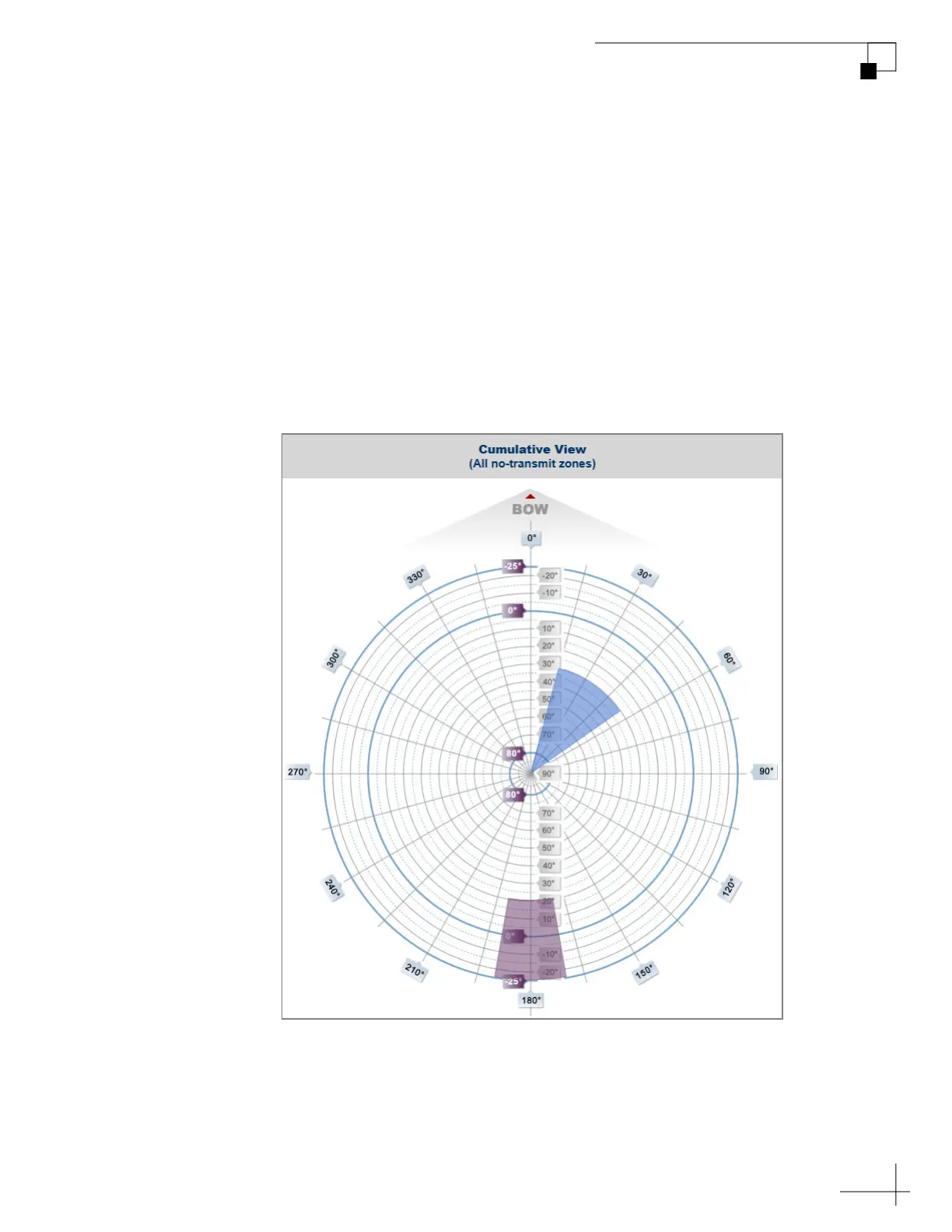

Figure 4-6 Cumulative View of All No-Transmit Zones
