9. DRIVE AND DRIVEN PULLEYS
9-4
MX’er SYSTEM

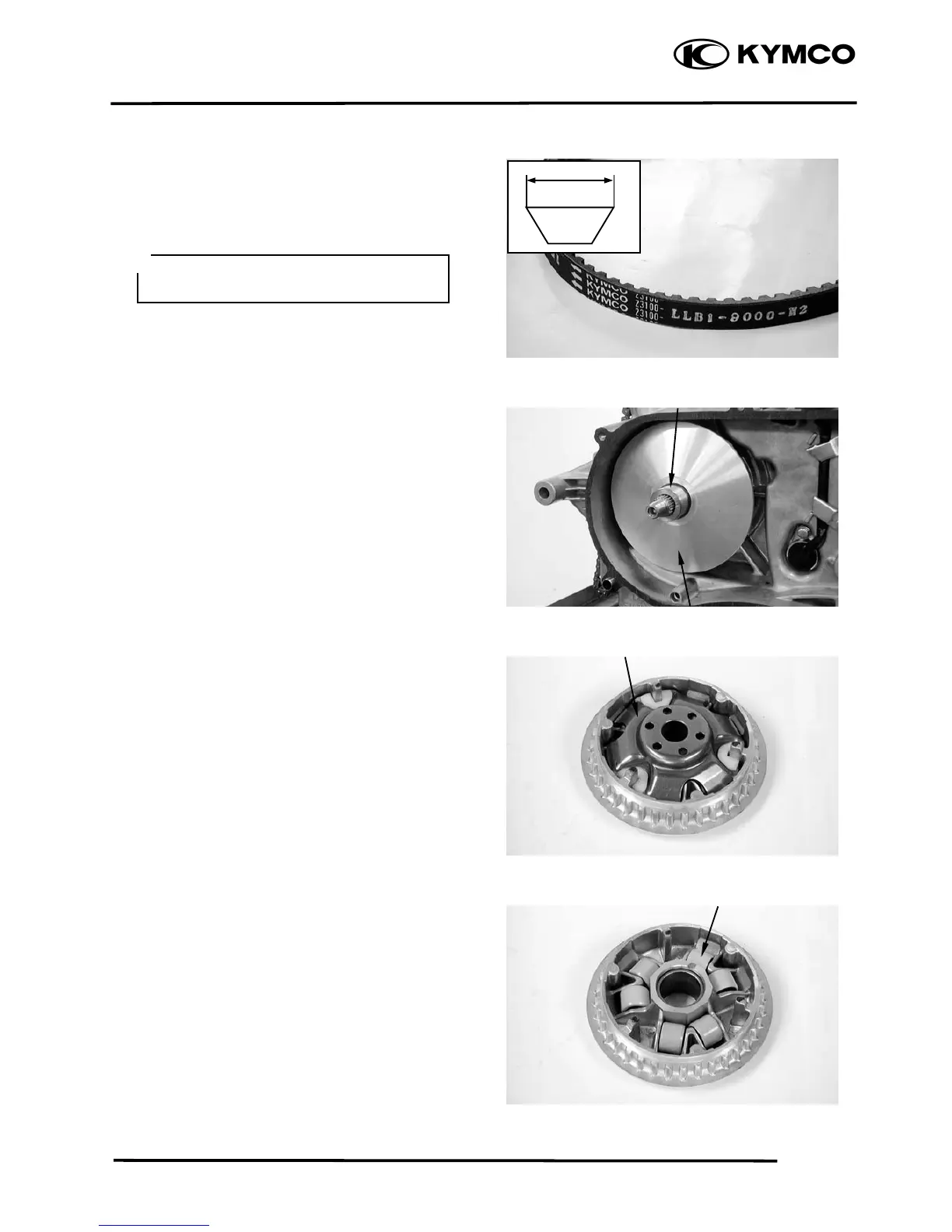

INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit: 17.0mm replace if below
Remove the movable drive face assembly.
Remove the drive pulley collar.
DISASSEMBLY
Remove the ramp plate.
Remove the weight rollers.
Use specified genuine parts for
replace-ment.
