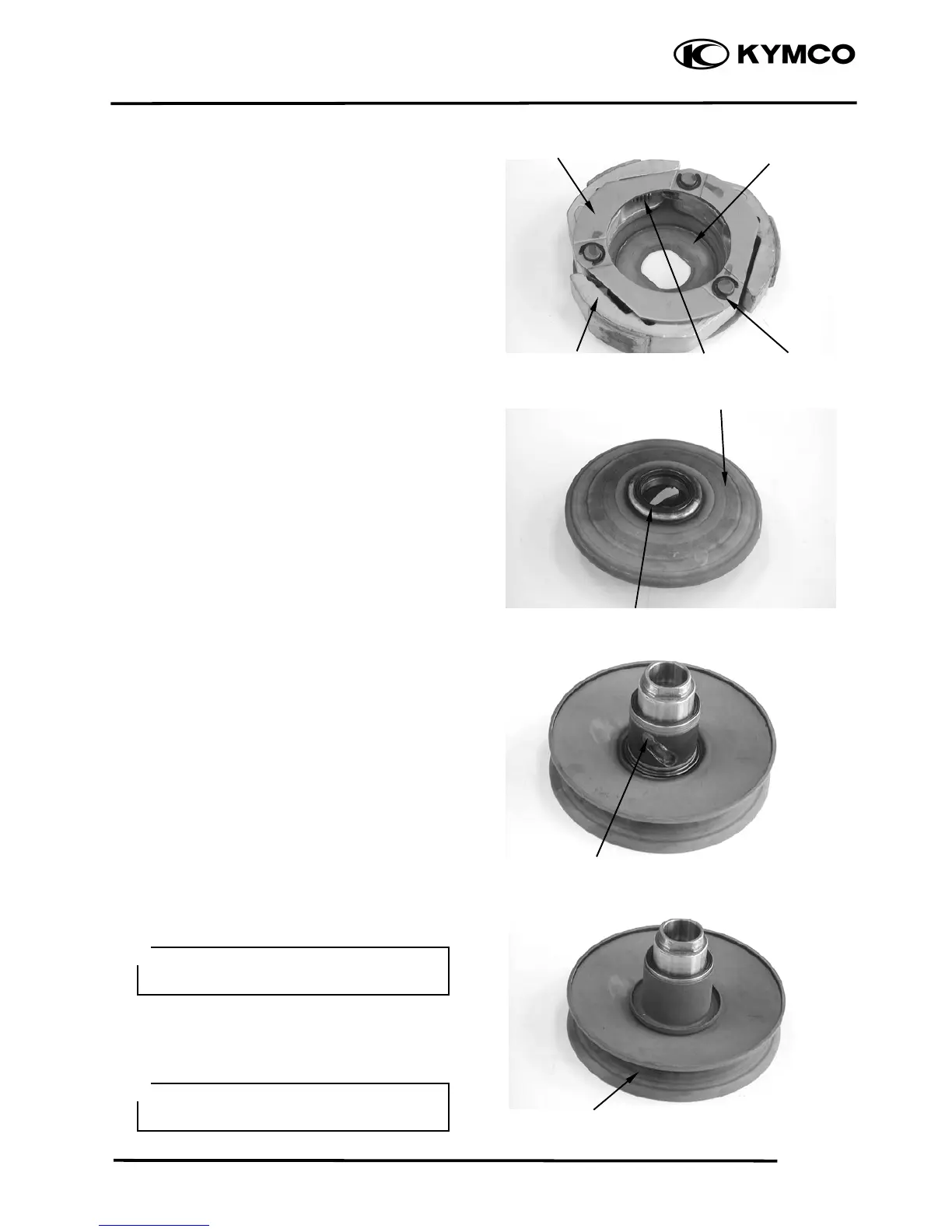

Install the damper rubbers on the drive plate
pins.
Install the clutch weights/shoes and clutch
springs onto the drive plate.
Install the retainer plate and secure with the
circlips.
CLUTCH/DRIVEN PULLEY ASSEMBLY
Clean the driven pulley faces and remove any
grease from them.
Install the oil seal onto the moveable driven
face.
Apply grease to the Oil seal and install them
onto the moveable driven face.
Install the movable driven face onto the
driven face.
Apply grease to the guide rollers and guide
roller pins and then install them into the holes
of the driven face.
Install the seal collar.
Remove any excessive grease.
Set the driven pulley assembly, driven face
spring and clutch assembly onto the clutch
spring compressor.
Retainer Plate
Drive Plate
Springs
Clutch Wei
g
hts/Shoes
Circlip
Movable Driven Face
Oil Seal
Guide Roller Pin
Driven Face
Be sure to clean the driven face off any
grease.

Align the flat surface of the
d
riven face
with the flat on the clutch drive plate.

