10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10-9
MX’er SYSTEM

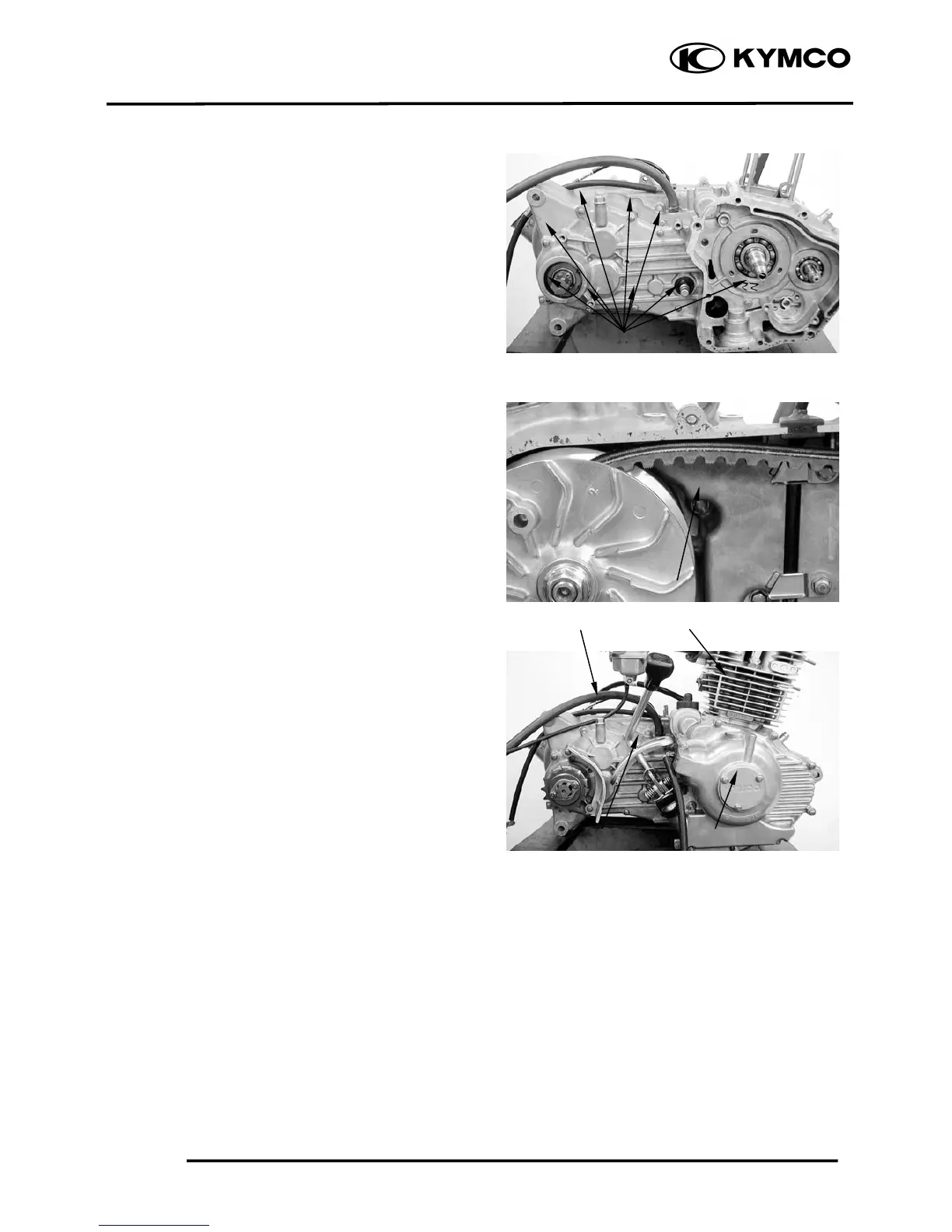

Install the dowel pins and a new gasket onto
the right crankcase.
Tighten the crankcase attaching bolts.
Torque: 0.81.2kgf-m
Tighten the left crankcase attaching bolt.
Install the shaft gear, balance gear, oil pump,
starter clutch and flywheel.
Install and tighten the right case cover bolt.
Install the shift gear spindle.
Install the cylinder.
Specified Gear Oil:
KYMCO SIGMA GEAR OIL 90#
Oil Capacity:
At disassembly : 0.4 liter
At change : 0.2 liter
Install and tighten the oil check bolt.
Torque: 0.81.2kgf-m
Bolts
Bolts
Cylinde
r
Oil Filler Bol
t
Shift Gear Spindle
Right Case Cove
r
