12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-17
MX’er SYSTEM

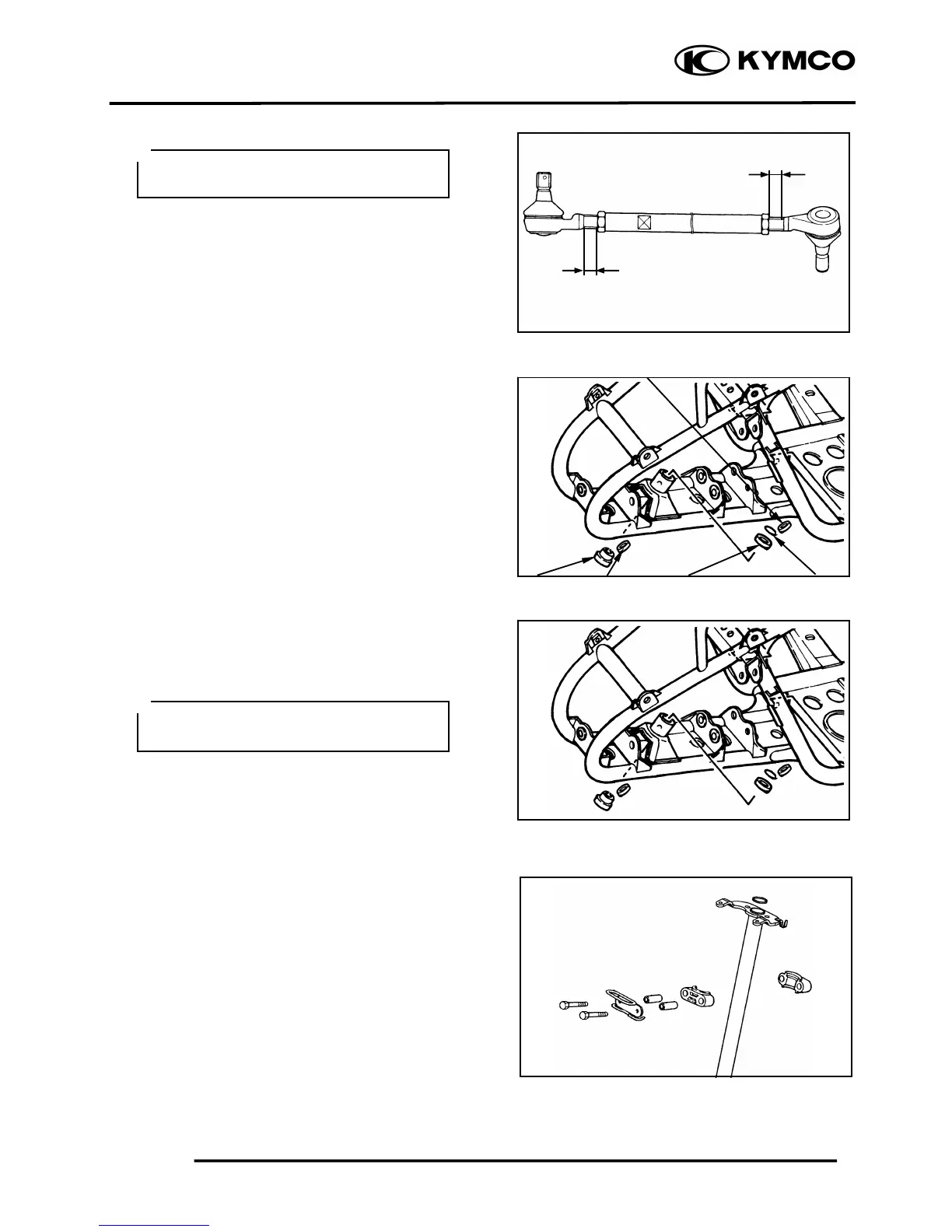

Inspect the collar, duty seal, snap ring and
bearing.
Replace if wear or damage.
INSTALLATION
Reverse the “REMOVAL” procedures.
Assembly the steering column and tighten
the two bolts.
Torque: 1.82.5kgf-m
Band the lock washer tabs.
The threads on both rod-end must be of
the same len
g
th.

Apply the grease onto the collar, duty
seal, and bearing.

Colla
r
Snap Ring
Bearing
Dust Seal
Dust Seal
