4. LUBRICATION SYSTEM
4-5
MX’er SYSTEM
Outer Roto
r
Outer Roto
r
Inner Roto
r
Pump Body
Screw

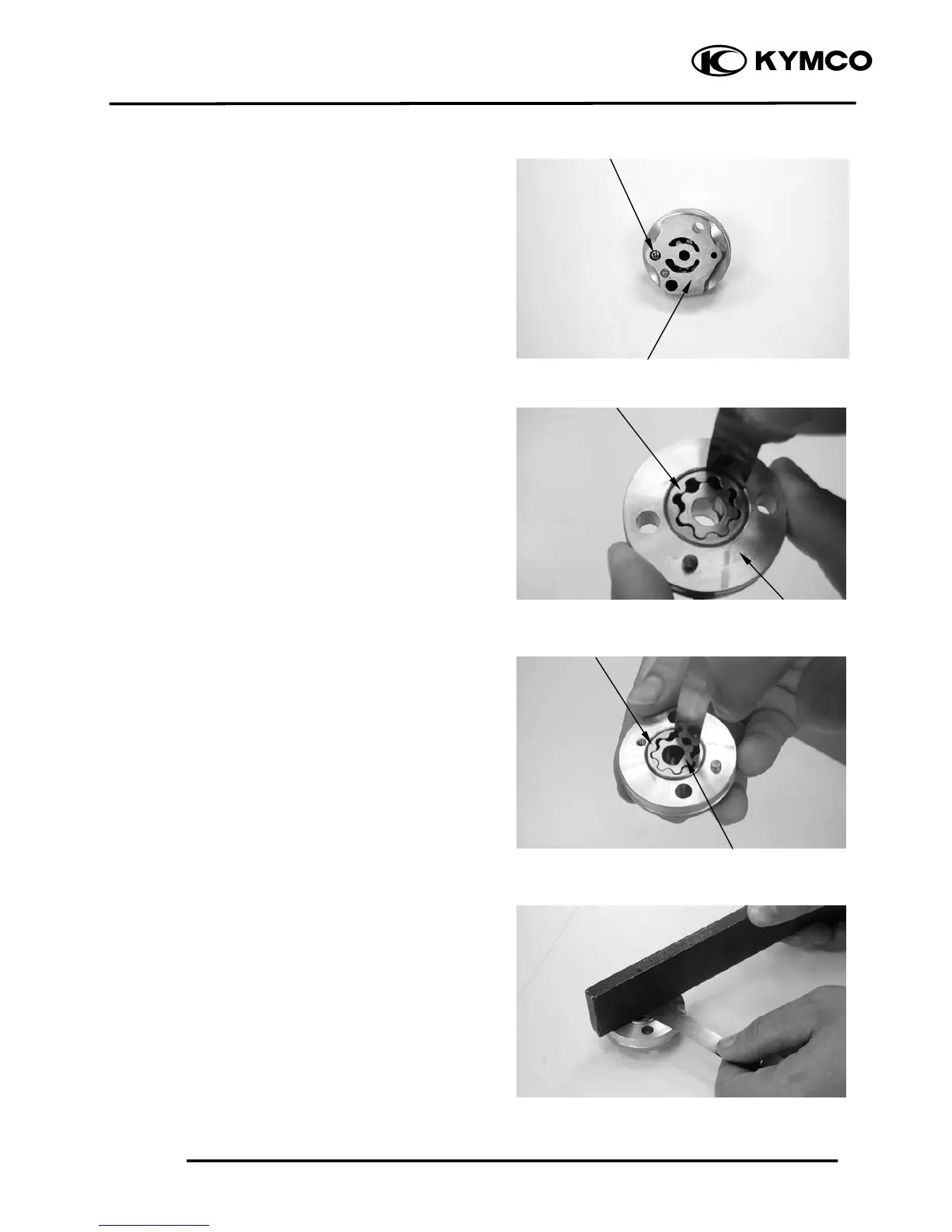

DISASSEMBLY
Remove the screw and disassemble the oil
pump.
INSPECTION
Measure the pump body-to-outer rotor
clearance.
Service Limit: 0.12mm
Measure the inner rotor-to-outer rotor
clearance.
Service Limit: 0.12mm
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.2mm
Pump Body
